ST STM8A-DISCOVERY User Manual

Hardware and layout UM1574
14/48 Doc ID 023645 Rev 1
4.2 STM8AF board dedicated resources
The STM8AF board is designed around the STM8AF5288T microcontroller in a 48-pin
LQFP package.
Figure 6 illustrates the connections between the STM8AF5288T and the different
peripherals (ST-LINK/V2, L99PM62GXP IC, push buttons, LED and connectors).
Figure 6 and Figure 7 help you locate these features on the STM8AF board.

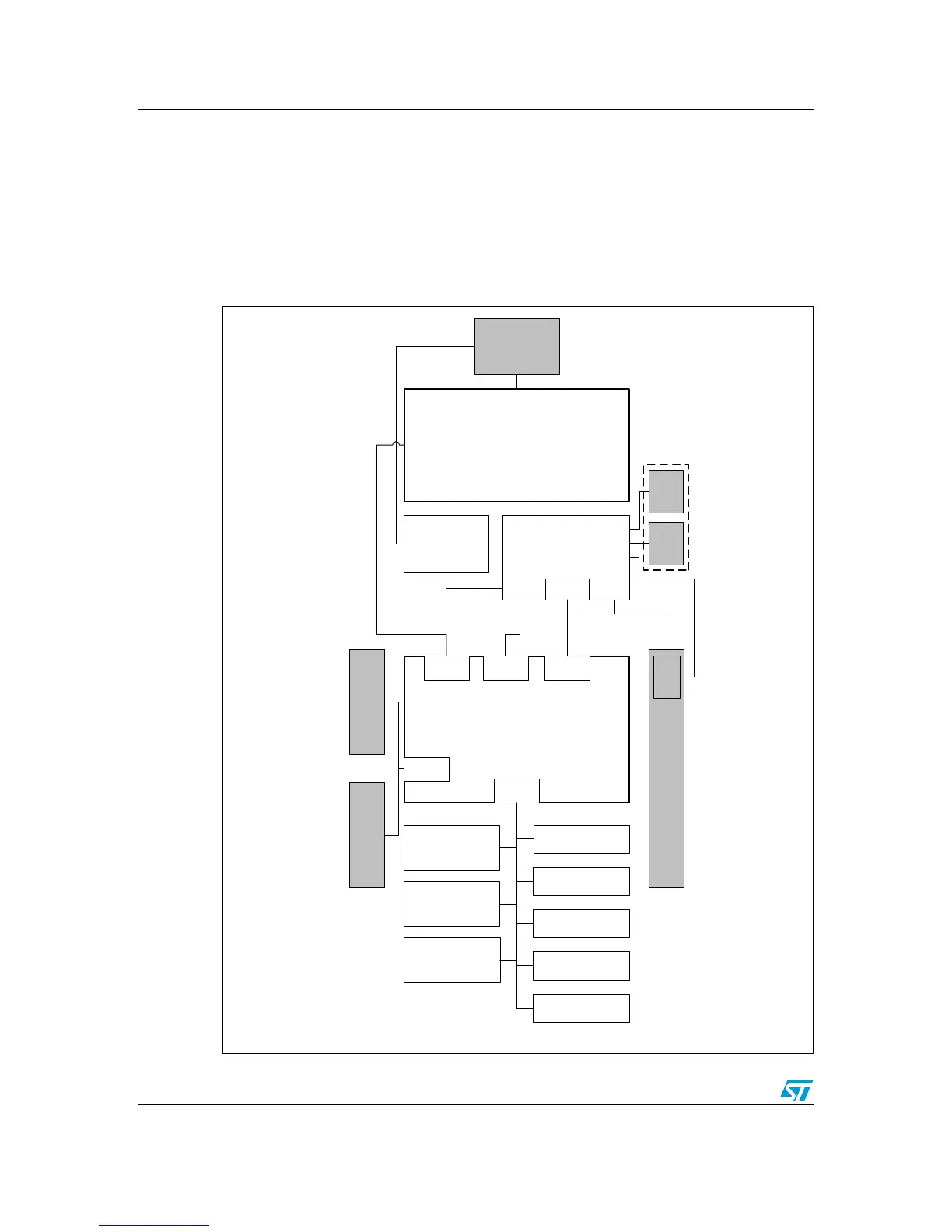

Figure 6. STM8AF board hardware block diagram
MS31074V1
Mini
USB
Embedded
ST-LINK/V2
DC/DC
converter
5V to 12V
USER1 button
USER2 button
P1 Header
Red LED LD3
Green LED LD4
Green LED LD5
STM8AF5288T
5V
I/O
L99PM62GXP
Power Management
LIN transceiver
5V
LIN
P3 Header
I/O
VBAT
SWIM SPI
P2 Header
CAN
Green LED LD6
Green LED LD7
RV1
potentiometer
CN3/CN4
