ST STM8A-DISCOVERY User Manual

UM1574 Hardware and layout
Doc ID 023645 Rev 1 23/48
4.3 STM8AL board dedicated resources
The STM8AL board is designed around the STM8AL3L68T microcontroller in a 48-pin
LQFP package.
Figure 11 illustrates the connections between the STM8AL3L68T and the different
peripherals (ST-LINK/V2, L99PM62GXP IC, push buttons, LED, I
DD
measurement circuitry,
LCD and connectors).
Figure 11 and Figure 12 help you to locate these features on the STM8AL board.

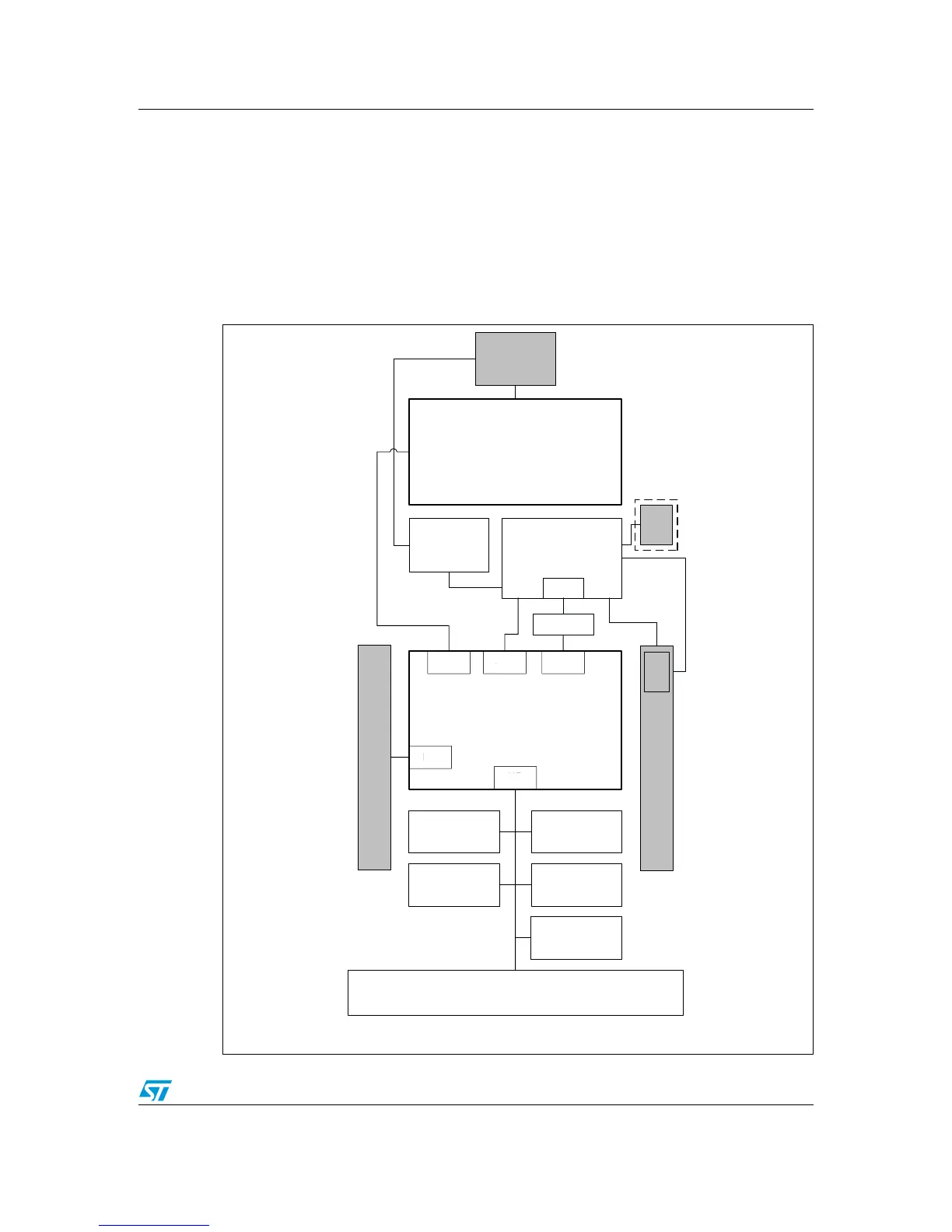

Figure 11. STM8AL board hardware block diagram
MS31075V1
Mini
USB
Embedded
ST-LINK/V2
DC/DC
converter
5V to 12V
5V to 3V3
USER1 button
USER2 button
LCD (16 segments, 4 commons)
P1 Header
Red LED LD3
Green LED LD4
IDD
measurement
3V3
I/O
L99PM62GXP
Power Management
LIN transceiver
5V
LIN
I/O
SWIM SPI
P2 Header
VBAT
CN3/CN4
3
V
3
I/O
I/O
S
WIM
S
PI
STM8AL3L68T
