UM0671 STM8Sxxx-TS1 daughterboard schematics
Doc ID 15330 Rev 4 21/23
Appendix A STM8Sxxx-TS1 daughterboard schematics

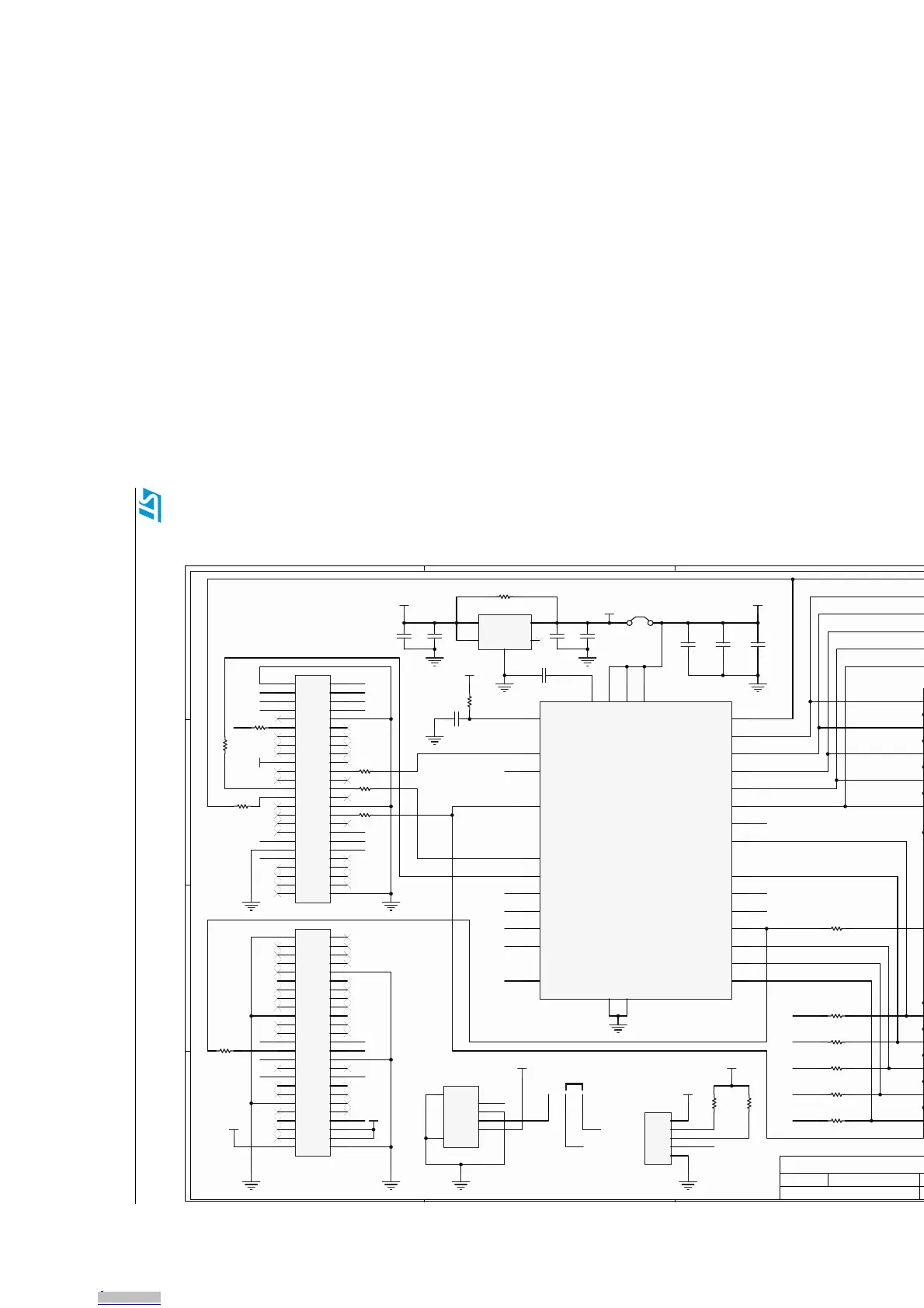

Figure 16. STM8Sxxx-TS1 daughterboard schematic diagram
1
STMicroelectronics
Microcontrollers Division
190, avenue Célestin COQ
13106 ROUSSET Cedex
FRANCE
1
STM8SxxxK-TS1 Daughter Board
MB836 C-01
06-Nov-09
Title:
Size: Reference:
Date: Sheet: of
A4 Revision:
W2
JUMPER
VDD
D5V
C1
100nF_X7R_0603
Vin
1
CE
3
GND
2
NC
4
Vout
5
U2
LP2980ABM3-TR
C7
100nF_X7R_0603
C8
2.2µF_X5R_0603
R1
0R_0603/DNF
C5
100nF_X7R_0603
C6
1µF_X5R_0603
C2
100nF_X7R_0603
C4
100nF_X7R_0603
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
J4
Header 25X2
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
J1
Header 25X2
+3.3V
D5V
PD0
PD2
PD4
PD6
PA1
PE5
PB0
PB1
PB3
PB2
PD3
PD5
PD1
D5V
RST
PA2
I²C SDA
I²C SCL
PB3
PB2
PB1
PB0
PE5
VDD
R4
10K_1%_0603
R11
3.3M_1%_0603
R12
10K_1%_0603
R9
3.3M_1%_0603
R10
10K_1%_0603
R7
3.3M_1%_0603
R8
10K_1%_0603
R5
3.3M_1%_0603
R6
10K_1%_0603
R2
3.3M_1%_0603
R3
10K_1%_0603
1
K1
R33
10K_1%_0603
1
K2
R29
10K_1%_0603
1
K3
R26
10K_1%_0603
1
K4
R23
10K_1%_0603
1
K5
R35
10K_1%_0603
PC7
PC5
PC6
PC3
PC2
PC1
PD5
PD4
PD3
PD2
PD6
R20
0R_603/DNF
PD0
SWIM
VDD
1
SWIM
2
GND
3
RST
4
GND
G1
GND
G2
J5
SWIM
RST
VDD
1 2 3
W1
JUMPER 3 POS
SWIM
PD1
1
2
3
4
5
J6
Header 5
I²C SCL
I²C SDA
PA1
VDD
R17
0R_0603
PC6
PC3
PC1 PC2
PC5
PC7
PA2
RST
1
PA1/OSCIN
2
PA2/OSCOUT
3
VSS
4
VCAP
5
VDD
6
VDDIO_1
7
PF4/AIN12
8
VDDA
9
VSSA
10
PB5/AIN5
11
PB4/AIN4
12
PB3/AIN3
13
PB2/AIN2
14
PB1/AIN1
15
PB0/AIN0
16
PE5/SPI_NSS
17
PC1/TIM1_CC1
18
PC2/TIM1_CC2
19
PC3/TIM1_CC3
20
PC4/TIM1_CC4
21
PC5/SPI_SCK
22
PC6/SPI_MOSI
23
PC7/SPI_MISO
24
PD0/TIM3_CC2
25
PD1/SWIM
26
PD2/TIM3_CC1
27
PD3/TIM3_CC2
28
PD4/TIM2_CC1/BEEP
29
PD5/LINUART_TX
30
PD6/LINUART_RX
31
PD7/TLI
32
U1 STM8S208K3T
R22
1M_1%_0603
R24
1M_1%_0603
R27
1M_1%_0603
R31
1M_1%_0603
R34
1M_1%_0603
VDD
VDD_MCU
1 2 3 4 5 6
J2 Header 6
1 2 3 4 5 6
J3 Header 6
C10
1nF_X7R_0603
R46
0R_0603
R47
0R_0603/DNF
Shield
Shield
Shield
R14
0R_0603/DNF
R15
0R_0603/DNF
R16
0R_0603/DNF
R18
0R_0603/DNF
R19
0R_0603/DNF
R21
0R_0603/DNF
R25
0R_0603/DNF
R28
0R_0603/DNF
R30
0R_0603/DNF
R32
0R_0603/DNF
RST R41
0R_0603
R44
0R_0603/DNF
R42
0R_0603
R43
0R_0603
1
2
3
4
5
S1
Slider
R45
0R_0603
R38
0R_1%_0603
SH_DRV
SH_DRV
R39 0R_0603/DNF R40 0R_0603/DNF
R37
4.7K_1%_0603/DNF
R36
4.7K_1%_0603/DNF
R13
10K_1%_0603
LOAD
C3
10nF_X7R_0603
C9
680nF_X5R_0603
