ST STM8S User Manual

UM0671 Evaluation kit board settings
Doc ID 15330 Rev 4 13/23
3.2 STM8S2xx evaluation motherboard settings

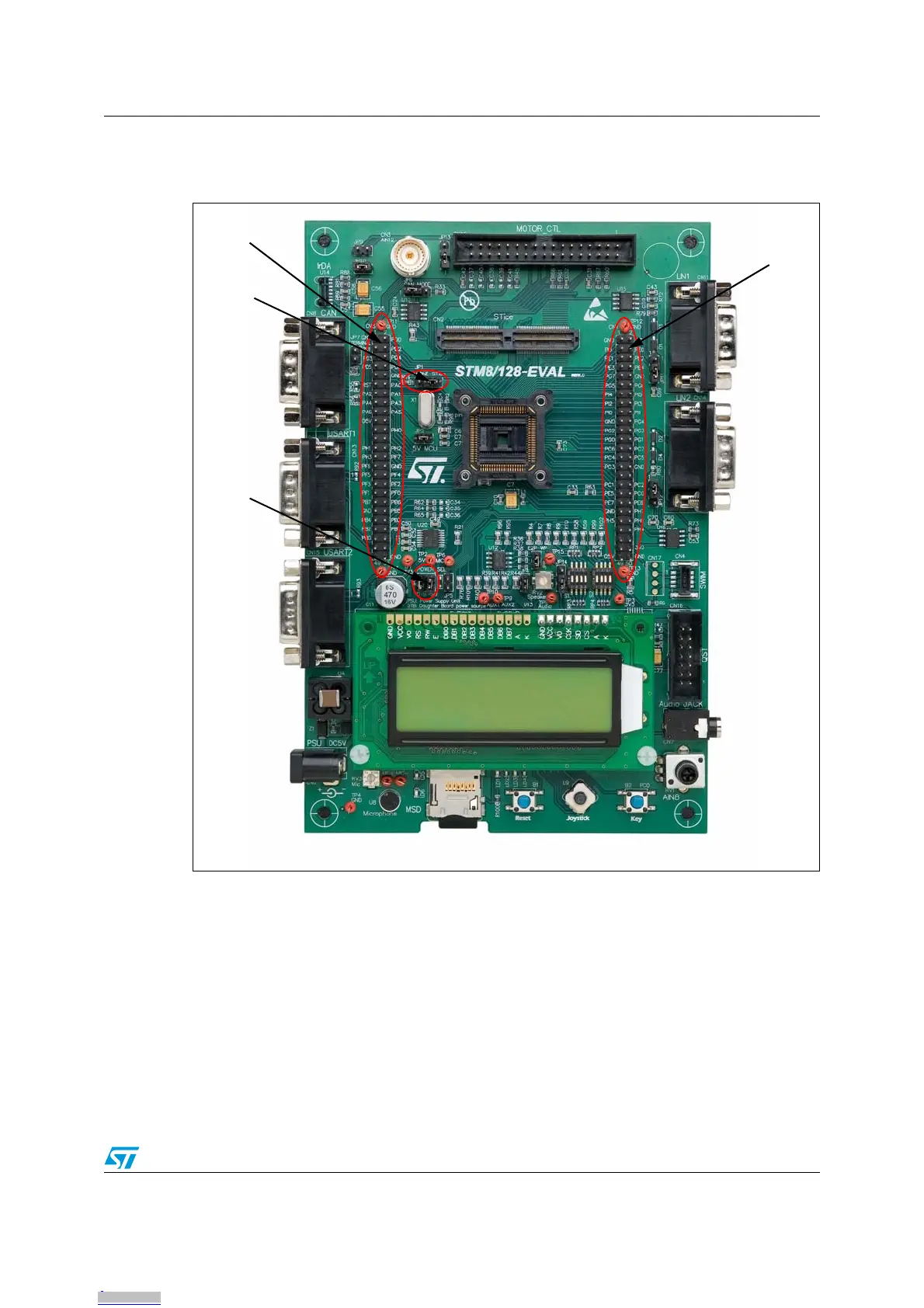

Figure 7. TS motherboard overview
When using the STM8S TS daughterboard assembled with the STM8/128-EVAL (mother)
board, the following settings must be implemented:
● To maintain STM8S TS daughterboard MCU functionality, the Reset Source (JP1)
jumper must be set to the “STice” position (Table 8) on the STM8/128-EVAL board.
● To supply power from the supply jack (CN6) to both mother and daughterboards
connected on connectors CN5 and CN1:
– On STM8S TS daughterboard, connect both pins on jumper W2 (Section 3.1.3).
– On STM8/128-EVAL board, set jumper JP3 as shown in Table 8. (STM8S TS
daughterboard must have not its own power supply connected.)
For more information about the STM8/128-EVAL board, please refer to UM0482: STM8/128-
EVAL evaluation board user manual.
CN5 header
Joystick
LCD display
Reset
Jumper JP3
CN1 header
Power supply
Jumper JP1
