Getting started with the touch sensing evaluation kit UM0671
4/23 Doc ID 15330 Rev 4
2 Getting started with the touch sensing evaluation kit
2.1 Evaluation kit contents
The STM8S touch sensing evaluation kit (STM8/128-EV/TS) contains:
● STM8S touch sensing evaluation daughterboard (STM8Sxxx-TS1)
● STM8/128-EVAL board
● AC/DC power supply and its AC adaptors
● MCU selection guide
● User manual (this document)
IMPORTANT: The STM8 TS library, STM8 Toolset, STM8S firmware library and related
documentation are available at www.st.com/touch-sense-sw-lib
2.2 Using the evaluation kit
After connecting the motherboard to the mains supply, the evaluation kit is ready for use.
Just use the joystick to navigate through the menu options as described in Section 2.3: User
interface.
The evaluation firmware enables the user to quickly evaluate the main features of the touch
sensing library.

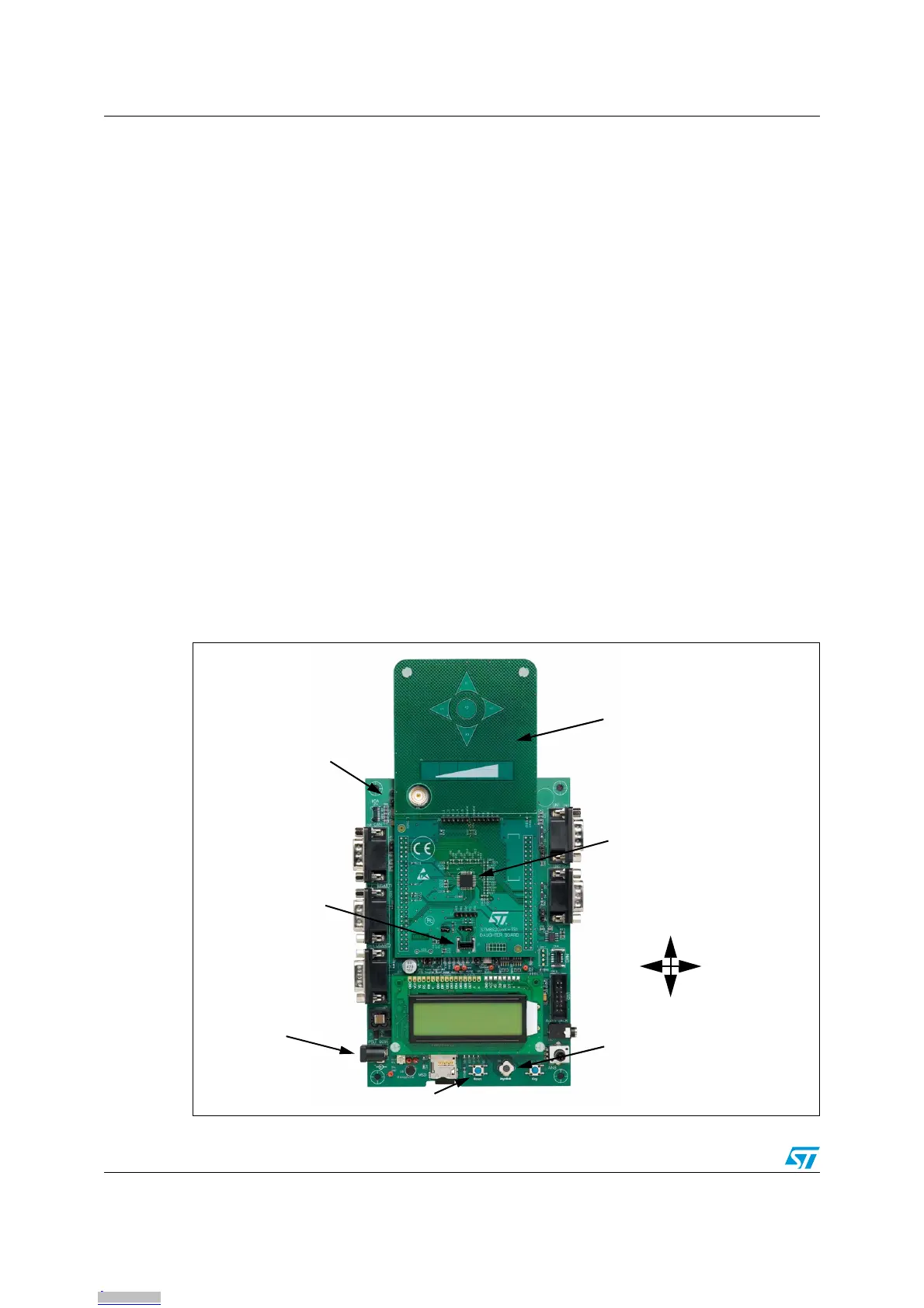

Figure 2. TS evaluation kit assembly
Daughterboard
Motherboard
Pre-programmed
STM8S sample
SWIM connector
Joystick
Reset
Power supply
LCD display
Exit sub-menu
Enter sub-menu
Scroll right
Scroll left
