Stabila LD 520 - Height-profile measurement

LD 520
19
ENFunctions
Height-profile measurement
1
2
REF
0

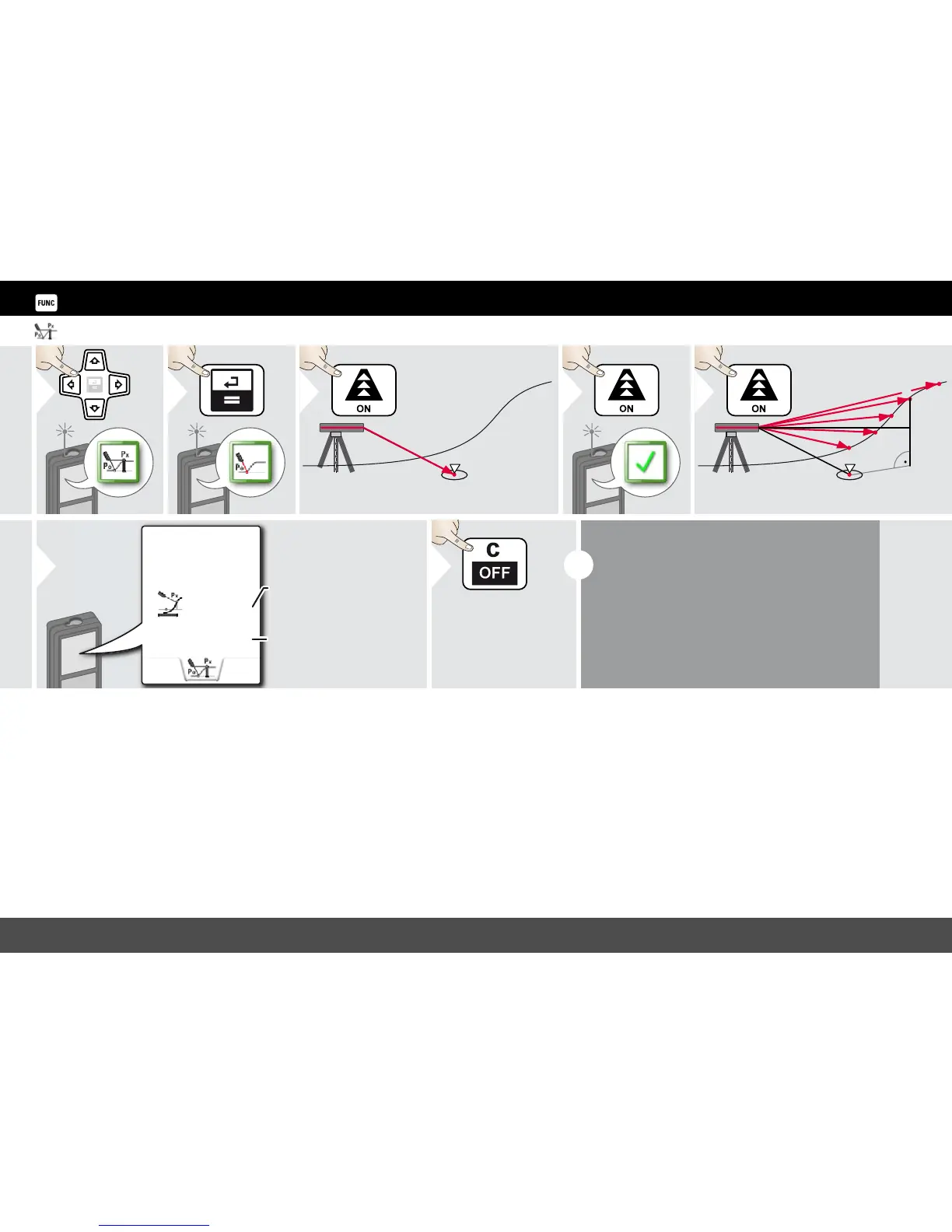

Aim at reference point (REF).
3
4
REF
1
0
2
3
4
5
h
d
Aim at additional points 1-x.
5
d
h
2.042 m
0.054 m
Horizontal distance to
device
Height difference to
reference point (REF).
6
Exit function.
7
2x
i
Ideal for measuring of height differences to a
reference point. Can be also used to meas-
ure profiles and terrain sections. After meas-
uring the reference point, the horizontal
distance and height is displayed for each fol-
lowing point.
