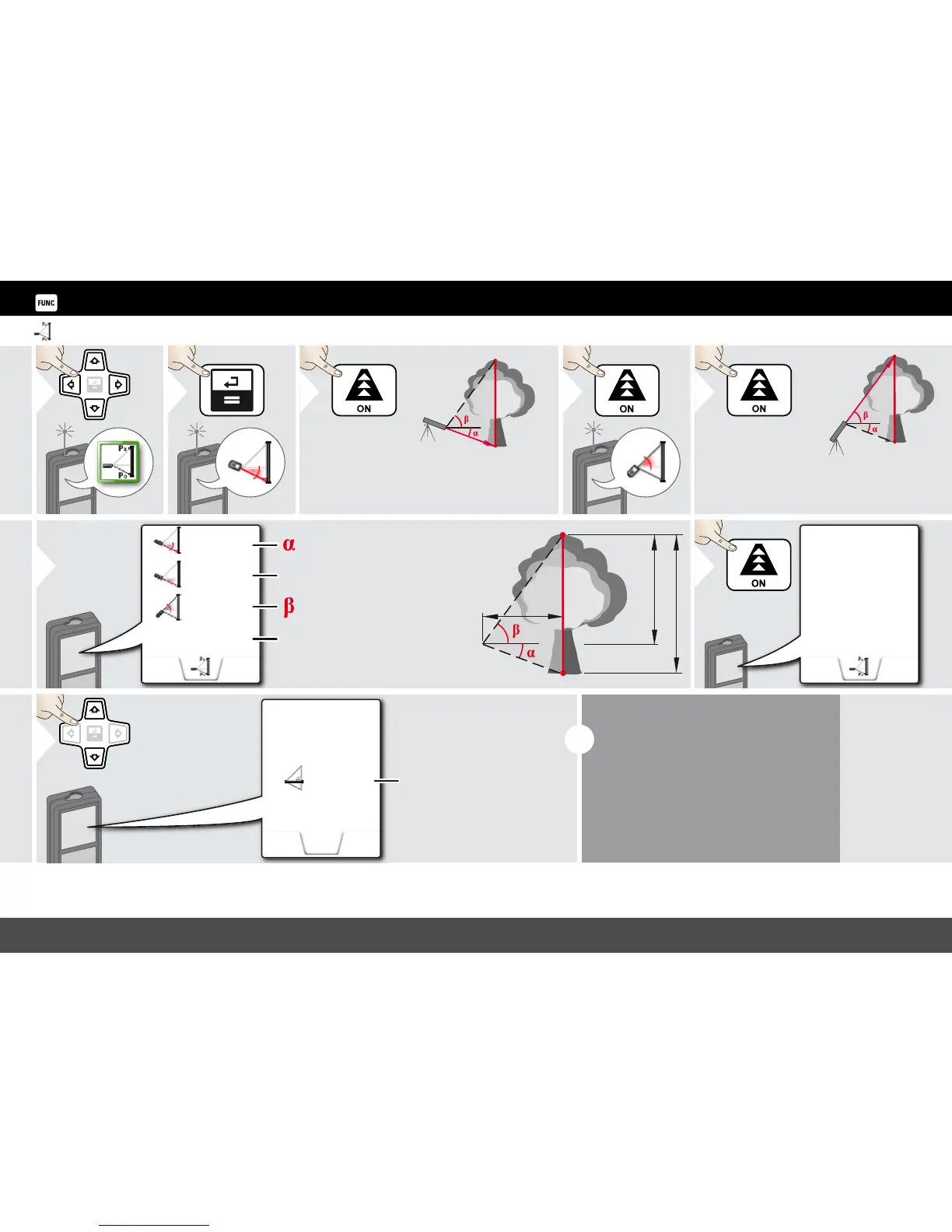

Height tracking
1
2
P0
Px
Aim laser at lower point.
3
4
P0
Px
Aim laser at upper points and angle/
height tracking starts automatically.
5
x
y
P0
y
29.89 °
6.271 m
-10.55 °
3.475 m
P0
Px
z
6
= Tracking height if device is
turned on tripod
= Tracking angle if device is
turned on tripod
44.80 °
6.271 m
-10.55 °
8.478 m
7
Stops height
tracking.
z
7.160 m
8
Use Up/Down
navigation keys to
show more re-
sults. Switch off
Pointfinder if acti-
vated.
i
Heights of buildings or trees without
suitable reflective points can be deter-
mined. At the bottom point, distance
and tilt is measured - which needs a re-
flective laser target. The upper point
can be targeted with the pointfinder /
crosshair and does not need a reflec-
tive laser target as only the inclination is
measured.
