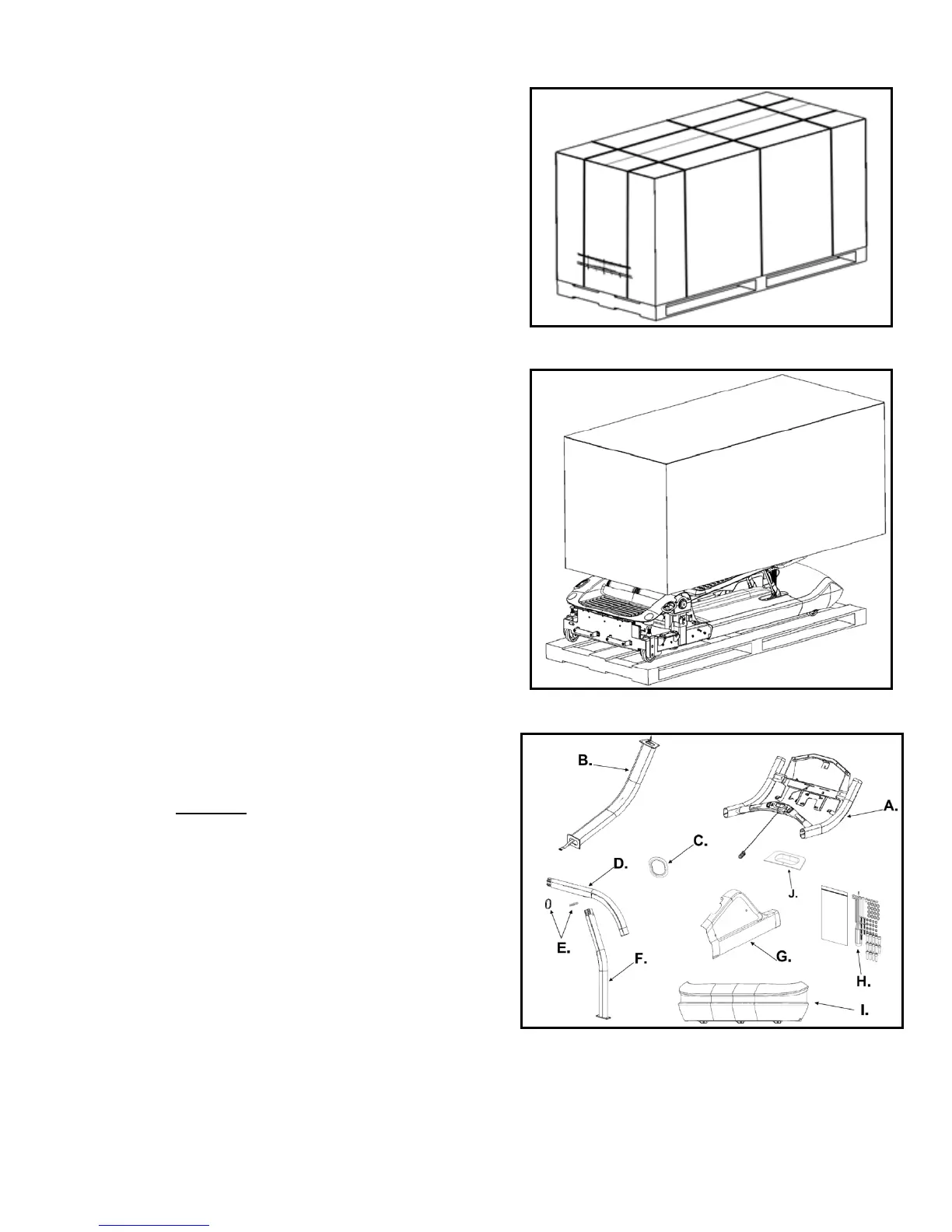

Stairmaster TreadClimber - Assembly Instructions; Hardware and Step-by-Step Assembly

1. Locate an open area to unbox the packaged
TreadClimber
®
(Fig.1).
Fig. 1
2. Cut all straps to remove the cardboard packaging
along with any protective wrapping to expose the
palletized TreadClimber
®
base (Fig. 2).
Fig. 2
3. Move all unattached components off the
TreadClimber
®
base (Fig. 3).
Hardware:
A. Console Frame
B. Neck Mast
C. Handrail Grommets
D. Upper Handrails (Left & Right)
E. Handrail Beauty Rings
F. Lower Handrails (Left & Right)
G. Rear Corner Shroud (Left & Right)
H. Hardware Pack
I. Rear Shroud
J. Neck Grommet
Fig. 3
ASSEMBLY INSTRUCTIONS
21
