Stairmaster TreadClimber - Page 22

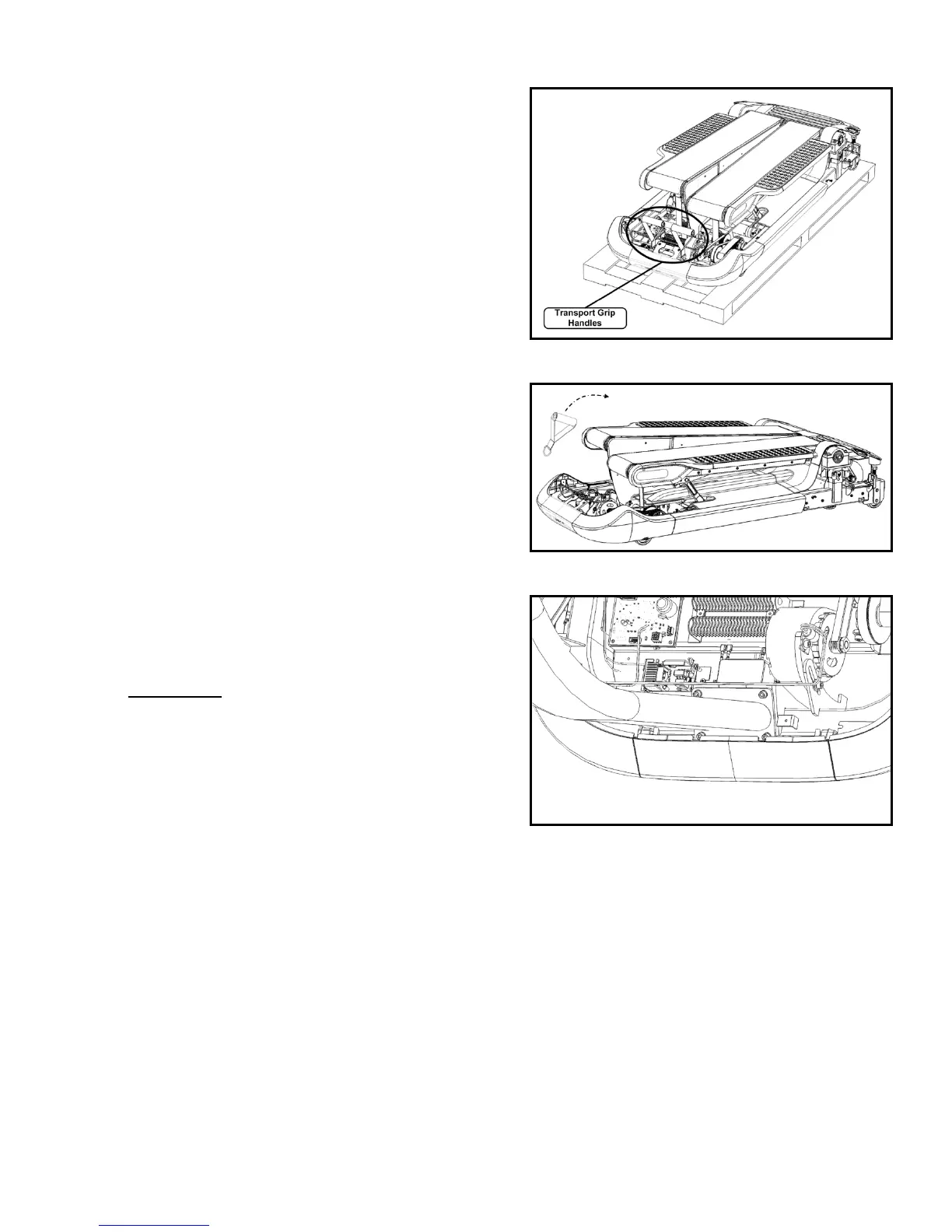

4. To move the TreadClimber
®
off the pallet; remove the
alternator shroud to expose the transport grip
handles. With two people and each gripping a handle;
drive the base off the rear of the pallet (Fig. 4).
Fig. 4
5. Remove and store the transport grip handles (Fig. 5)
once the TreadClimber
®
base is safely on the floor. The
transport grip handles can be reattached for future
transport.
Fig.5
6. Mount the neck mast (Fig. 6) to the base by lightly
torquing four socket head cap screws in place at the
front of the base frame.
Final Torque:
o 240 In-Lbs (27 Nm)
Fig. 6
22
