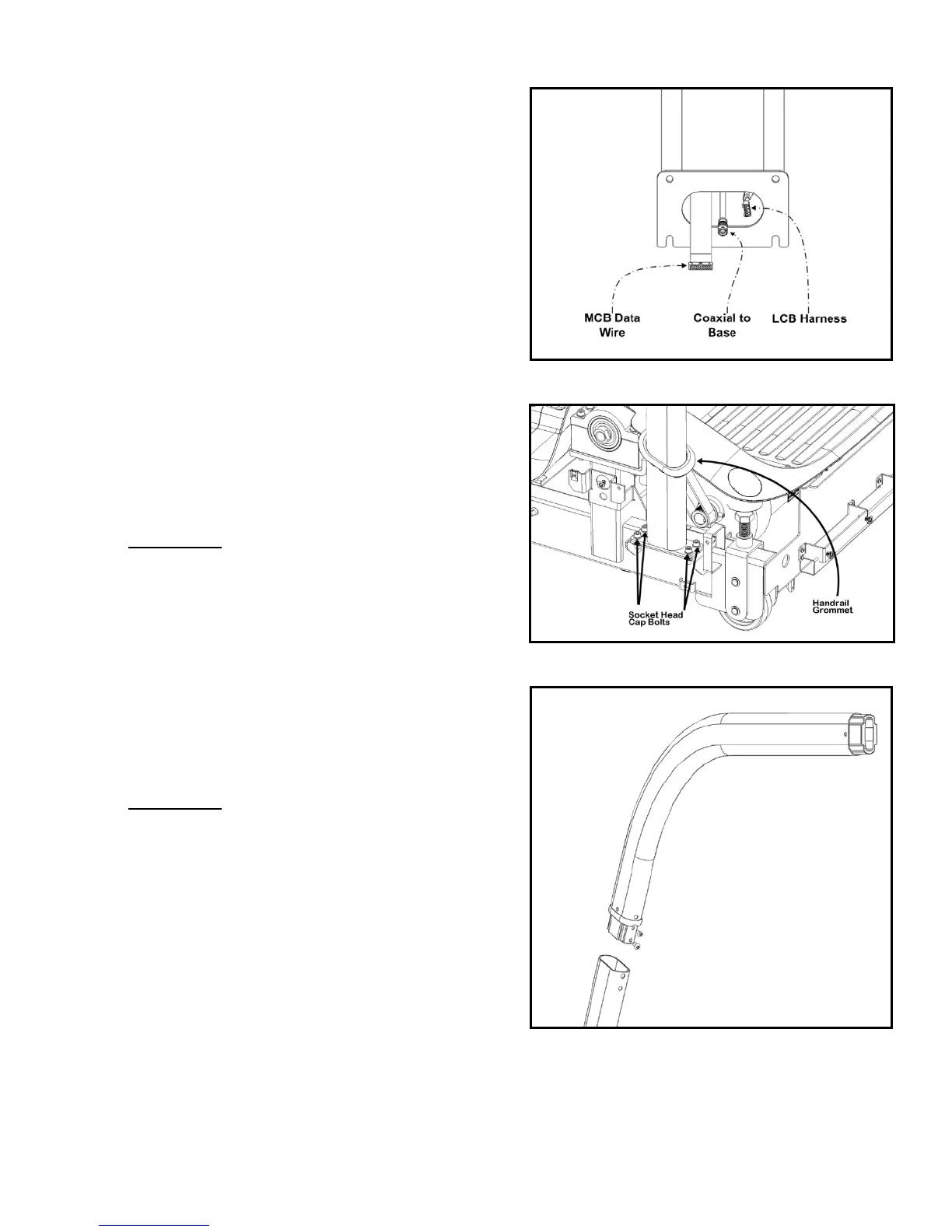

7. Connect the cables extruding through the lower
section of the neck mask into the corresponding
locations on the lower base (Fig. 7).
Fig. 7
8. Mount the left & right lower handrail sections to the
TreadClimber
®
base and loosely thread four socket
head cap bolts to each handrail mount (Fig. 8) along
with sliding on the corresponding left & right handrail
grommets into place.
Final Torque:
o 240 In-Lbs (27 Nm)
Fig. 8
9. Slide a beauty ring onto each lower handrail section
(Fig. 9) and mount the upper handrail by loosely
threading two button head cap screws in place. Verify
that the radius cutout clears the lower securing screw.
Final Torque:
o 35 In-Lbs (4.0 Nm)
Fig. 9
