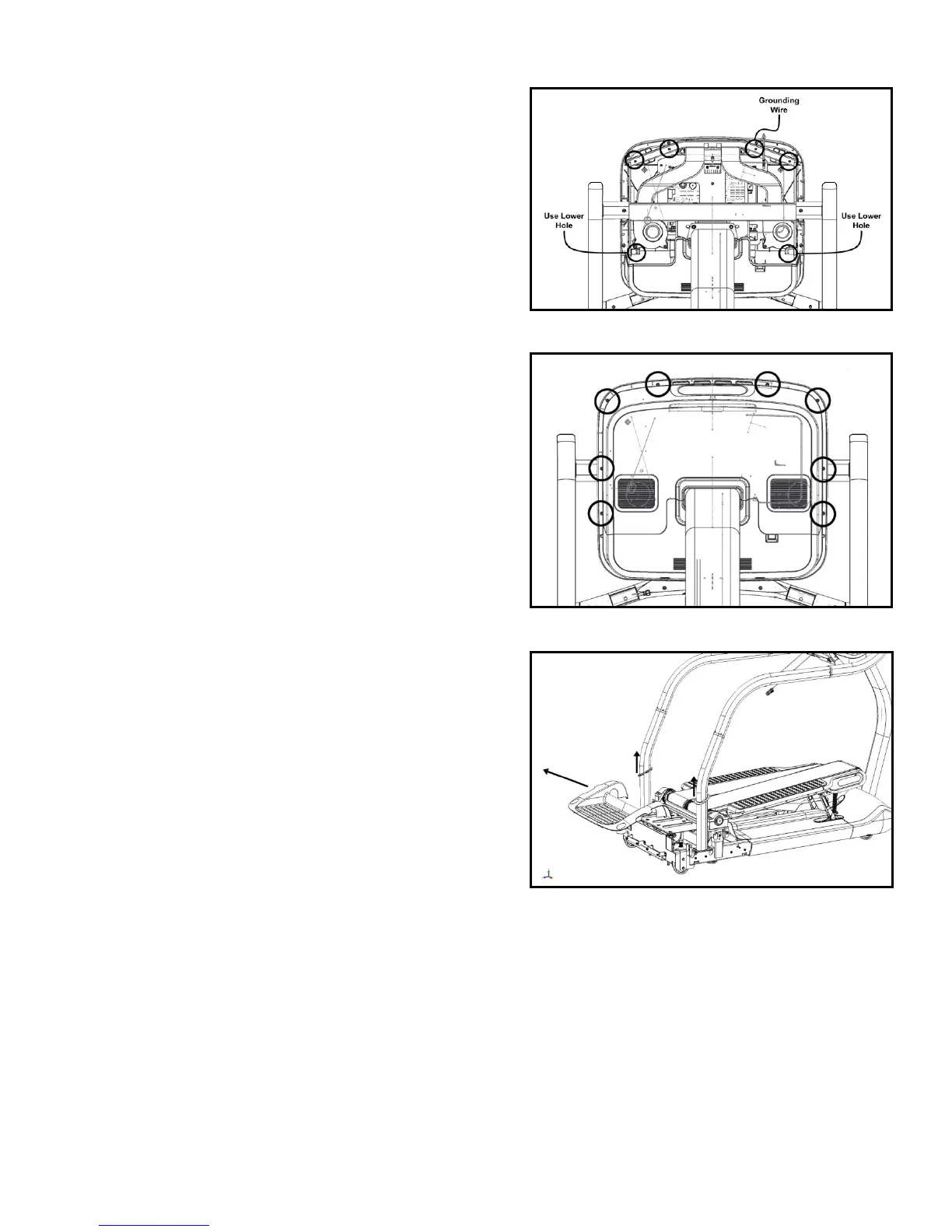

19. Secure the display to the console frame by installing
six phillips head screws with washers (Fig. 18) at the
corresponding circled locations (Fig. 20).
Fig. 20
20. Mate the back shroud of the display with the rest of
the assembly by installing eight phillips head screws at
the corresponding circled locations (Fig. 21).
Fig. 21
21. Dislodge the rear step shroud from the TreadClimber
®
base (Fig. 22) and move the handrail grommets up the
handrails.
Fig. 22
