EX5500 Controller Installation & Configuration Guide
20

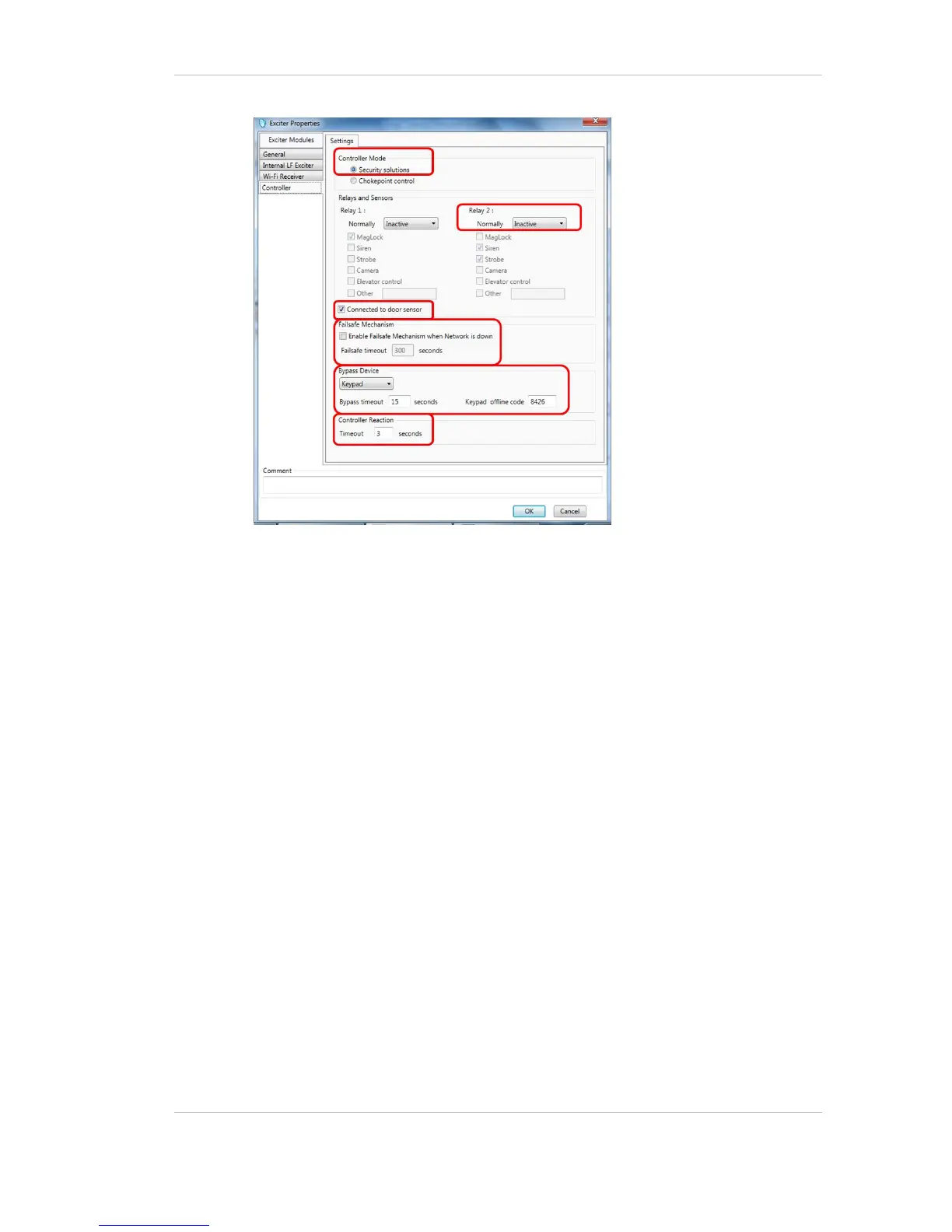

Controller Mode
a. Select Security solutions for Hugs tags only. Select Chokepoint control for
other deployments.
Relays and Sensors
a. Select the Normally state of Relay 1 and Relay 2 as either Active or Inactive.
If a relay is connected to a door Maglock, the normally active relay
configuration would match the door that is normally locked.
b. For the Active and Inactive Relay(s) select the trigger response(s) required, by
checking the corresponding trigger device box.
c. Check the box Connected to door Sensor as required. (The Exciter sends
SNMP traps to MobileView when the door is open and closed)
Failsafe Mechanism
a. Select the Enable failsafe… option to allow the Exciter to monitor the network
status.
b. Enter a time lapse period in seconds, in the Failsafe Timeout field.
If a network connection is not registered within this period the failsafe
mechanism is triggered and the connected trigger device is disabled.
Bypass Device
An override option exists on secure doors. In the event of system activation the
timeout function disables the override function for a specified time.
a. Select the override device from the drop down list.
b. Set the offline code.
