18 ► MB05 User Manual
NEW REJECT LIMIT
LOWER BUSHING (Item 32)
2.650 in. / 67.3 mm 2.760 in. / 70.1 mm
TOOL STOP (Item 31)
A) 2.650 in. / 67.3 mm
Inside Diameter
A) 2.760 in. / 70.1 mm
Inside Diameter
B) .400 in. / 10.1 mm Depth B) .280 in. / 7.1 mm Depth
RETAINER PIN (Item 35)
1.595 in. / 40.5 mm Out-
side Diameter
1.510 in. / 38.3 mm Outside
Diameter
PISTON
(Item 18)
.450 in. / 11.4 mm Depth .410 in. / 10.4 mm
LOWER BUSHING
TOOL STOP
RETAINER PIN
PISTON
Wear Limit
New Part
To increase the life of the lower bushing, remove the bushing after normal wear has devel-
oped and rotate the bushing 90° and lock into the second slot. Normal wear on the bushing
is usually found from front to back, by rotating the bushing 90° will add additional life to the
bushing. In addition to rotating the bushing, it is also symmetrical and can be ipped end
to end and again rotated 90° resulting in even longer life.
IMPORTANT
90° SLOT ROTATION
To increase the life of the tool stop, remove the tool stop after normal wear has developed
and rotate the tool stop 90° and lock into the second slot. Note: the tool stop is not sym-
metrical and can not be ipped from end to end.
LOWER BUSHING
TOOL STOP
Measure at Center
Wear Areas
C = Measure at 1.2in./30mm C
A
B
Measure Diameter
Wear Limit
New Part

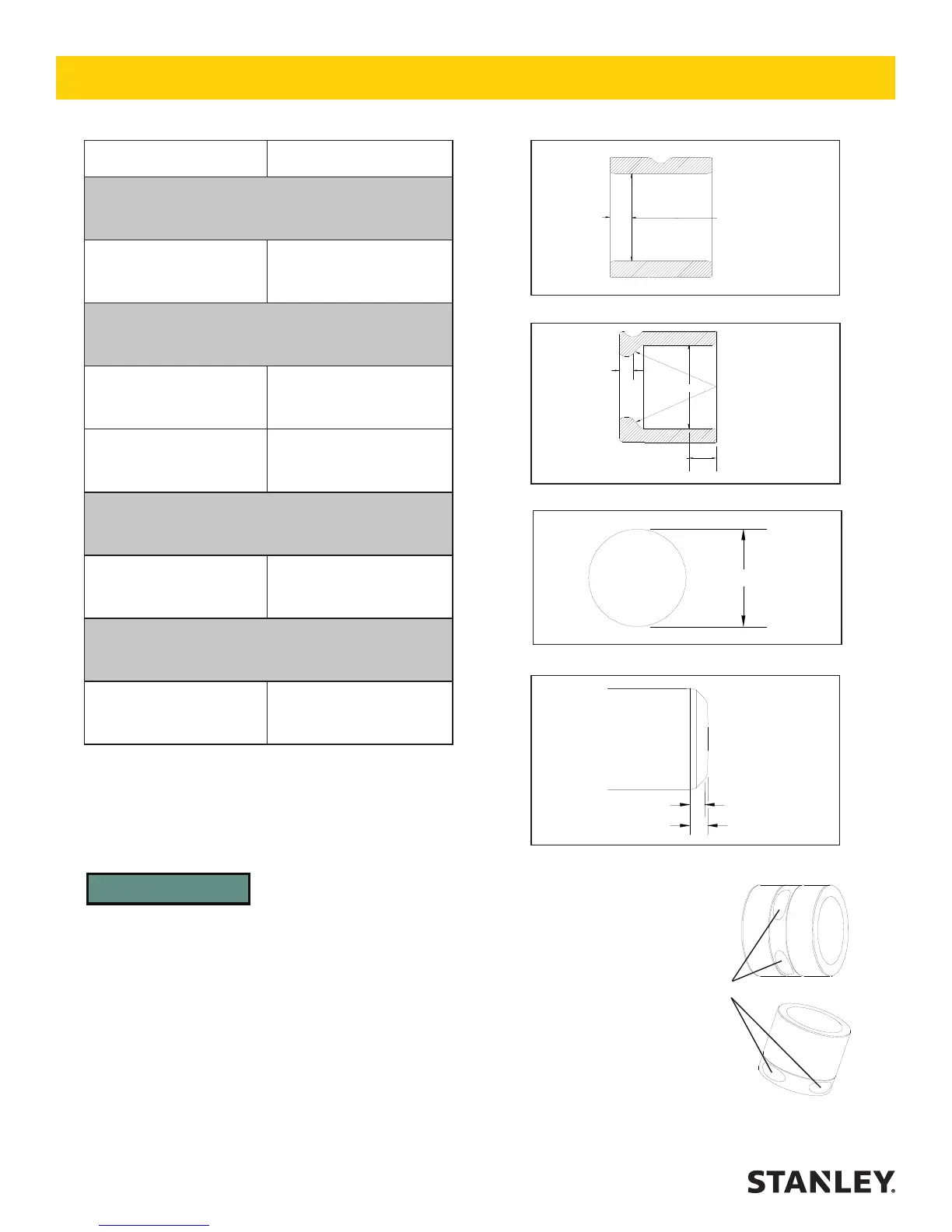

WEAR TOLERANCES
