Stanley MB05 User Manual

32 ► MB05 User Manual
D
C
B
A
D
C
B
A
1
3
45
678
12
34
56
78
2
NOTES:
HYDRAULIC
TOOLS
NOTE: ALL DIMENSIONS ARE GIVEN IN INCHES AND
DEFINE THE FINISHED PART. TOLERANCES AND SURFACE
ROUGHNESS IS SPECIFIED BELOW (EXCEPT AS NOTED):
WEIGHT: LBS
804.9
SCALE:
0.150
CONFIDENTIAL - THIS DOCUMENT AND ALL
INFORMATION CONTAINED HEREIN IS THE
PROPERTY OF THE STANELY WORKS AND MAY
NOT BE DISCLOSED TO UNAUTHORIZED
PERSONS OR REPRODUCED BY ANY MEANS, OR
USED FOR ANY PURPOSE OTHER THAN THAT
SUBMITTED WITHOUT EXPRESS WRITTEN
PERMISSION FROM THE STANLEY WORKS.
DECIMALS +/-.020
ANGLES +/-1°0'
BREAK ALL SHARP EDGES:
.010 R. MAX OR .010 x 45°
SURFACE ROUGHNESS: 125
TITLE:
MB05S04
FINAL ASSEMBLY
SHEET:
1 OF 1
SIZE:
D
DATE:
04/15/16
REVISION:
9
PART NUMBER:
70767S04SS
ITEM
PART
NO
QTY. DESCRIPTION
1 02773 4 ADAPTER 12 F50X
2 20876 20 WASHER 5/8" I.D.
3 40092 1 COUPLER F.F. MALE
4 47351 1 DECAL, COMPOSITE WARNING
5 47352 2 DECAL, LIFT POINT
6 65811 1 COUPLER F.F. FEMALE
7 66218 1 GUARANTEED SOUND POWER LEVEL
8 66764 1 DECAL, USA ORIGIN 3"
9 69863 1 TOOL BIT, CONICAL
10 69869 1 POWER CELL
11 70749 10 HHCS 5/8-11UNC X 2.500
12 70753 2 DECAL, "MB05"
13 70754 1 DECAL, NITROGEN 200 PSI
14 70759_3 1 HOSE 451TC-06-06-12-12-12-100" W/SL
15 70759_4 1 HOSE 451TC-06-06-12-12-12-100" W/SL
16 70760 1 C&P027 MOUNTING BRKT
17 70795 1 MB05 MANUAL, USERS (NOT SHOWN)
18 70972 1 DECAL, GREASE
19 71457 4 SIDE PLATE BOLT
20 71458 4 WASHER
21 72499 4 NYLOCK NUT 3/4-16UNF
22 73350 1 CP027 SS COMBO BRACKET
23 74405 1 SIDE PLATE, LEFT
24 74406 1 SIDE PLATE, RIGHT
25 74704 1 DECAL, CE MB05 SKID STEER
26 74705 2 DECAL, "STANLEY" 11 INCH
27 74707 1 DECAL, "STANLEY", 8.5 INCH
28 371507 10 NYLOCK NUT 5/8-11UNC
REV. BY DATE PCRN# DESCRIPTION
1 INITIAL RELEASE
1
2
3
6
11
15
16
22
27
28
1
2
12
13
14
DRAWN BY:
JM
COATING CODE: MATERIAL CODE:

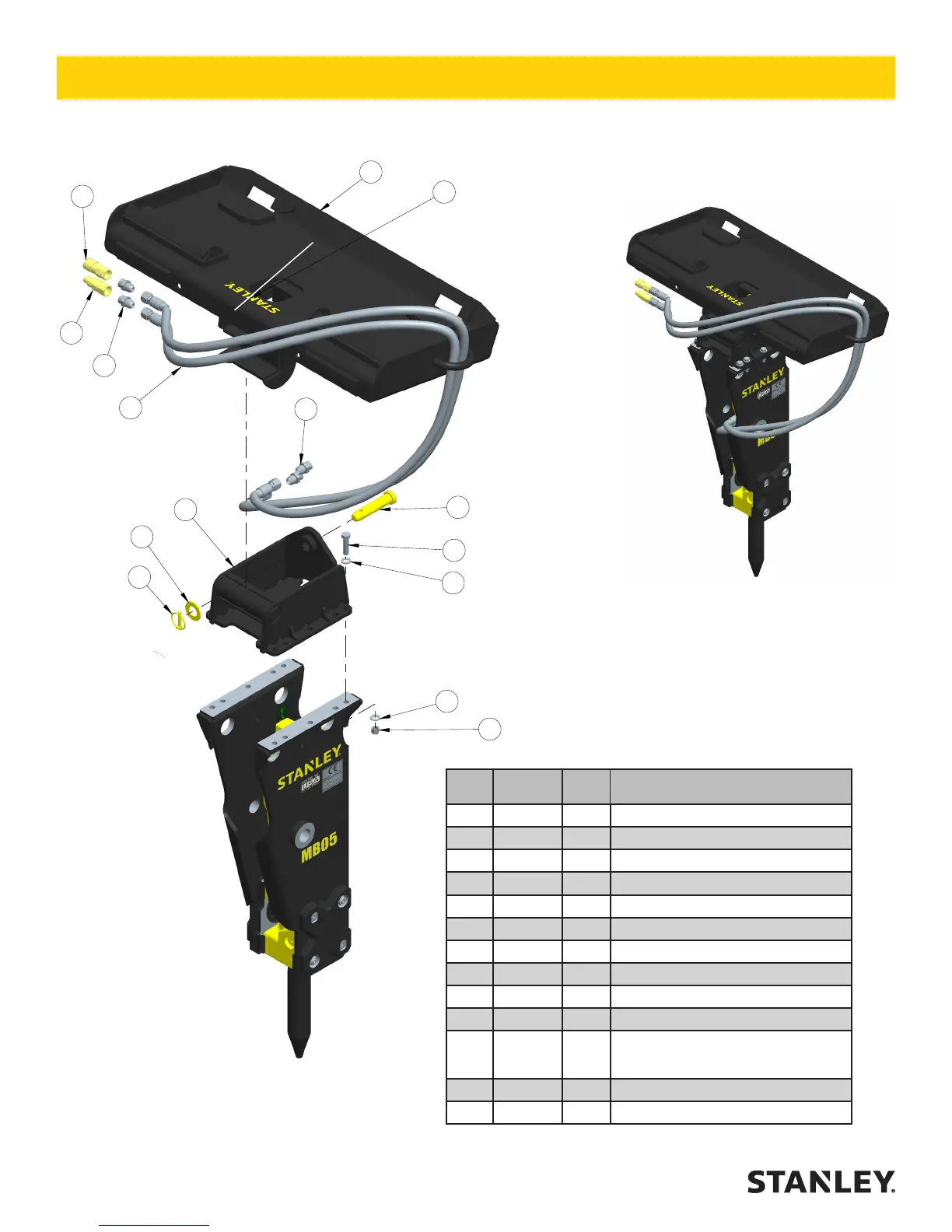

MB05S04 C&P027 TOP SKID STEER
MB05S04
ITEM
NO.
PART
NO. QTY DESCRIPTION
1 02773 4 ADAPTER 12 F50X
2 20876 20 WASHER 5/8" I.D.
3 40092 1 COUPLER F.F. MALE
6 65811 1 COUPLER F.F. FEMALE
11 70749 10 HHCS 5/8-11UNC X 2.500
12 69666 1 SHAFT C&P27
13 371074 1 WASHER
14 372089 1 LYNCH PIN
15 70759 2 HOSE
16 70760 1 C&P027 MOUNTING BRKT
22 73350 1 CP027 SS COMBO BRACKET
(INCLUDES ITEMS 12, 13 & 14)
27 74707 1 DECAL, "STANLEY", 8.5 INCH
28 371507 10 NYLOCK NUT 5/8-11UNC
