MB05 User Manual ◄ 31
1
2
3
6
11
12
13
18
31
30
32
24
24
32
30
31
28
12
13
16

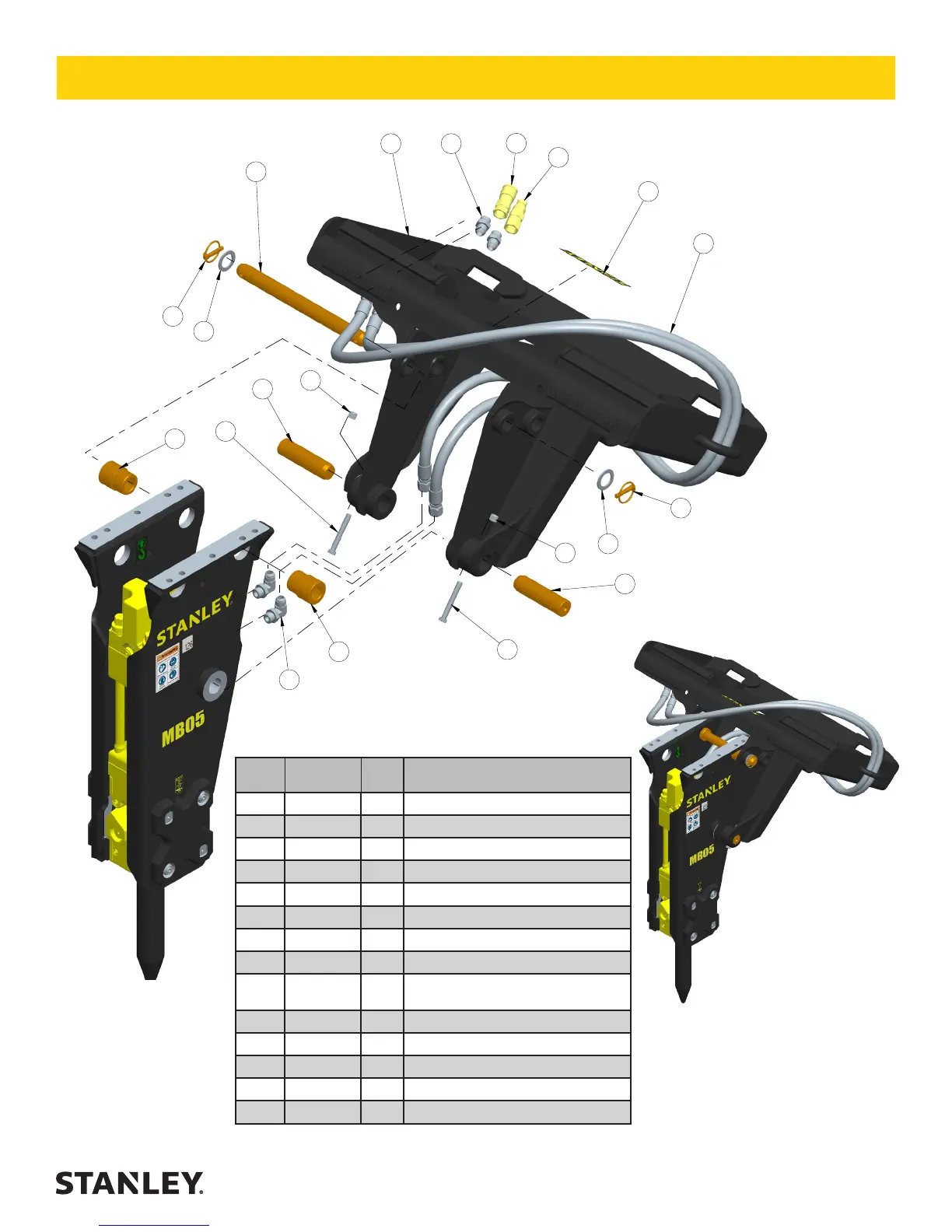

MB05S02 SKID STEER MOUNTING BRKT
ITEM
NO.
PART
NO. QTY DESCRIPTION
1 02773 2 ADAPTER 12 F50X
2 05967 2 STRAIGHT THREAD ELBOW
3 40092 1 COUPLER F.F. MALE
6 65811 1 COUPLER F.F. FEMALE
11 70728 1 BOOM PIN - MB05
12 70729 2 PIVOT PIN
13 70742 2 BUSHING
16 70759 2 HOSE
18 70983 1 CRADLE ASSEMBLY (INCL
ITEMS 11, 12, 13, 24, 30, 31, 32.
24 70911 2 CAPSCREW 4 INCH LONG
28 74707 1 DECAL, "STANLEY", 8.5 INCH
30 371054 2 WASHER 1-1/2
31 371500 2 NYLOCK NUT 1/2-13UNC
32 372089 2 LYNCH PIN
MB05S02
