Stanley MB05 User Manual

MB05 User Manual ◄ 33
D
C
B
A
D
C
B
A
1
3
45
678
12
34
56
78
2
NOTES:
HYDRAULIC
TOOLS
NOTE: ALL DIMENSIONS ARE GIVEN IN INCHES AND
DEFINE THE FINISHED PART. TOLERANCES AND SURFACE
ROUGHNESS IS SPECIFIED BELOW (EXCEPT AS NOTED):
WEIGHT: LBS
905.2
SCALE:
0.180
CONFIDENTIAL - THIS DOCUMENT AND ALL
INFORMATION CONTAINED HEREIN IS THE
PROPERTY OF THE STANELY WORKS AND MAY
NOT BE DISCLOSED TO UNAUTHORIZED
PERSONS OR REPRODUCED BY ANY MEANS, OR
USED FOR ANY PURPOSE OTHER THAN THAT
SUBMITTED WITHOUT EXPRESS WRITTEN
PERMISSION FROM THE STANLEY WORKS.
DECIMALS +/-.020
ANGLES +/-1°0'
BREAK ALL SHARP EDGES:
.010 R. MAX OR .010 x 45°
SURFACE ROUGHNESS: 125
TITLE:
MB05s05
FINAL ASSEMBLY
SHEET:
1 OF 1
SIZE:
D
DATE:
04/15/16
REVISION:
7
PART NUMBER:
70769S05SS
ITEM
PART
NO
QTY. DESCRIPTION
1 02773 2 ADAPTER 12 F50X
2 05967 2 STRAIGHT THREAD ELBOW -12JIC x -12SAE
3 20876 20 WASHER 5/8" I.D.
4 40092 1 COUPLER F.F. MALE
5 47351 1 DECAL, COMPOSITE WARNING
6 47352 1 DECAL, LIFT POINT
7 65811 1 COUPLER F.F. FEMALE
8 66218 1 GUARANTEED SOUND POWER LEVEL
9 66764 1 DECAL, USA ORIGIN 3"
10 69863 1 TOOL BIT, CONICAL
11 69869 1 POWER CELL
12 70749 10 HHCS 5/8-11UNC X 2.500
13 70753 2 DECAL, "MB05"
14 70754 1 DECAL, NITROGEN 200 PSI
15 70759_7 1 HOSE 451TC-06-06-12-12-12-100" W/SL
16 70759_8 1 HOSE 451TC-06-06-12-12-12-100" W/SL
17 70762 1 EXCHANGE TOP
18 70795 1 MB05 MANUAL, USERS (NOT SHOWN)
19 70972 1 DECAL, GREASE
20 71457 4 SIDE PLATE BOLT
21 71458 4 WASHER
22 72499 4 NYLOCK NUT 3/4-16UNF
23 73369 1 EXCHANGE SS BRACKET
24 74405 1 SIDE PLATE, LEFT
25 74406 1 SIDE PLATE, RIGHT
26 74704 1 DECAL, CE MB05 SKID STEER
27 74705 2 DECAL, "STANLEY" 11 INCH
28 74707 1 DECAL, "STANLEY", 8.5 INCH
29 371507 10 NYLOCK NUT 5/8-11UNC
REV. BY DATE PCRN# DESCRIPTION
1 INITIAL RELEASE
1
2
3
4
7
12
15
17
23
28
29
3
DRAWN BY:
JM
COATING CODE: MATERIAL CODE:
MB05S05
MB05E05

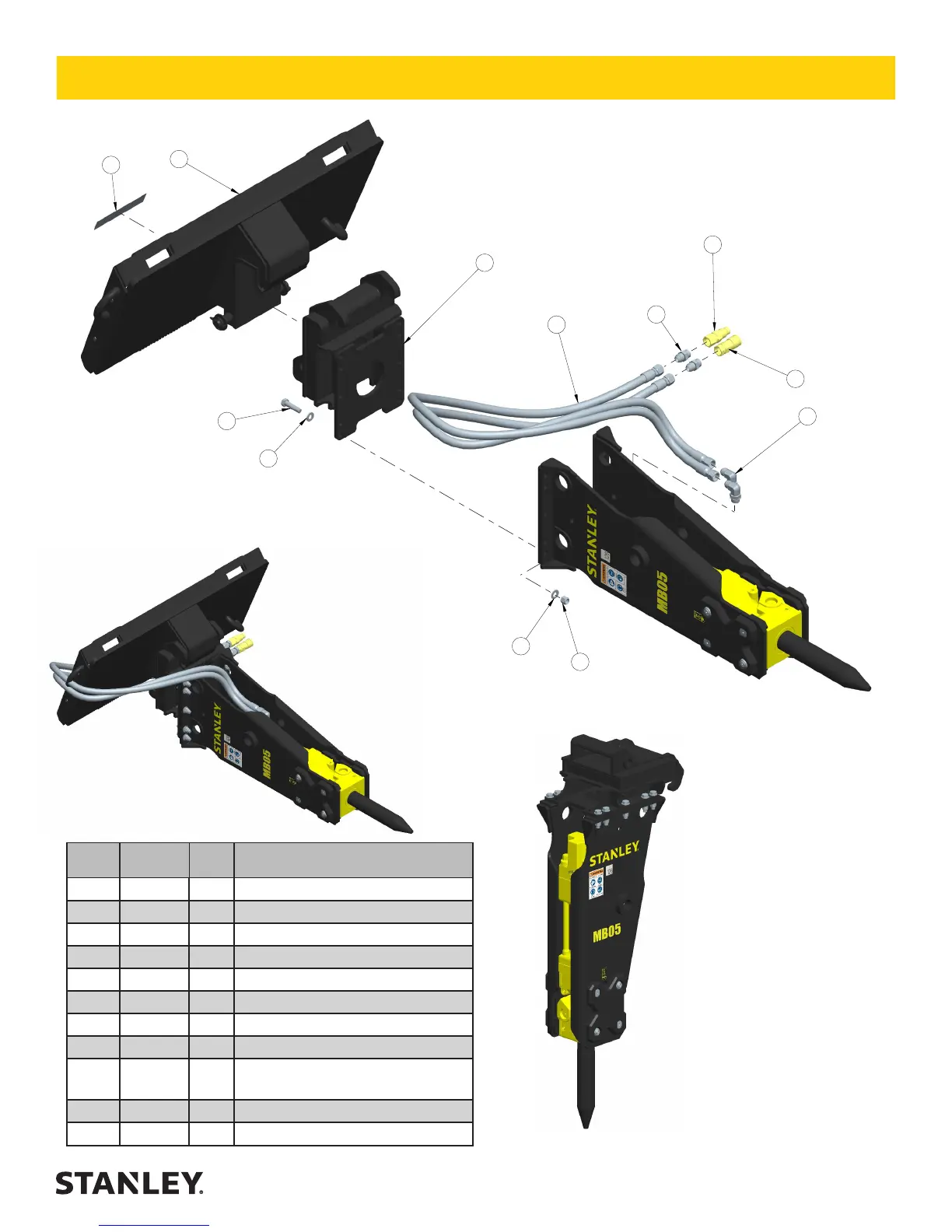

MB05S05 SKID STEER XCHANGE TOP
ITEM
NO.
PART
NO. QTY DESCRIPTION
1 02773 2 ADAPTER
2 05967 2 STRAIGHT THREAD ELBOW
3 20876 20 WASHER 5/8" I.D.
4 40092 1 COUPLER F.F. MALE
7 65811 1 COUPLER F.F. FEMALE
12 70749 10 HHCS 5/8-11UNC X 2.500
15 70759 1 HOSE
17 70762 1 EXCHANGE TOP
23 73369 1 EXCHANGE SS BRACKET (SEE
NOTE AT TOP OF PAGE)
28 74707 1 DECAL, "STANLEY", 8.5 INCH
29 371507 10 NYLOCK NUT 5/8-11UNC
NOTE: Item # 23 Includes 2 Washers
12712, 2 Lynch Pins 12713 and 1 Ex-
change Pin 73387 Not pictured
