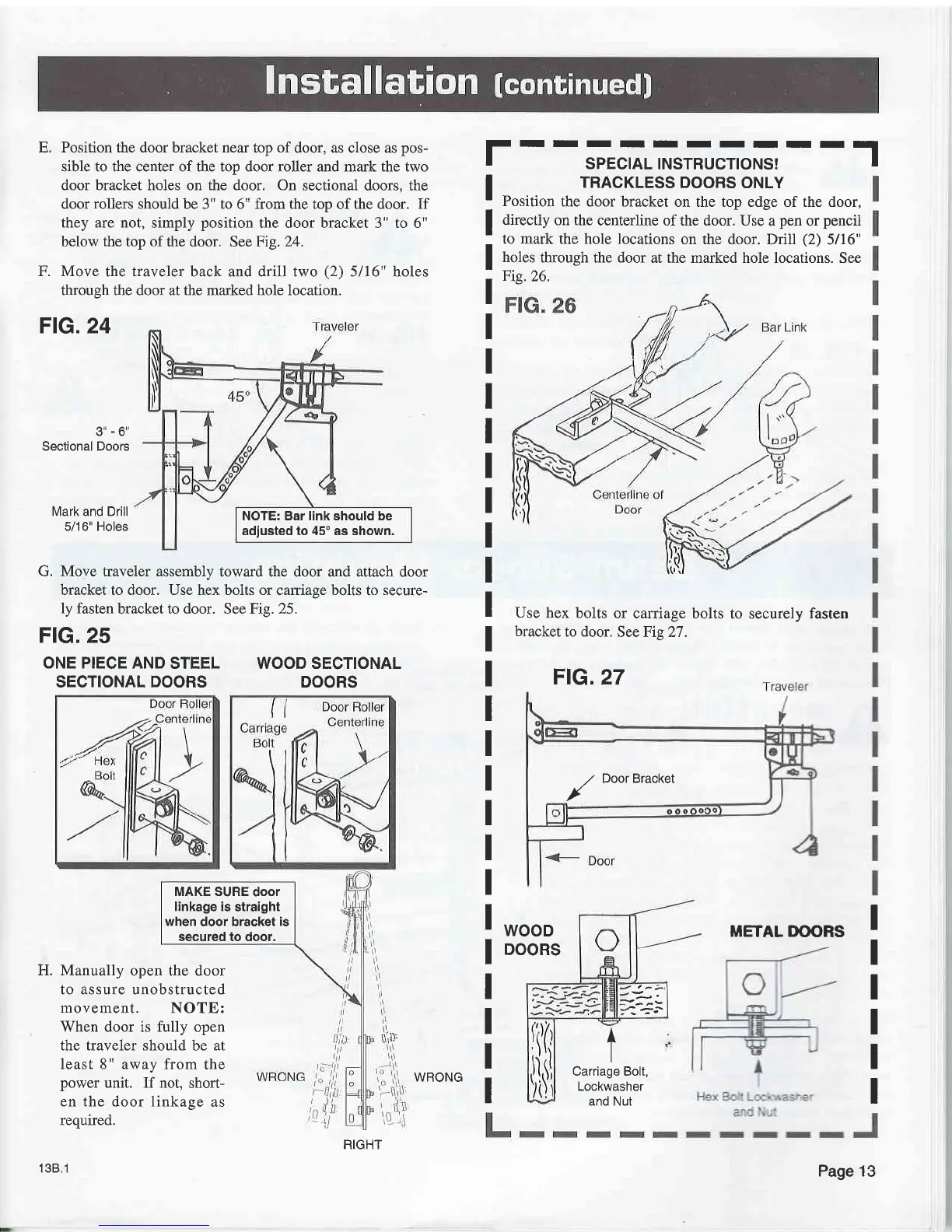

Stanley U-INSTALL - Door Bracket Attachment; Bracket Positioning and Securing; Trackless Door Specifics

E. Position the door bracket near
top
of
door, as close as
pos-
sible to the center of the top door roller and mark the two
door bracket holes on the door. On
sectional doors, the
door
rollers
should be 3" to 6" from the
top ofthe door.
If
they are not,
simply
position
the door bracket 3" to 6"
below the top
of the door. See
Fig.24.
F. Move
the traveler back and drill two
(2)
5/16" holes
throush the door at the marked hole location.
FtG.24
3"-6"
Sectional Doors
Mark and Drill
5/16" Holes
G. Move traveler assembly
toward the door and attach door
bracket to door. Use hex bolts or cariage bolts
to
secure-
ly fasten
bracket to door. See Fig. 25.
FtG.
25
ONE PIECE AND
STEEL WOOD SECTIONAL
SECTIONAL DOORS DOORS
l-
-r r
rrrr-r
- -l
r
SPECIAL INSTRUCTIONS!
I
TRACKLESS DOORS
ONLY
Position
the door bracket
on the top edge of the door,
directly on the
centerline of the door. Use
a
pen
or
pencil
to mark the hole locations
on the door. Drill
(2)
5116
holes
through
the door at the marked hole locations. See
Fig.26.
Use
hex bolts
or carriage bolts
to securely
fasten
bracket
to
door, See Fig 27.
WOOD
DOORS
A.
I
Carriage Bolt,
Lockwasher
and Nut
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
H. Manually
open the door
to assure unobstructed
movement.
NOTE:
When door is fully
open
the traveler should
be
at
least 8" away from
the
power
unit. If not,
short-
en the door linkase
as
required.
il\*
I
I
I
I
I
I
I
I
I
I
I
wRoNG
I
I
I
I
I
I
I
NOTE: Bar link should be
adjusted to 45o as shown.
FtG.27
//
Door Bracket
METAL DOORS
l:r
MAKE SURE
door
linkage is
straight
when
door bracket
is
secured to door,
RIGHT
138.1
Page 13
