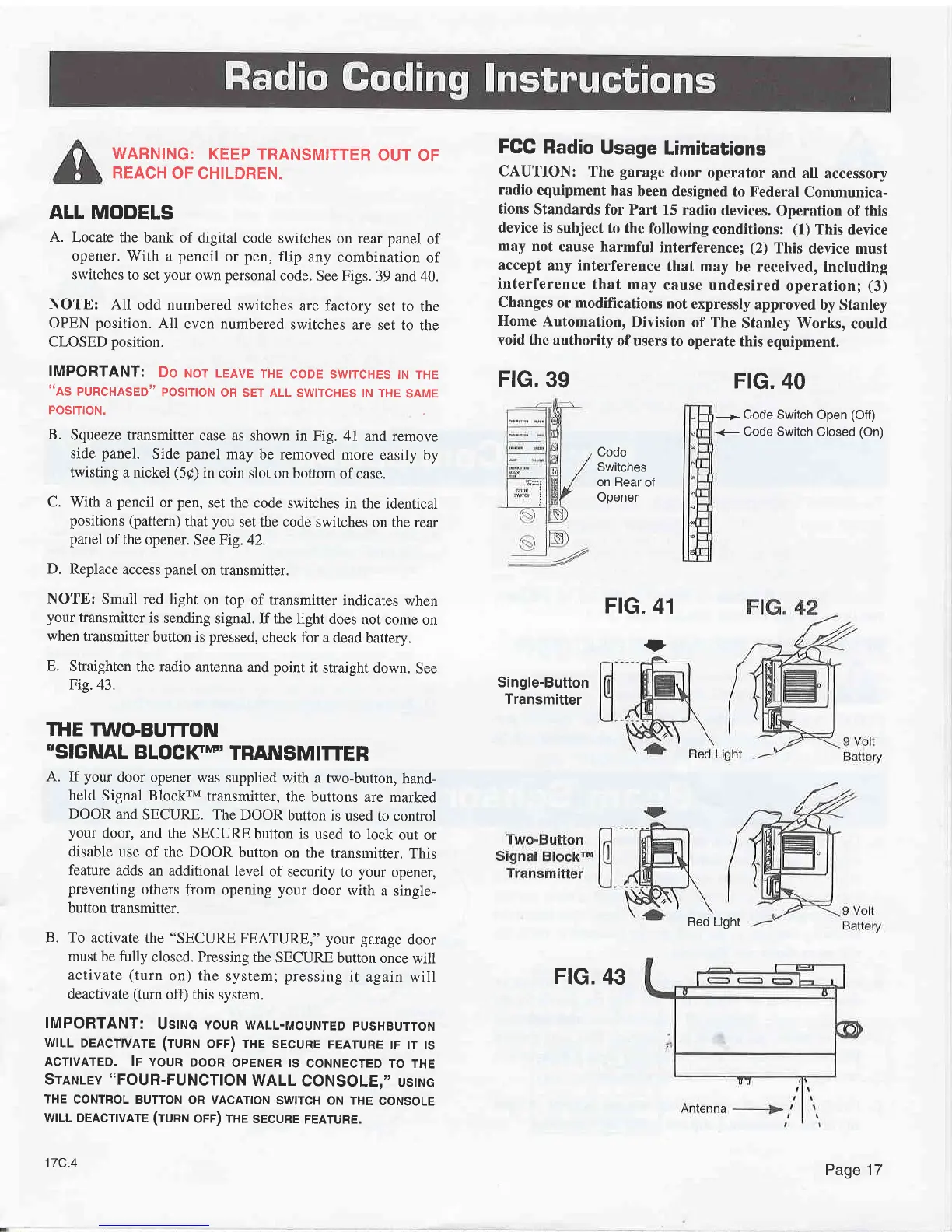

Stanley U-INSTALL - Radio Coding Instructions; Setting Transmitter Codes; Transmitter Operation Notes; Two-Button Transmitter Features

WARNING:
KEEP TRANSMITTER
OUT
OF
REACH
OF CHILDREN.
ALL
MODELS
A.
Locate
the bank
of digital code
switches
on rear
panel
of
opener.
With a
pencil
or
pen,
flip
any
combination
of
switches
to set
your
own
personal
code.
See Figs. 39
and 40.
NOTE:
All odd numbered
switches
are factory
set to
the
OPEN
position.
All
even numbered
switches
are set to
the
CLOSED position.
IMPORTANT:
Do
ruor LEAvE
rHE
coDE swtrcHEs
tN rHE
"AS
PURCHASED,'
POSITION
OR SET ALL
SWITCHES
IN THE
SAME
POSITION.
B.
Squeeze
transmitter
case as
shown in Fig. 41
and remove
side
panel.
Side
panel
may
be removed
more
easily by
twisting
a nickel
(5p)
in coin
slot on bottom
of case.
C.
With a
pencil
or
pen,
set the
code switches
in the identical
positions
(pattern)
that
you
set the code
switches on
the rear
panel
ofthe
opener.
See Fig.42.
D.
Replace
access
panel
on transmitter.
NOTE: Small red
light
on top of transmitter
indicates
when
your
transmitter
is sending
signal. If the
light does
not come
on
when transmitter
button is
pressed,
check
for a dead
battery.
E.
Straighten
the radio
antenna and
point
it
straight down.
See
Fig.43.
THE TWO.BUTTON
"SIGNAL
BLOCICM''
TRANSMITTER
A. If
your
door
opener
was supplied
with a two-button,
hand-
held
Signal BlockrM
transmitter,
the buttons
are marked
DOOR
and
SECURE. The
DOOR
button is
used to
conrrol
your
door,
and the
SECURE
button is
used to lock
out
or
disable use
of the DOOR
button
on the
transmitter.
This
feature
adds an additional
level
of security
to
your
opener,
preventing
others
from
opening
your
door with
a single-
button
transmitter.
B. To
activate
the
"SECURE
FEATURE," your garage
door
must
be fully
closed. Pressing
the
SECURE
button once
will
activate
(turn
on) the
system; pressing
it
again
will
deactivate
(turn
off)
this system.
IMPORTANT:
Usrruc
youn
wALL-MouNTED
pusHBurroN
wrLL
DEACTTVATE
(TURN
OFF)
THE SECURE
FEATURE
tF tT tS
ACTIVATED.
IT YOUR
DOOR
OPENER IS
CONNECTED
TO THE
Srnruley
"FOUR-FUNCTION
WALL
CONSOLE,"
ustNc
THE
CONTFOL BUTTON
OR VACATION
SWITCH ON THE
CONSOLE
wrLL
DEACIVATE
(TURN
OFF) THE
SECURE
FEATURE.
17C.4
FGG
Radio
Usage
Limitations
CAUTION:
The
garage
door
operator
and all
accessory
radio
equipment
has
been designed
to Federal
Communica-
tions
Standards
for Part
15 radio
devices.
Operation of this
device is
subject
to the
following
conditions:
(1)
This device
may not
cause
harmful
interference;
(2)
This
device must
accept
any interference
that may
be received,
including
interference
that
may
cause undesired
operation;
(3)
Changes
or
modifications
not
expressly
approved
by
Stanley
Home
Automation,
Division
of The
Stanley Works,
could
void
the authority
of users
to operate
this
equipment.
Frc.
40
---->
Code Switch
Open
(Off)
<-
Code Switch
Closed
(On)
Code
Switches
on Rear
of
Opener
FtG.
41
f
Single-Button
Transmitter
Red Light
FtG.
43
FtG.
39
Page 17
