Stanley U-INSTALL - Assembly Notices; Chain and Cable Assembly; Idler Tube Assembly

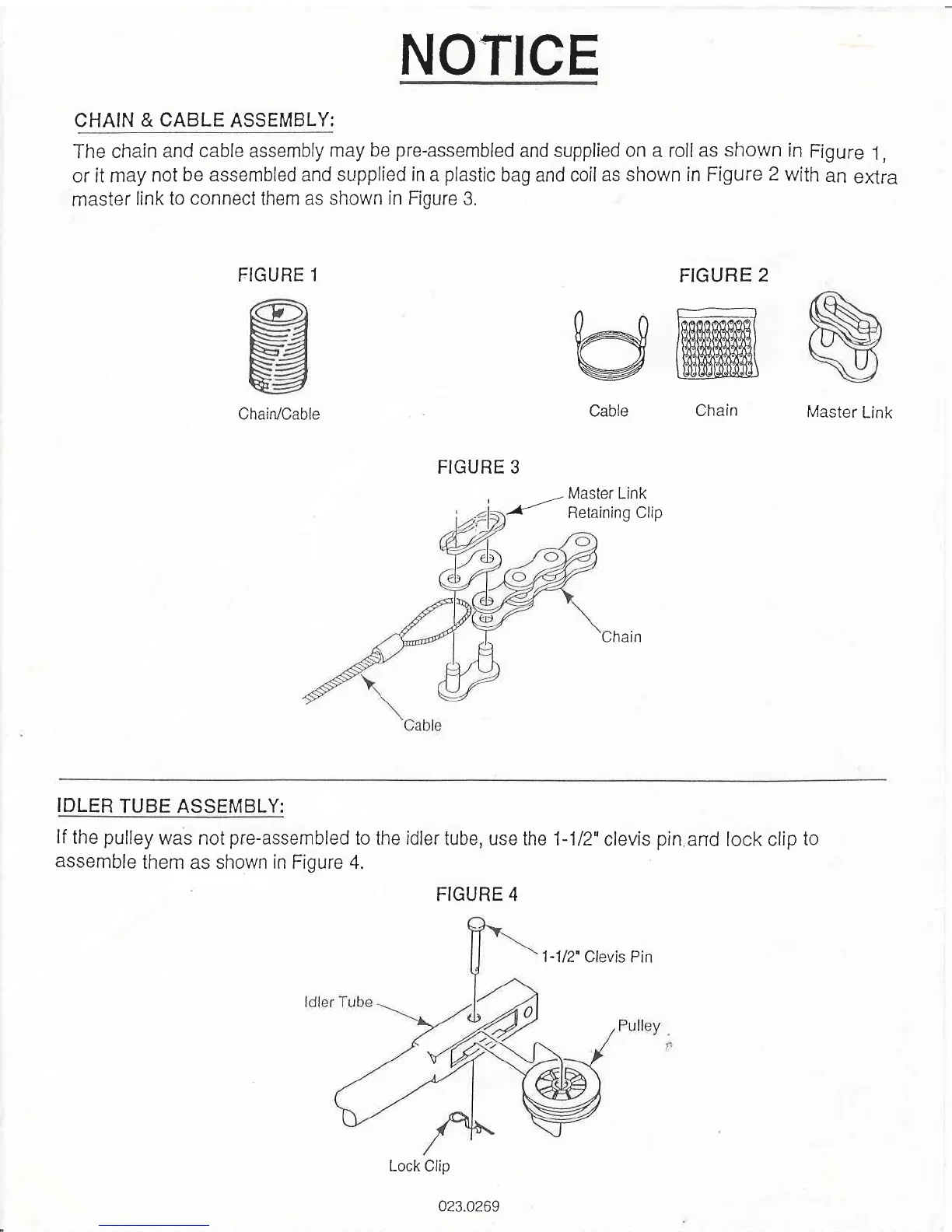

NOTICE
CHAIN
& CABLE
ASSEMBLY:
The
chain
and cable assembly
may be
pre-assembled
and supplied on a roll
as
shown
in
Figure
1,
or it may
not
be
assembled and
supplied
in
a
plastic
bag and coil
as shown in Figure
2
with
an
extra
master
link to
connect
them as shown
in Fiqure
3.
FIGURE
1
FIGURE
2
dffi
Cable
Chain
Master
Link
FIGURE 3
-
Master
Link
-1--t
Retaining Clip
Chain
Chair/Cable
IDLER
TUBE ASSEMBLY:
lf
the
pulley
was not
pre-assembled
to
the
idler
tube, use
the 1-112'clevis
pin
and
lock
clip
to
assemble
them
as
shown in Figure +.
FIGURE 4
1-112'Clevis
Pin
Lock
Clip
023.0269
