Star Micronics TSP143IIU - Auto Cutter Specifications; Interface; Electrical Characteristics

– 30 –
10-2. Auto Cutter Specications
(1) Cutting frequency Max. 20 cuts per minute
(2) ickness of paper 65~85 µm
10-3. Interface
(1) Specications USB 2.0 full speed
Printer class and vendor class compatible
(2) Connector Type B

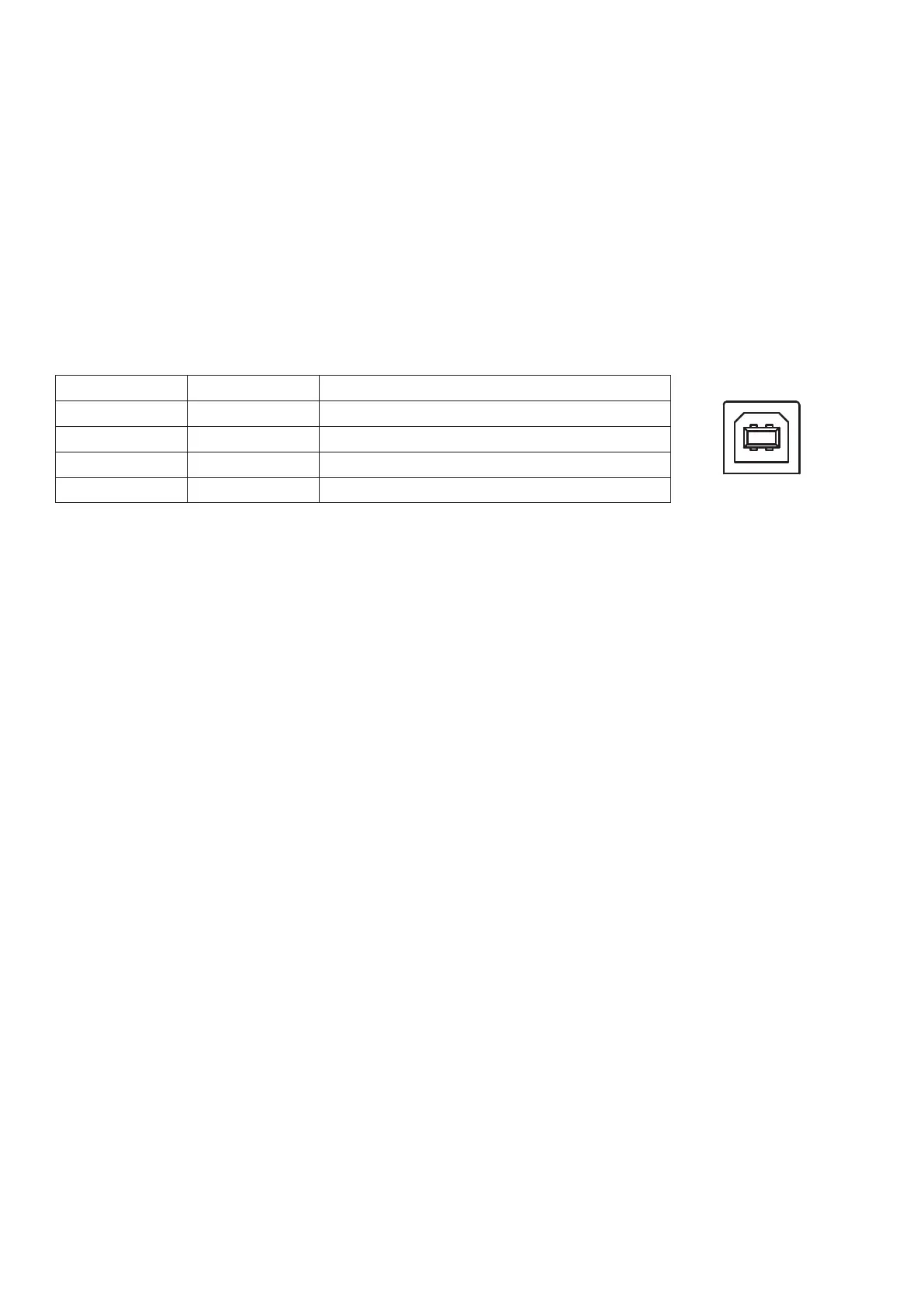

Type B connector:
DUSB-BRA42-T11(D2)-FA (manufacturer: DDK) or equivalent
Pin No. Signal name Function
1 VBUS USB Power pin (+5V DC)
2 D - Serial Date -
3 D + Serial Date +
4 GND Signal ground
10-4. Electrical Characteristics
(1) Input Voltage AC 100 - 240 V±10%, 50/60 Hz
(2) Current Consumption
System o mode: Approx. 0.05 W on average
Print ready mode: Approx. 0.76 W on average
ASCII character continuous printing: Approx. 34 W
3 4
2 1
