36
Installation

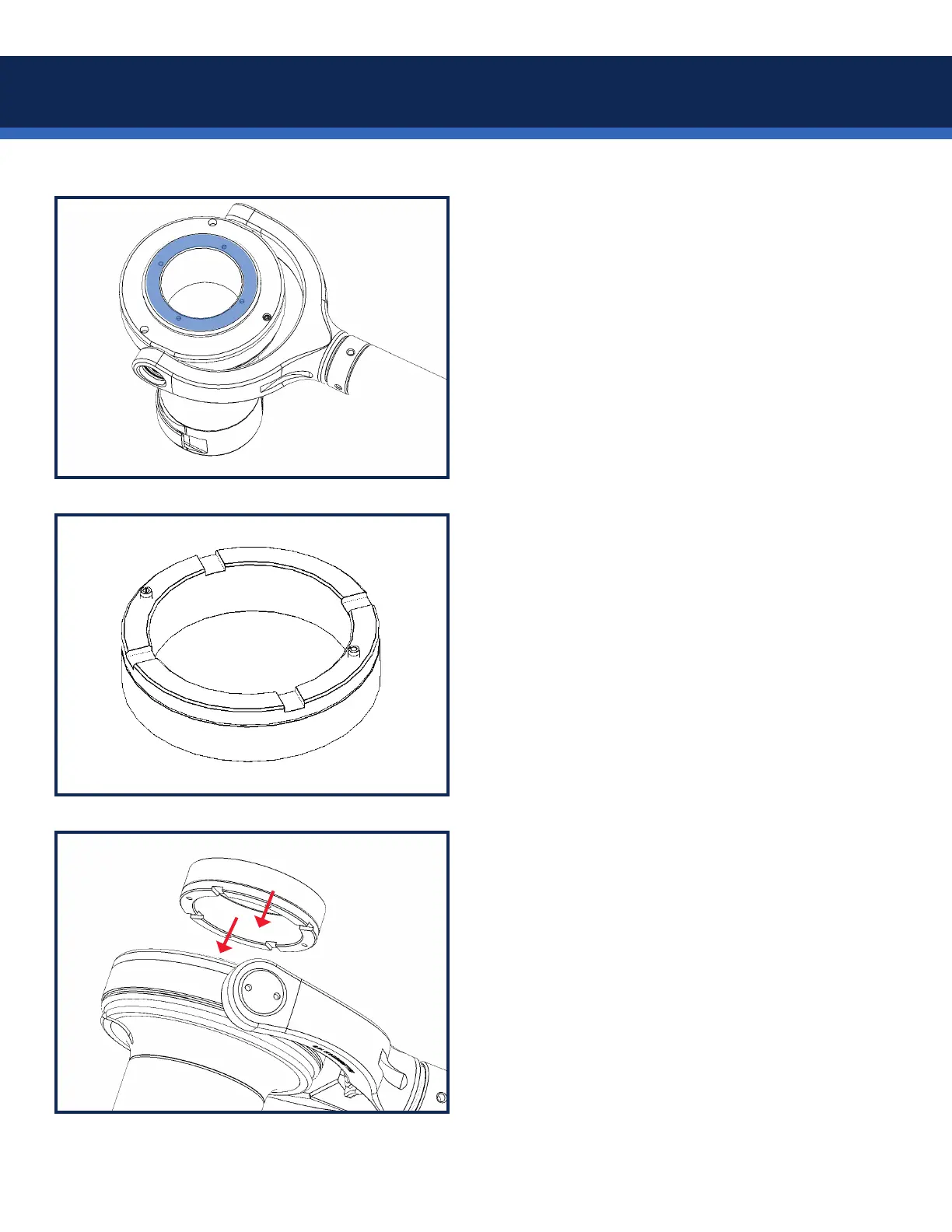

Take a moment with your blue whale
wrench to make sure the gimbal top cap is
tight and everything spins smoothly.
Use alcohol to clean the top cap when
you’re done.
NOTE: The pan encoder ring will cover the
wrench holes. Future gimbal servicing may
require removing the encoder ring.
Peel off the backing from the four adhesive
strips on the pan encoder ring.
Careful, this stuff is sticky!
NOTE: M-2 gimbals include an encoder ring
built into the gimbal. Skip these steps.
Carefully line up the two pins of the pan
encoder ring with either two of the pin-
wrench holes and press it onto the gimbal.
Orientation is not important.
Make sure the ring sits ush and is adhered
all the way around.
