Installation

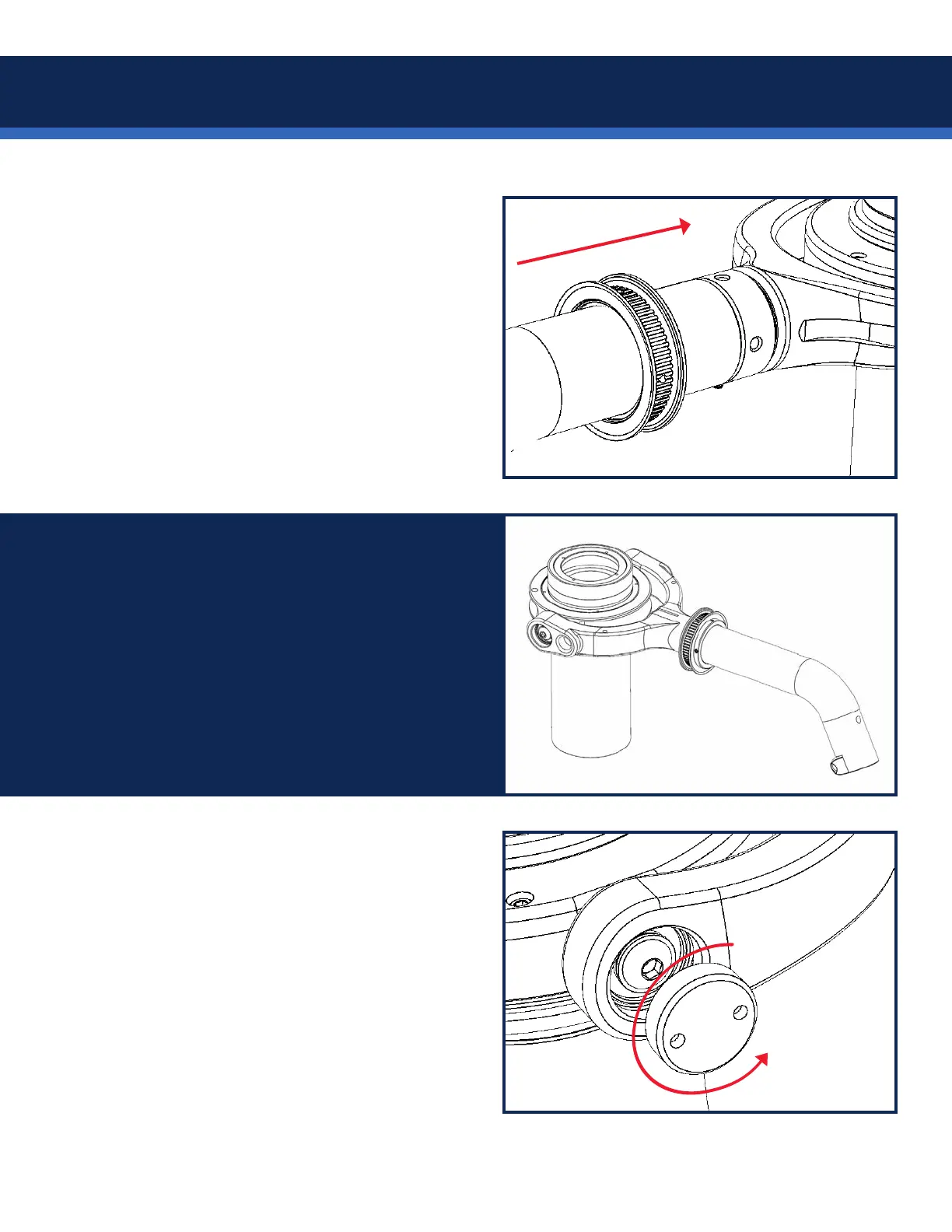

Slide the gimbal handle pulley over the
gimbal handle.
Line up the lock screws with the four holes on
the knurled blue ring.
Use a 0.05” Allen key to tighten the four lock
screws enough to secure the pulley. Do not
over-tighten.
TIP: If you’re upgrading a PRO gimbal, due to
the shape of the handle, it’s easier to install the
handle pulley during the upgrade process.
Next, if your gimbal is wearing trunnion
covers, remove BOTH of them using the
smallest pin set on the blue whale wrench
supplied with your sled or gimbal upgrade.
