You’re almost nished!
Installation

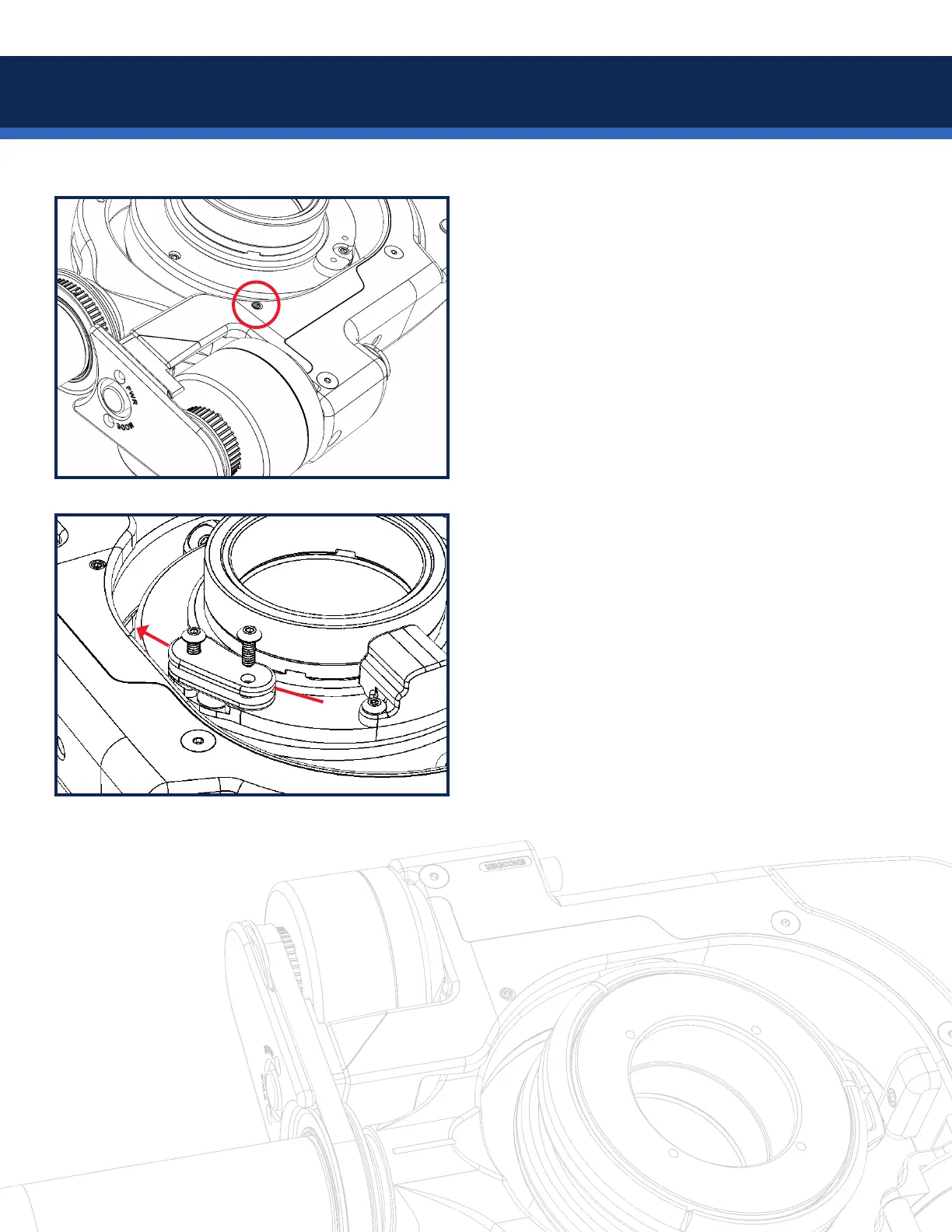

Snug the opposing pair of set screws on Volt
motor assembly with a 1/16” Allen key.
There’s one above and one below the yoke.
Tighten them each a little until they both
contact the yoke.
Do not over-tighten these!
Thread the encoder cable through the
guide and attach it to the horseshoe with a
1/16” Allen key and 4-40 screws (part SCI-
4012B1230.)
Plug in the Hirose cable.
NOTE: M-2 gimbals do not require a guide,
just route the cable over the Volt.
