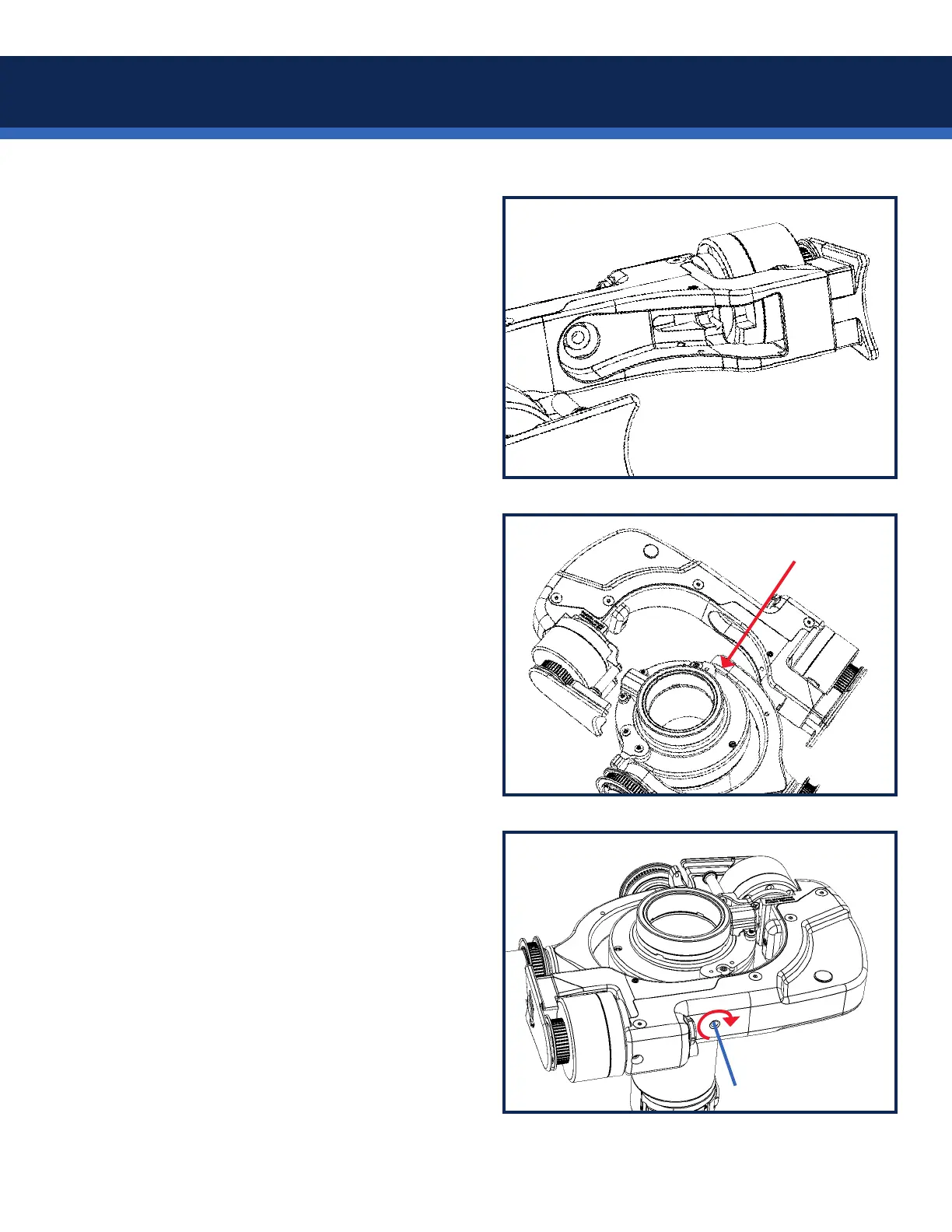

Installation
Before mounting the Volt motors, check that the
internal wiring is properly routed and the captive
trunnion screw is aligned with the housing.
TIP: Use a 1/8” Allen key to wiggle and turn the
trunnion screw a few times to ensure it’s seated in
the Volt housing before mounting.
Hold the gimbal handle up slightly to enable
proper clearance while installing the Volt.
Align the relief on the inside of the Volt and
t it against the gimbal.
Using the 1/8” Allen key inserted through the
hole in the side of the housing, tighten the
trunnion screw into the threaded cap adapter.
Take your time to make sure not to cross the
ne threads. Fully seat the fastener, but do not
over-tighten.
