Motor belts

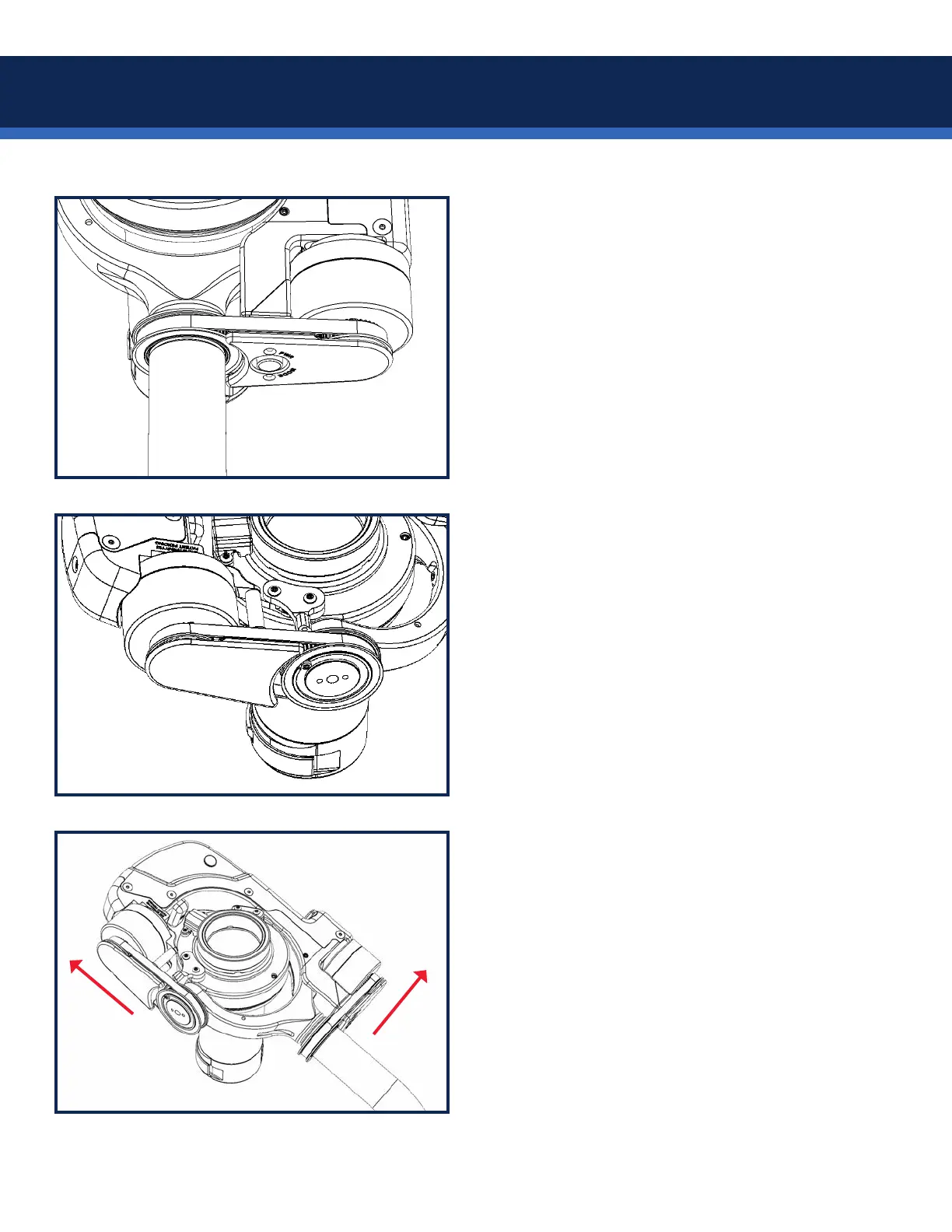

Place one of the belts (they’re identical) over
the handle pulley and over the top of the motor
pulley.
Rotate the handle and use your ngers to walk
the belt over the sidewall of the pulley.
Be careful not to get pinched!
Place the other belt over the trunnion motor
pulley and over the top of the trunnion pulley.
Use your ngers to walk the belt over the
sidewall of the trunnion pulley.
TIP: If the belt is stubborn, try lifting the gimbal
handle while installing the belt to help walk it
onto the pulley
Adjust BOTH belt tensions by turning each
tension screw clockwise with the 7/64” Allen key.
Slowly adjust each belt tension, a little at a time,
so the Volt is loaded evenly.
To test belt tension, grasp each belt halfway
between the motor and pulley with a rm pinch,
and twist the belt 45 degrees. If it goes beyond
45 degrees, the belt is too loose.
