47
Motor belts
Precise belt tension is not required for
optimal performance. The belts should
not have any slack, but not be so tight as
to create friction.
NOTE: You may wish to adjust the
tension again with Volt powered on to
check its behavior.

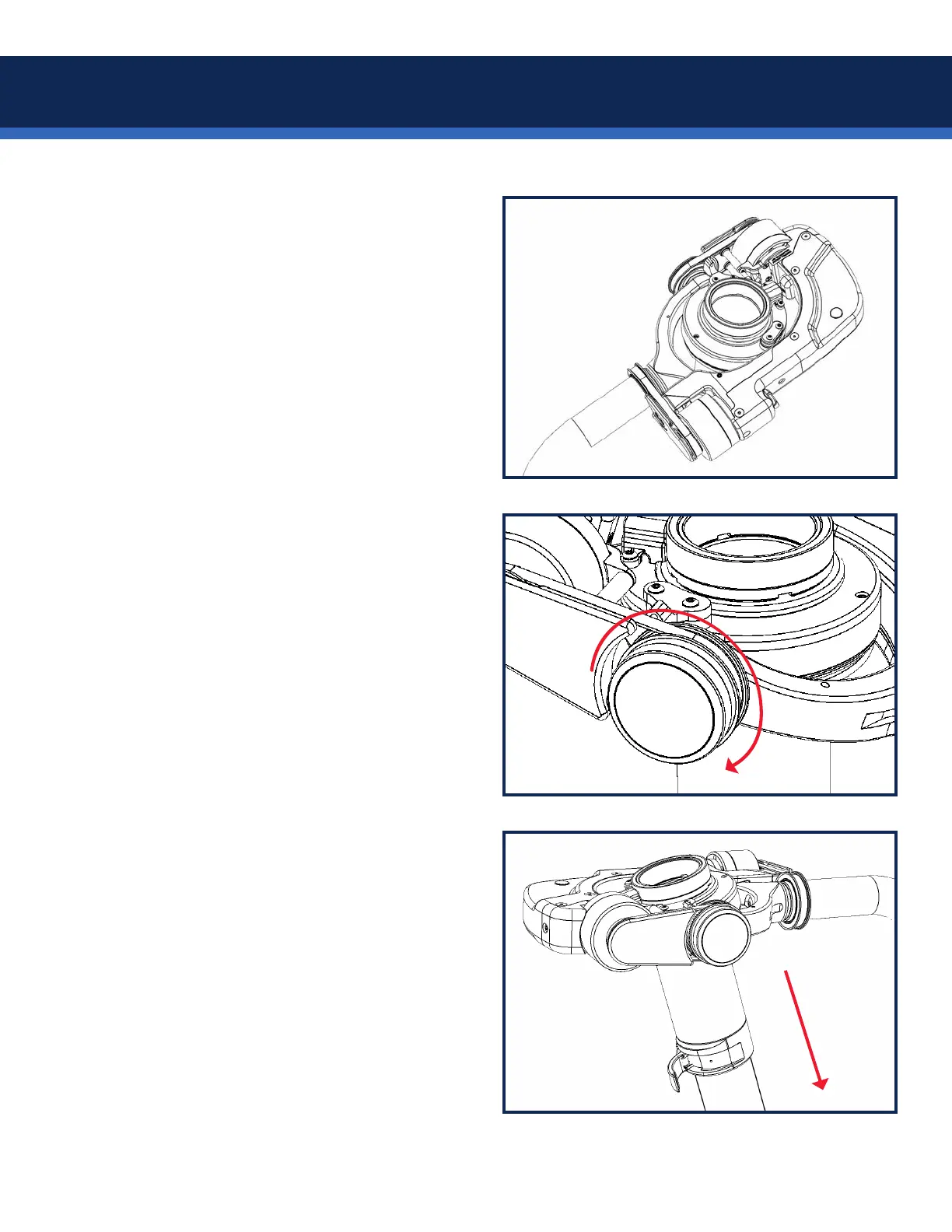

The nishing touch is to spin the trunnion
weight into the 1/4-20” threads of the
trunnion pulley.
Just make sure it’s on tight,
no need to over-torque it.
NOTE: M-2 trunnion weights require an
Allen key to attach the weight.
If you haven’t yet, reinstall the gimbal
onto the sled.
With the gimbal lock open, slide the
gimbal back onto the post and re-
assemble the top stage.
TIP: You can eliminate unnecessary
docking rings from your post and gain
precious gimbal height!
