Steadicam Volt - Volt Control Box

3

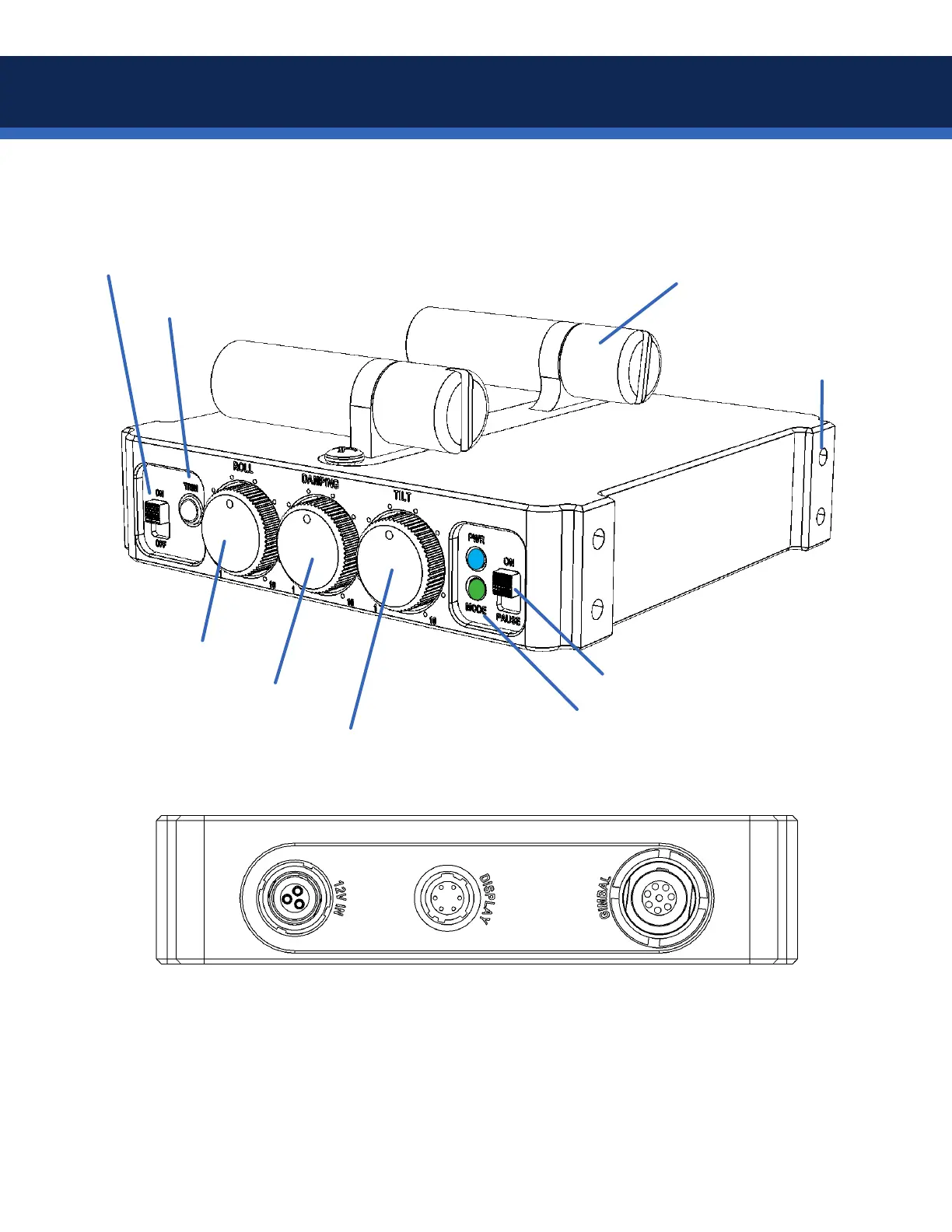

Nose box rods
Power and Mode LEDs
Run/pause switch
Steadicam
®
Volt™ Control Box
Main power switch
Level trim button
Power input jack from sled
12V power
Display jack
(RESERVED)
Main power/control output to
Volt gimbal motors
Roll strength dial
Tilt strength dial
Damping adjuster
MDR-3 mount
Padded dock insert
specic for your gimbal
NOTE: The LEMO connectors rotate up to 90˚ in the control box chassis to allow you more options when running cables
with right-angle connectors.
Components
