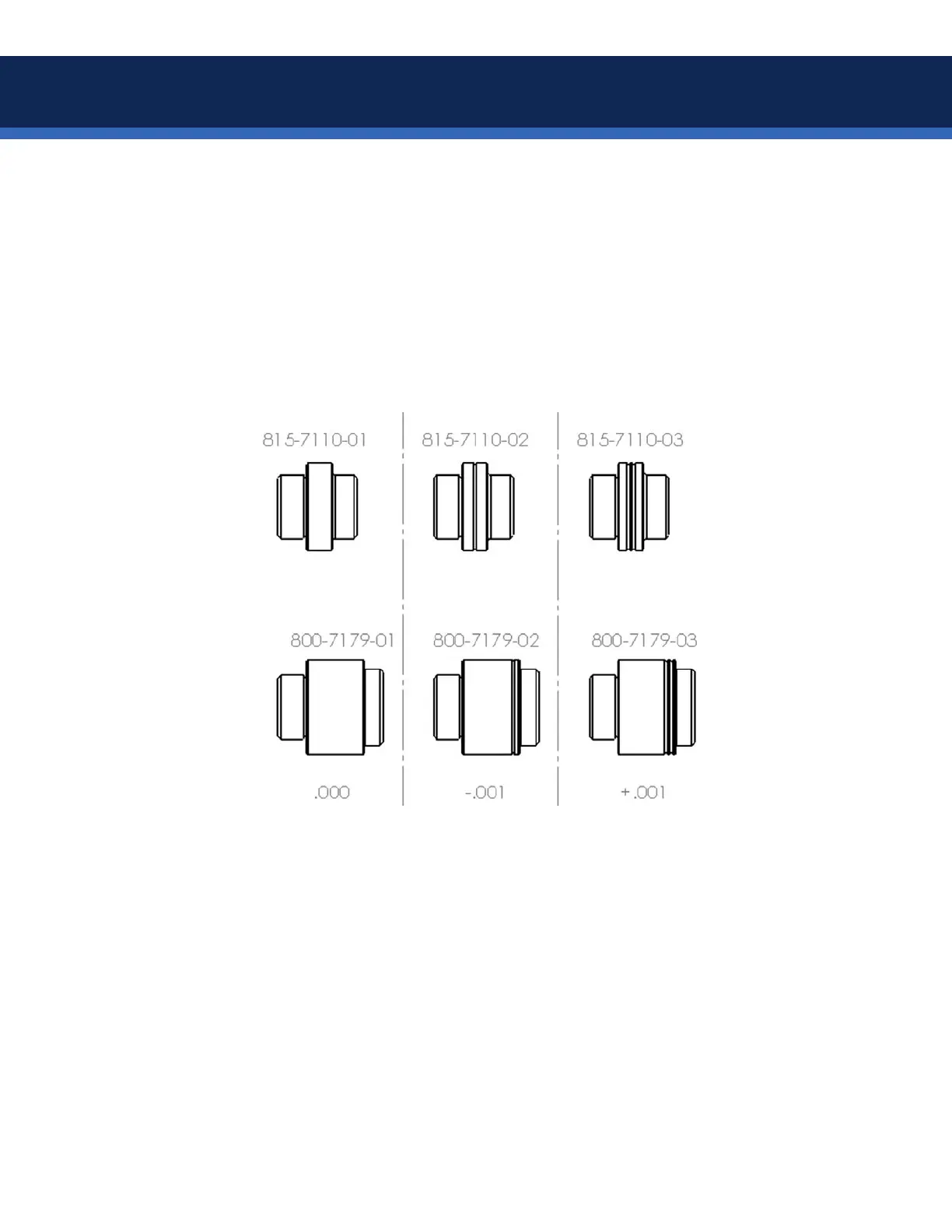

c) NOTE that the 800-7179-xx and 815-7110-xx spacers come in three different sizes (.000”, +.001”
and -.001”) as indicated by the grooves cut into the parts (Refer to image below). The type of spacer
used will depend on the gimbal that is being balanced.
6. Dock the sled such that there is no weight applied to the gimbal.
7. Remove the 815-7111 cap from yoke using the supplied blue gimbal tool.
8. Remove the 800-7177 (10-32 screw) using a 1/8” hex key, along with washer WHR-190375.
9. In order to remove the BRG-105421 and spacer, insert 3/16” ball lock plunger (PIN-137003) into the
spacer and pull out the spacer and bearing.
U2, Shadow, Clipper, PRO gimbal balancing
