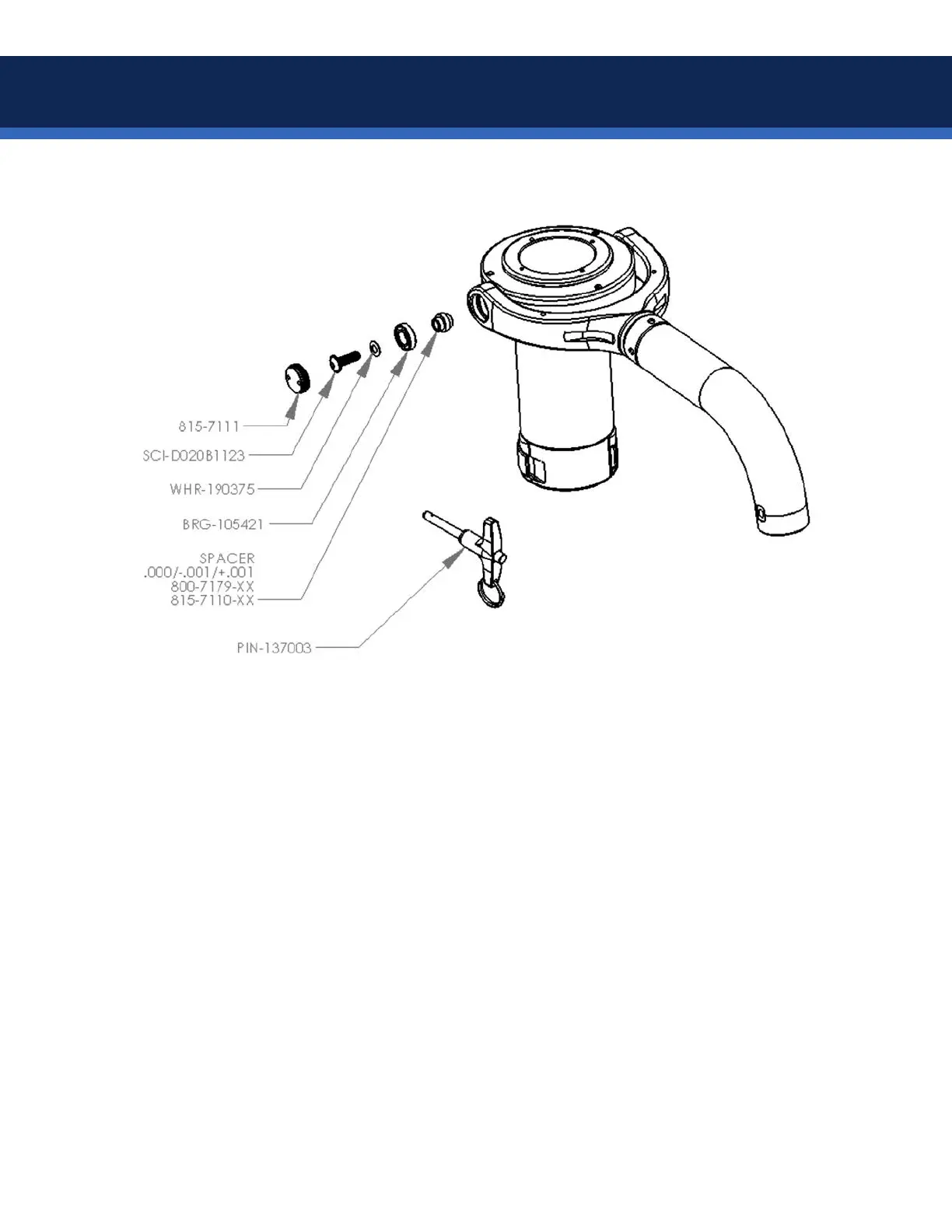

10. Note the type of spacer installed
11. If the gimbal housing bearing needs to be shifted to the left as noted in step 5a, this means that the
spacer on the left side of yoke will need to be decreased (i.e. go from .000 to -.001) and the spacer on the
right will need to be increased (i.e. go from .000 to +.001).
12. Replace spacers as required, re-assemble gimbal, verify that there is no Left – Right play in the gimbal,
and repeat steps 4-11 as required until the gimbal is balanced.
13. NOTE that if the gimbal cannot be balanced within approximately 1-deg of accuracy, make sure all
clamps, plates, camera and whatever else might shift or become loose is stable and not shifting the balance
point, and re-test.
U2, Shadow, Clipper, PRO gimbal balancing
