Included with Steadicam
®
Volt™ M-series gimbal kit
• M-2 gimbal with Volt Motor Assembly, internal encoder, pulleys and belts installed and tested
• Volt Control Box (mustache box)
• Gimbal cable, short (817-0135)
• M-2 gimbal post spacers for 1.5”, 1.58” and 1.75” posts
• Padded Dock, insert and balance studs for gimbal, and case (817-7980)
Included with Steadicam
®
Volt™ upgrade kit for M-1
• Volt Gimbal Motor Assembly, pulleys, belts and hardware
• Volt Control Box (mustache box)
• Pan encoder assembly and pan encoder ring for gimbal
• Gimbal cable, short (817-0135)
• Padded Dock, your choice of balance studs, and case (817-7980)
• Nose box mounting rods
• Spare adhesive tapes for pan encoder ring
Also included with upgrade kits for other gimbals
• Volt compatible yoke and mounting kit for your gimbal
• Blue pin wrench for your gimbal
• Mounting options you selected
• Upgrade kit details begin on page 51
Tools required for installations
• Blue “whale” gimbal tool for your gimbal.
• Imperial Allen key set for install and belt adjustment.
• Flat screwdriver for nose box rods.
• Loctite
®
222™ for post top screws and upgrade kits.
Components
CAUTION: The external pan encoder ring included in many kits is a precisely manufactured magnet and should NOT be
exposed to strong external magnetic elds before or after installation.

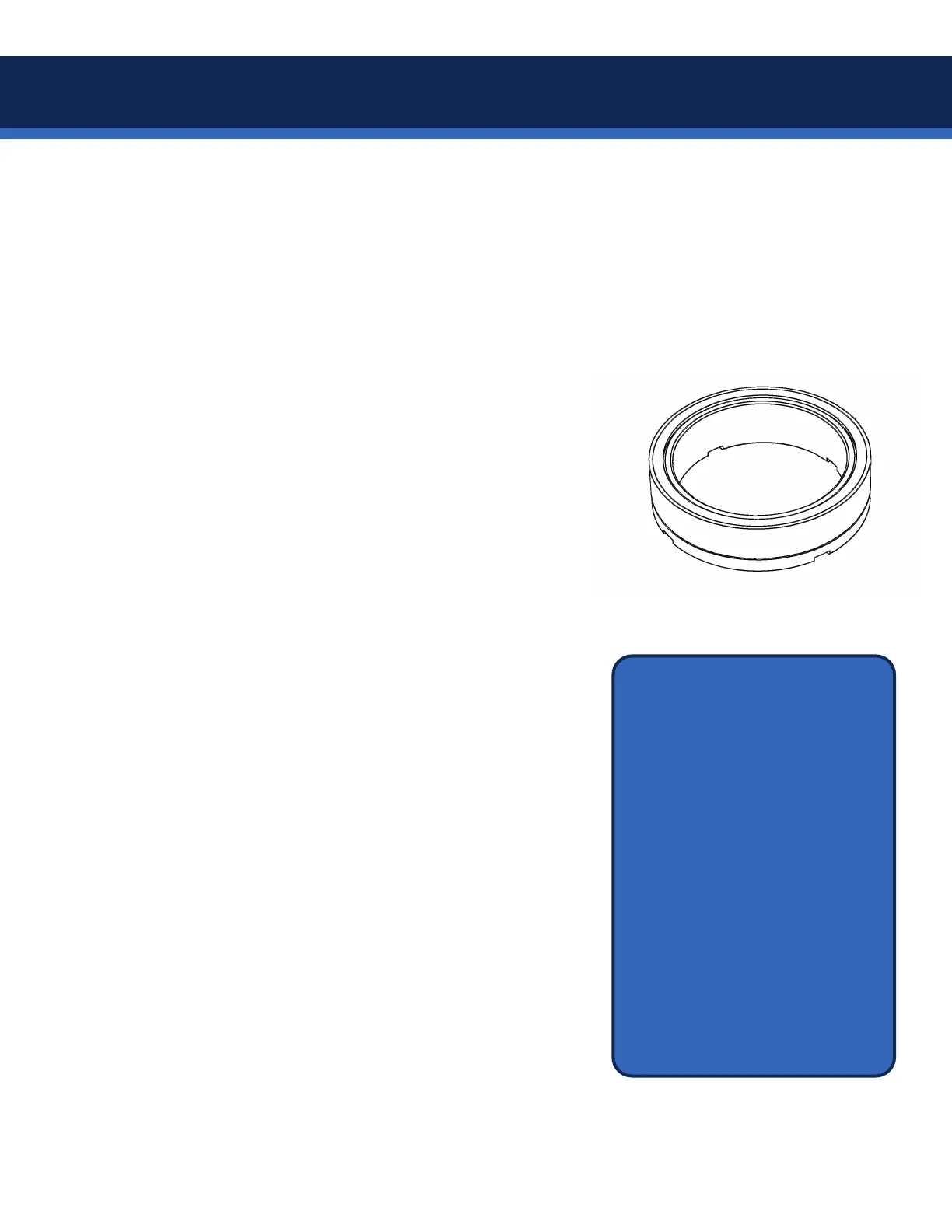

Pan encoder ring
Upgrade kits available
for these gimbals:
Archer
Clipper
Shadow
Ultra2
M-1/M-2
PRO CineLive
PRO CineHD
Betz
Check with Tiffen for the latest
list of available upgrade kits.
