Steinbach MINI - Installation; Installing Adapters on the Hose Ends; Connecting the Lines;Pipes

2. Lay the hoses from the water treatment system to the setup location of the heat pump (see Fig. F).
Make sure that there is no tension on any of the lines routed to the heat pump and that they are not
in the way.
3. Lay the supply line for the heat pump's power supply (see section "Technical data").
Use an extension cable or a socket with the required protection class for the environmental
conditions of the connection site!
The setup location is prepared.
Installation
Installing adapters on the hose ends
The heat pump is always the last link in the water treatment system. If a filter or salt
system or similar is used, it must be connected upstream of the heat pump so that the
filtered, treated water flows through the heat pump.
1. Clean large-particle soiling from the connection points of the heat pump
1
, the adapters
2
and
the hose ends of the water pipes.
2. Screw an adapter
2
onto the outlet water connection
6
.
3. Screw an adapter
2
onto the inlet water connection
7
.

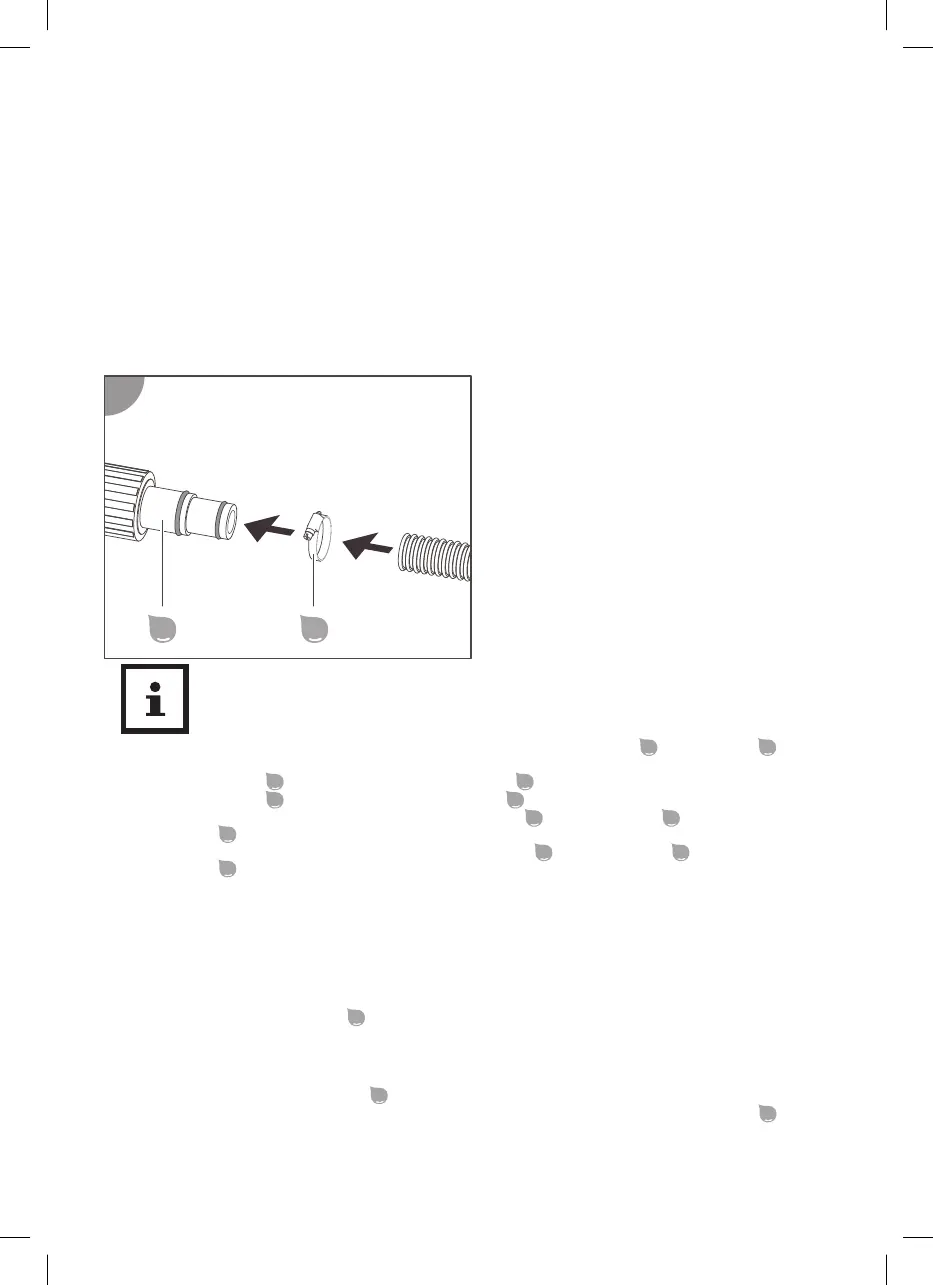

4. Attach the hose end of the drain line with a hose clamp
3
and the adapter
2
on the outlet water
connection
6
(see Fig. 1).
5. Connect the hose end of the feed line with a hose clamp
3
and the adapter
2
on the inlet water
connection
7
(see Fig. 1).
The adapters are installed on the hose ends.
Connecting the lines/pipes
Establishing the power supply
The MINI heat pump cannot be operated with an external timer and you need to manually switch the
pump on and off via the RCD power plug.
1. Connect the RCD power plug
C
to the power supply prepared at the setup location.
The power supply is established.
Connecting a drain pipe for condensation water (optional)
1. Insert the drain connection piece
4
into the hole in the base plate.
2. Attach the drain pipe (garden hose) for condensation water to the drain connection piece
4
.
The drain pipe for condensation water is connected.
1
2
3
34
