56 4420 Owner’s Manual
Hydraulic Installation
1. After mounting, locate the pressure and
return lines. Note: Pressure line is 3/8”
hose; Return line is 1/2” hose. Hoses are
terminated using swivel fittings.

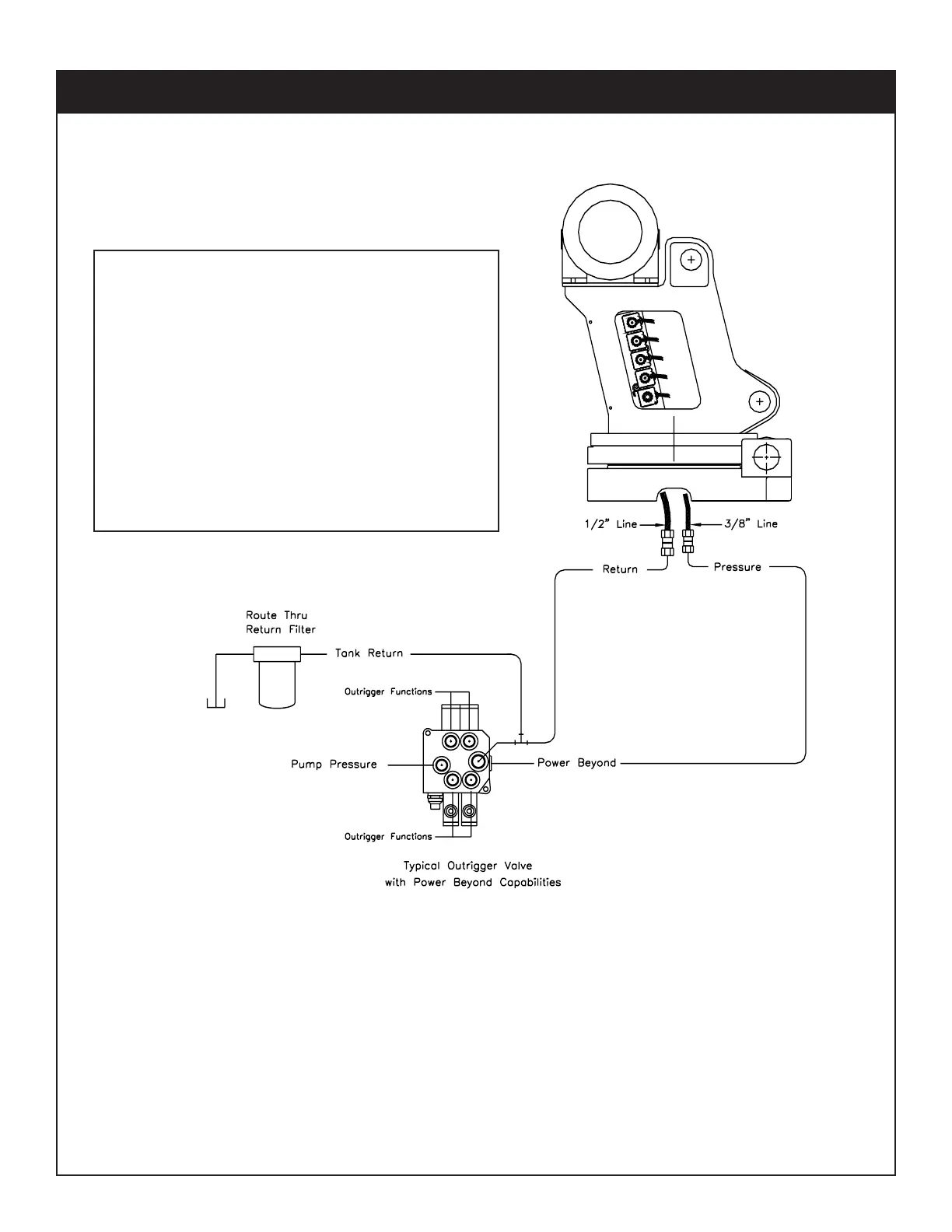

2. Install hydraulic lines per diagram below.
Note: Outrigger valve supplies oil to
crane using the Power Beyond feature.
3. Install hydraulic reservoir with return filter.
Attach pump pressure line to valve,
return link to tank.
4. Fill system with hydraulic oil (Mobil DTE-
13M is recommended).
