TC Series Telescopic Crane Owner’s Manual

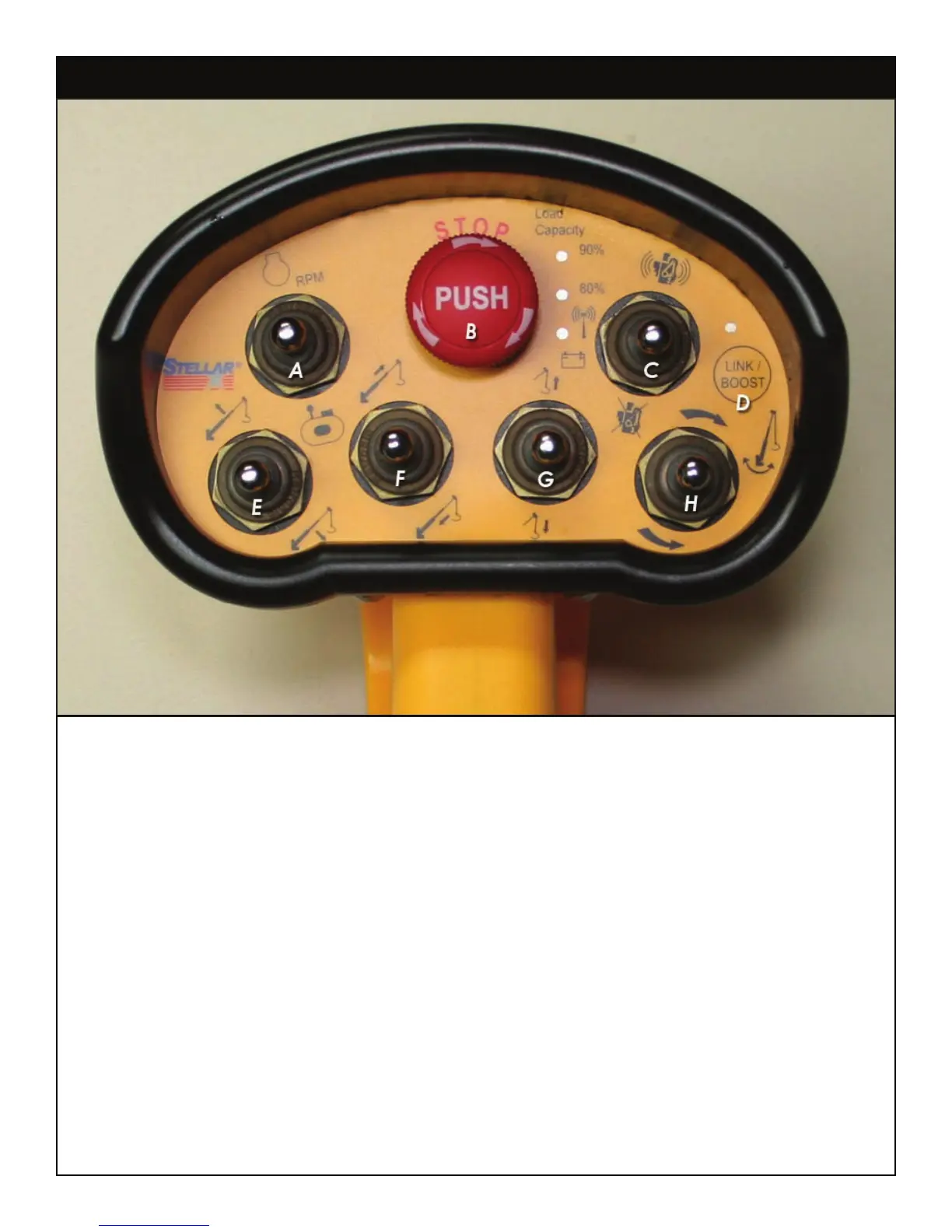

Radio Remote Control Functions
A. Optional Speed Control/Compressor Start/Stop Toggle: Push up to start or stop the optional
speed control. Push down to start or stop the compressor.
B. E-Stop Button: Push to immediately stop all crane functionality. Note: The E-stop button is not
intended to be an on/off switch. This is also the rst item to check if the crane is not responding
to toggle and trigger activation. Make sure the red E-Stop button is in the up or disengaged
position.
C. Engine Start/Stop Toggle: Push to start or stop the engine.
D. Link/Boost Button: Push and hold for 5 seconds to engage boost mode (See the following page
for details on ‘Boost Mode’). If the remote loses connection with the transmitter, use this button
to reconnect.
E. Boom Up/Down Toggle: Push up to raise the boom. Push down to lower the boom.
F. Extension In/Out Toggle: Push up to extend the extension. Push down to retract the extension.
G. Optional
H. Rotate Clockwise/Counterclockwise: Push up to rotate the boom clockwise. Push down to rotat
the boom counterclockwise.
