650/800/850 GUEPARD
HEAD LAMPS ADJUSTMENT
Check the head lamp beam

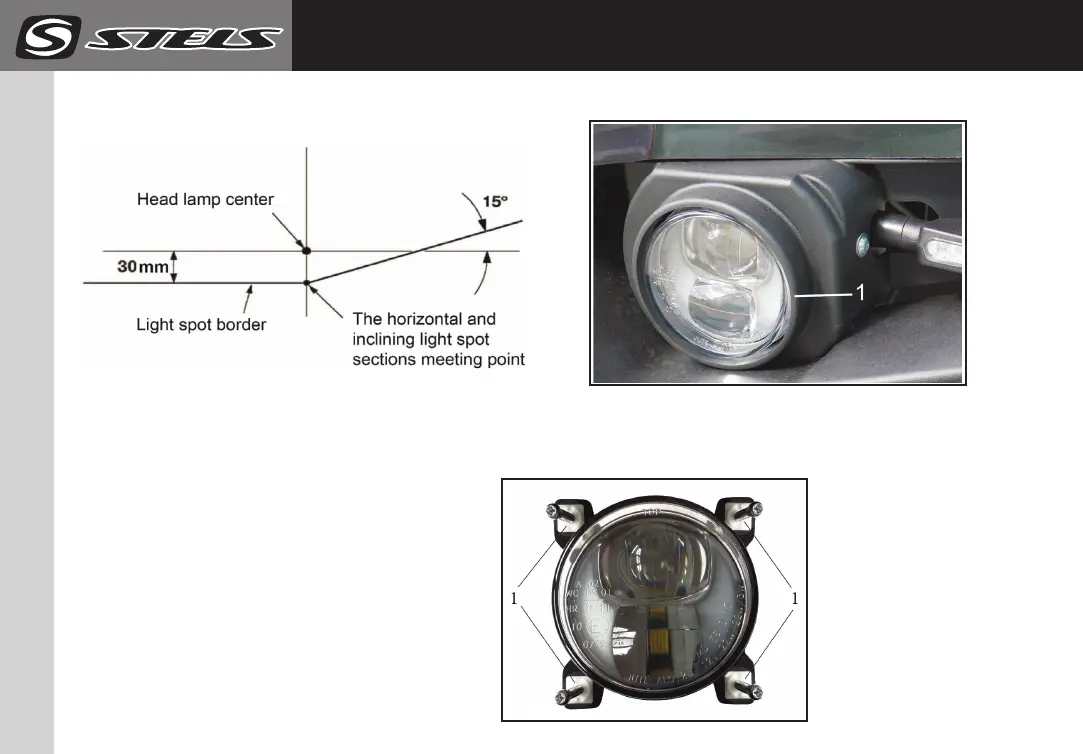

1. Make a screen for the light beam measurement:
2. Park the vehicle category T3b on a flat
surface so that the distance from the head lamp
to the screen is 3 m, and the vehicle longitudinal
axis is perpendicular to the screen.
3. Meet the following head lamp check conditions:
- the head lamps installation places are
undeformed.
- the fuel tank is full
- the tyres inflation pressure is normal
- the driver is mounted on the vehicle
- check the vehicle suspension 2-3 times
4. Turn on the low beam. The light eam should be
positioned as illustrated in the picture above.
5. If necessary, adjust the head lamp light bea
The head lamp light beam adjustment
1. The head lamp decorative ring attaching screw.
Unscrew the screw (1) and remove the decorative rim.
Obtain the correct
light beam by turning
the adjustment
screws (1). Install and
secure the decorative
head lamp rim.
NOTЕ:
It is recommended to
perform this operation
at the repair workshops.
