Instruction Manual for AS380 Series Elevator Integrated Drive Controller
61

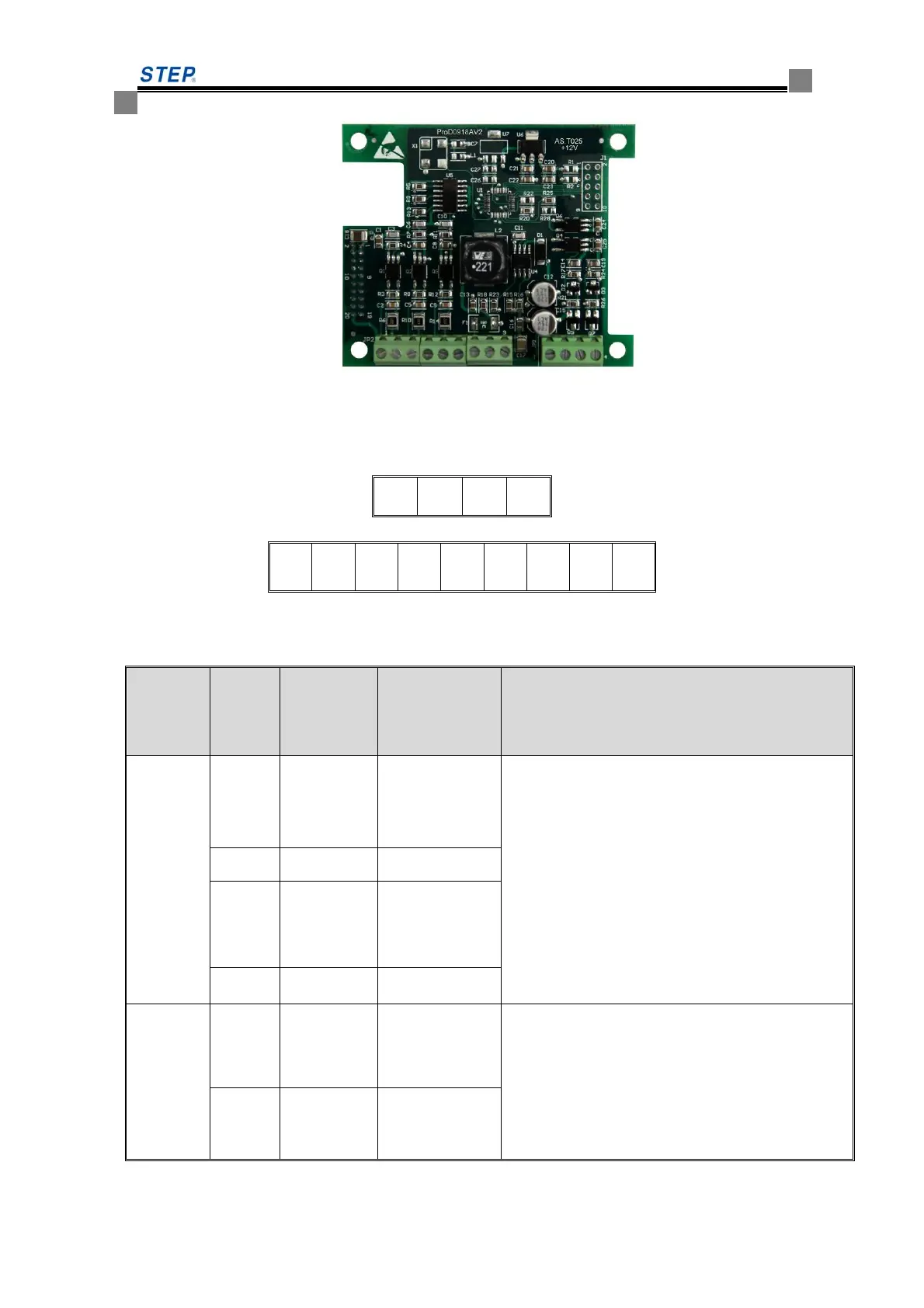

Fig 4.18 ABZ incremental 12v PG card terminal layout
4.7.1.2 ABZ incremental 12v PG card terminal labeling
ABZ incremental 12v PG card terminal labeling as following
JP3 frequency-dividing output terminal
FA V0 FB V0
JP2 output terminal
A+ A- B+ B- Z+ Z- V+ V- PE
4.7.1.3 ABZ incremental 12 v PG card terminal function description
ABZ incremental 12 V PG card terminal functions description see table 4.6
Table 4.6 ABZ incremental 12v PG card terminal function description
name Pin No
Terminal
label
Terminal
function
description
specification
Frequenc
y-dividin
g signal
output
JP3.1 FA
Frequency-divid
ing signal output
A phase
Triode collective open output （ max output
frequency 100kHz）；
JP3.2 0V 24V GND
JP3.3 FB
Frequency-divid
ing signal output
B phase
JP3.4 0V 24V GND
Encoder
input
JP2.1 A+
Encoder A phase
signal +
Open collector/push-pull ， max input frequency
100kHz
JP2.2 A-
Encoder A phase
signal -
