Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
63
推挽输出
VCC
0V
A
B
A-
B-
A+
B+
A
PG卡接线板
+5V
屏蔽线接地
V+
V-

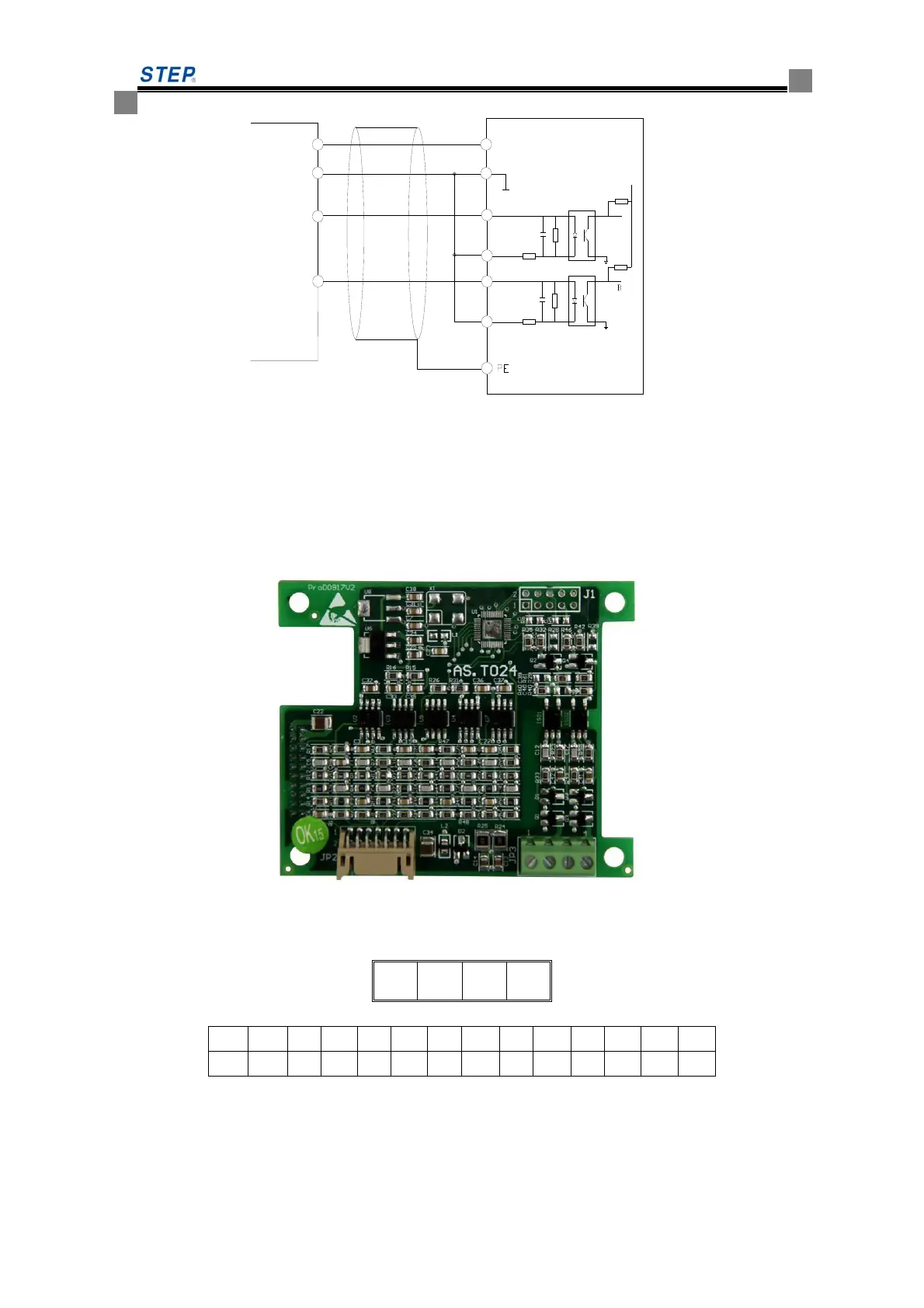

4.7.2 SIN/COS PG card
Sin/Cos PG card (model AS.T024) can receive the sin/cos differential output signal of
encoder and be available for the installation of encoder of sin/cos differential output signal
4.7.2.1 sin/cos PG card terminal layout
Sin/cos PG card terminal layout see fig 4.21
4.7.2.2 SIN/COS PG card terminal label
SIN/COS PG card (AS.T024) terminal label is shown as following:
JP3 terminal label
FA V0 FB V0
JP2 terminal label （14 pin socket）
1 2 3 4 5 6 7 8 9 10 11 12 13 14
NC NC R- R+ B- B+ A- A+ D- D+ C- C+ 0V V+
4.7.2.3 SIN/COS PG card terminal function description
SIN/COS PG card (AS.T024) terminal description see table 4.7
