You cannot change any of the values on this page. To update
this page and to show the current attached devices, click on the
Refresh button.
ADDRESS RESERVATION
When you specify a reserved IP address for a PC on the LAN,
that PC will always receive the same IP address each time when
it accesses the DHCP server. Reserved IP addresses should
be assigned to servers that require permanent IP settings. This

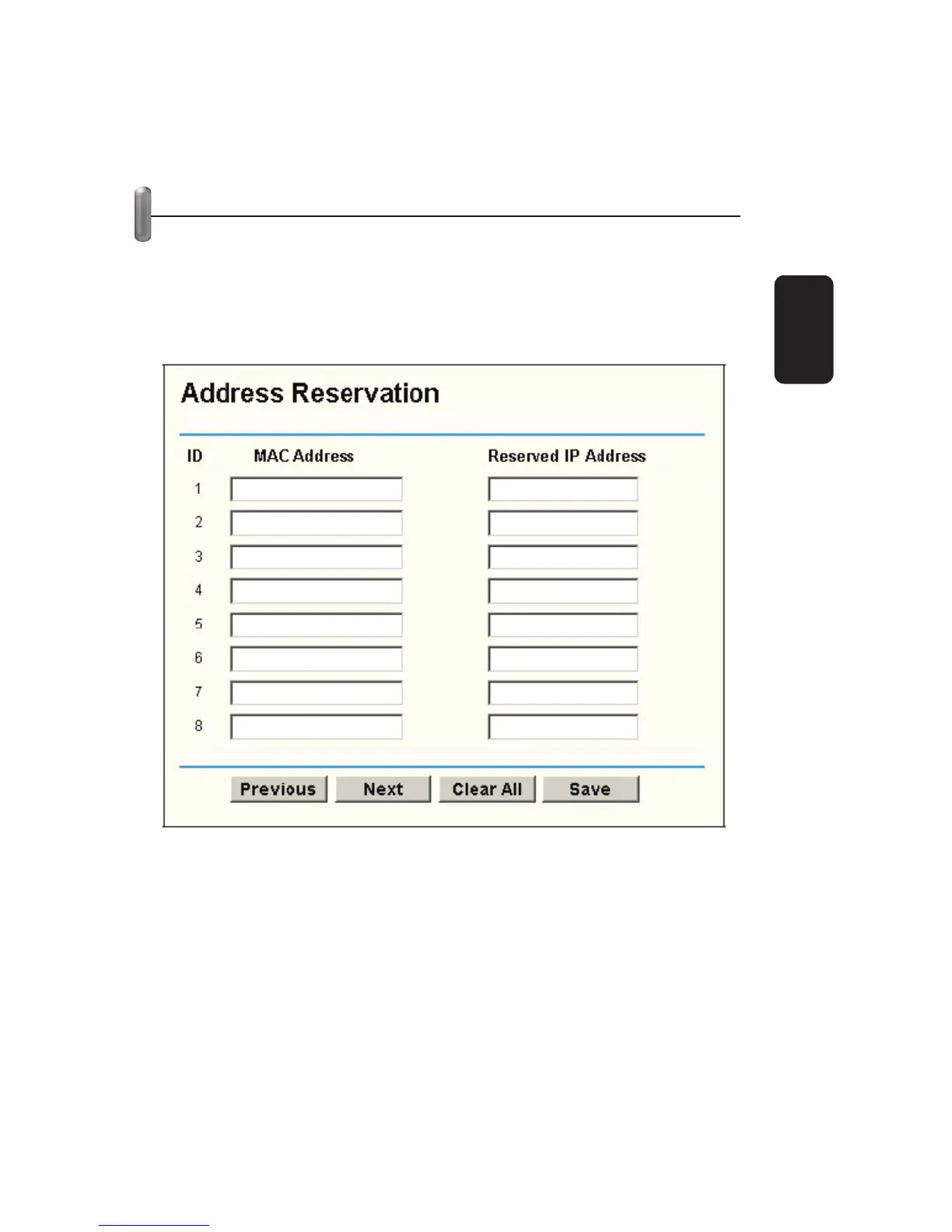

page is used for address reservation (shown in fi gure 34).
- MAC Address - The MAC address of the PC of which you want
to reserve IP address.
- Assigned IP Address - The IP address of the router reserved.
To Reserve IP addresses:
1. Enter the MAC address (The format for the MAC Address is
XX-XX-XX-XX-XX-XX.) and IP address in dotted-decimal
Fig. 34
ENGLISH
ENGLISH-41
