1. Power off your PC(s), Cable/DSL modem, and the router.
2. Locate an optimum location for the router. The best place
is usually near the center of the area in which your PC(s) will
wirelessly connect. The place must accord with the Installation
Environment Requirements.
3. Adjust the direction of the antenna. Normally, upright is a good
direction.
4. Connect the PC(s) and each Switch/Hub on your LAN to the
LAN Ports on the router, shown in fi gure 1.
5. Connect the DSL/Cable Modem to the WAN port on the router,
shown in fi gure 1.
6. Connect the AC power adapter to the AC power socket on the
router, and the other end into an electrical outlet. The router will
start to work automatically.
7. Power on your PC(s) and Cable/DSL modem.
ENGLISH
ENGLISH-6

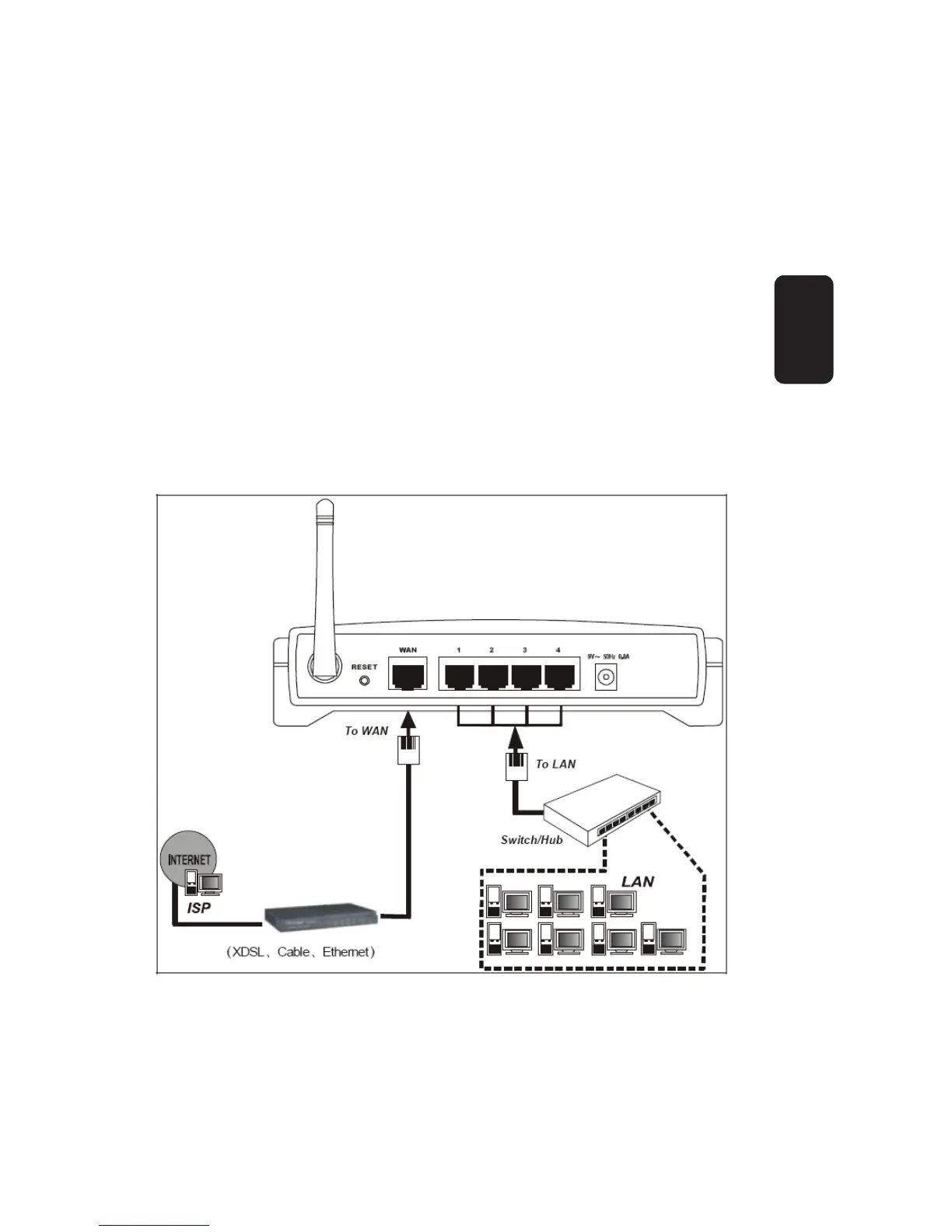

Fig. 1
