Fig.6.4
1

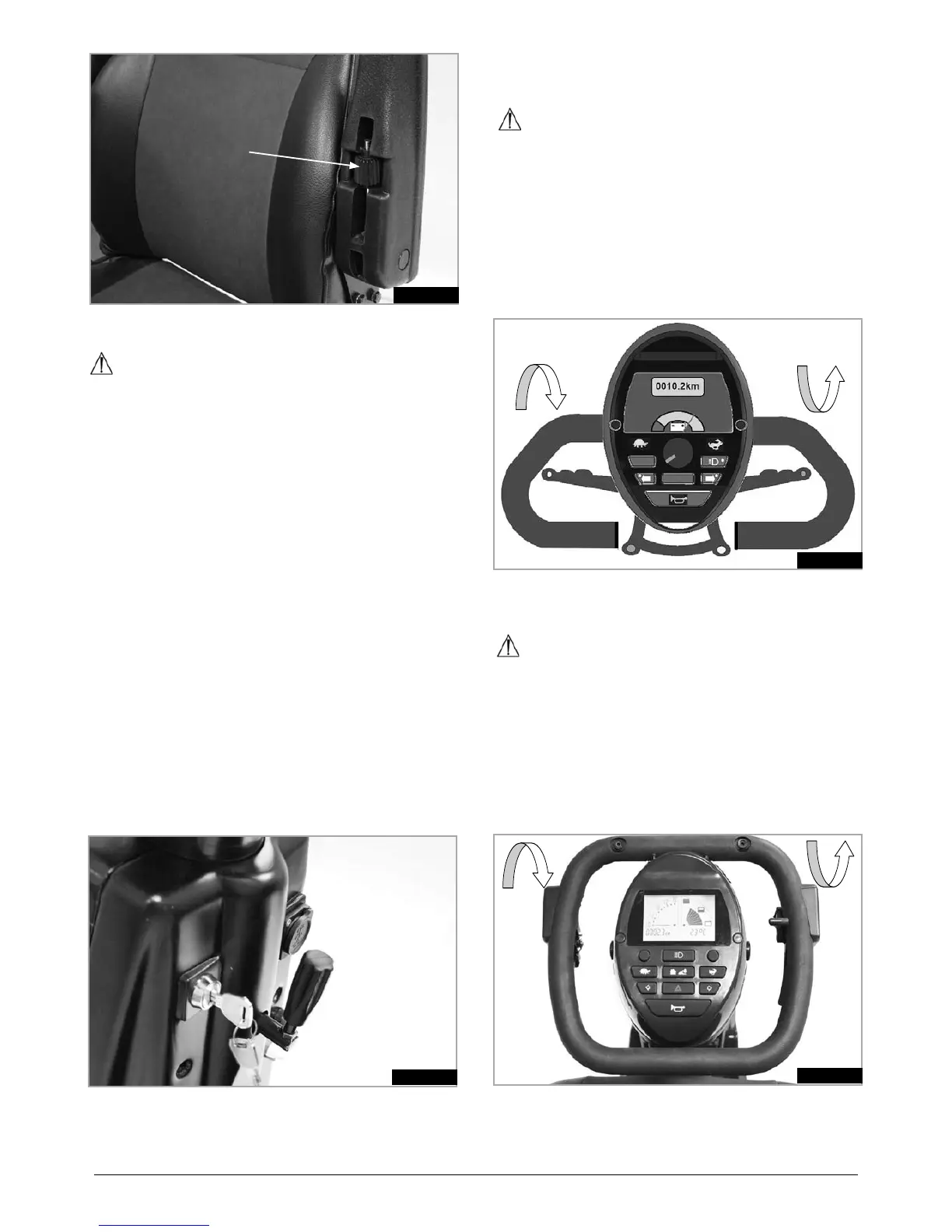

6.7 TILLER ADJUSTMENT FIG 6.5
DANGER!
Do not adjust the tiller while the scooter is being •
driven as serious injury could happen if you lose
control.
Do not use the tiller adjustment handle to hold or •
carry items such as bags etc.
Ensure fingers or other items are not around the area •
of the lower tiller when making adjustments. Serious
injury could happen due to entrapment.
The angle of the tiller can be adjusted for getting on and
off the scooter and for achieving a comfortable driving
position.
Rotate the lever clockwise. 1.
Hold the handlebar and push or pull the tiller to the 2.
required position.
The tiller contains a gas strut to aid in the adjustment of
the tiller position
Fig.6.5
6.8 ELITE
2
XS, RS DELTA HANDLEBAR
ADJUSTMENT
CAUTION!
The Elite
2
delta handlebar angle can be adjusted to suit
the users needs, (Fig 6.6). The handlebar is clamped
within the control system.
Your dealer or supplier can adjust the angle of the
handlebar if needed. Do not attempt adjustment of this
yourself. Damage to the control system of the scooter
could happen if unauthorized adjustment is carried out.
Fig.6.6
6.9 ELITE
2
PLUS HANDLEBAR ADJUSTMENT
CAUTION!
The Elite•
2
PLUS handlebar angle can be adjusted to
suit the users needs, (Fig 6.7). The handlebar is
clamped within the control system
Your dealer or supplier can adjust the angle of the •
handlebar if needed. Do not attempt adjustment of
this yourself. Damage to the control system of the
scooter could happen if unauthorized adjustment is
carried out.
Fig.6.7
