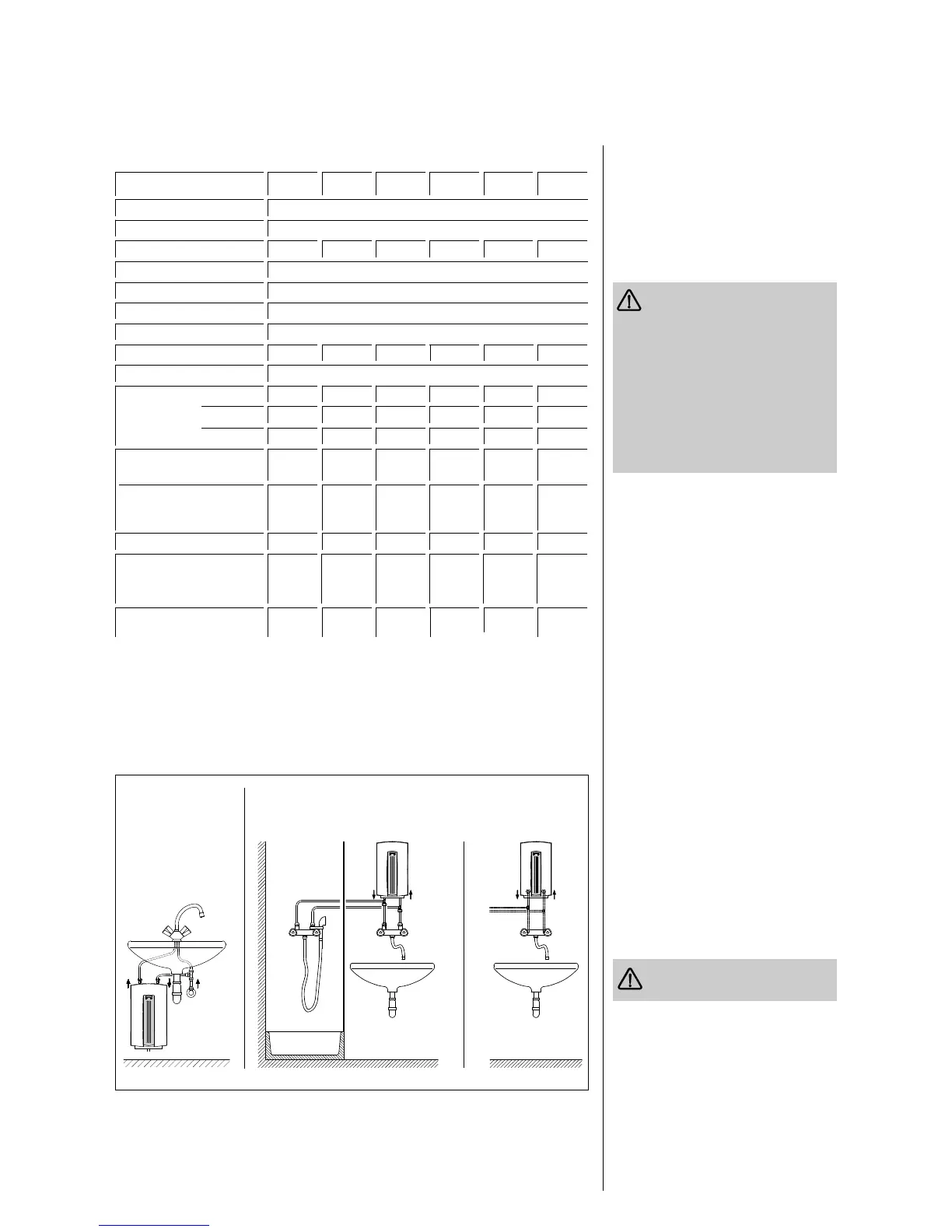

Technical data
DHC 3 U DHC 3, DHC 4, DHC 6, DHC 8
DHC 6 U
* External thread
● Suitable
Table 2
7051.01
Type DHC 3 U DHC 6 U DHC 3 DHC 4 DHC 6 DHC 8
Electrical connection 1/N/PE ~ 220 . . . 240 V
Design Unvented
Capacity l 0,5
Protection class as per VDE 1
Protection mode as per VDE IP 24
Weight kg 2,1 2,5 2,0 2,1 2,4 2,4
Rated overpressure bar 10
Test mark See unit rating plate
Water connection* G 3/8 G 3/8 G 1/2 G 1/2 G 1/2 G 1/2
Rated power 220 V kW 3,2 6,0 2,7 4,0 6,0 8,0
at 230 V kW 3,5 6,6 3,0 4,4 6,6 8,8
240 V kW 3,8 7,2 3,3 4,8 7,2 9,6
Under-sink installation for
supplying one draw-off point
●●−−−−
Switch-on flow pressure
Pressure loss bar 0,35 0,35 0,35 0,3 0,35 0,3
Suitable for cold water l/min > 1,2 > 2,3 > 1,2 > 1,4 > 2,3 > 2,9
Suitable for cold water
up to °C 25 25 30 20 30 25
Over-sink installation for
supplying one or two −−
●●●●
draw-off points
Switch-on volumes l/min 1,2 2,3 1,2 1,4 2,3 2,9
Brief description
The Stiebel Eltron DHC instantaneous
water heater is a hydraulically-controlled
pressure unit for heating cold water, with
which one or more water taps can be
supplied; see Table 2.
Installation location
The unit is suitable for the
preparation of hot water (potable
water supply), and is to be installed as
far as possible in unvented areas free of
the risk of freezing, as close as possible
to the water tap (dismantled units are to
be stored so as to be free of any risk of
freezing, since there will always be
residual water left in the unit).
The DHC unit is to be installed
vertically, in accordance with Fig. 4.
Under-sink: DHC 3 U and DHC 6 U
Over-sink: DHC 3, DHC 4, DHC 6
and DHC 8.
Regulations and provisions
– Regulations issued by local energy supply
companies.
– Regulations issued by the water supply
companies concerned.
Other data to be taken into
account:
– Currently-applicable data on the unit
rating plate.
– Technical data.
– Install the unit flush with the wall.
– Piped supplementary heating is not
permissible.
– Water installation material:
Cold water pipe:
Steel or copper
Hot water pipe:
Copper.
– Electrical connection to permanently-
installed leads (except for DHC 3 U with
connection lead).
– The unit must be capable of being
isolated from the mains supply, e.g. by
fuses, with a minimum isolation path of
3 mm.
The unit must be connected to the
safety earth terminal (see Fig. 14).
– Fittings for open units are not permitted.
– Safety valves are not required.
