OPERATION
Menu structure
www.stiebel-eltron.com WPF | WPF cool | 13

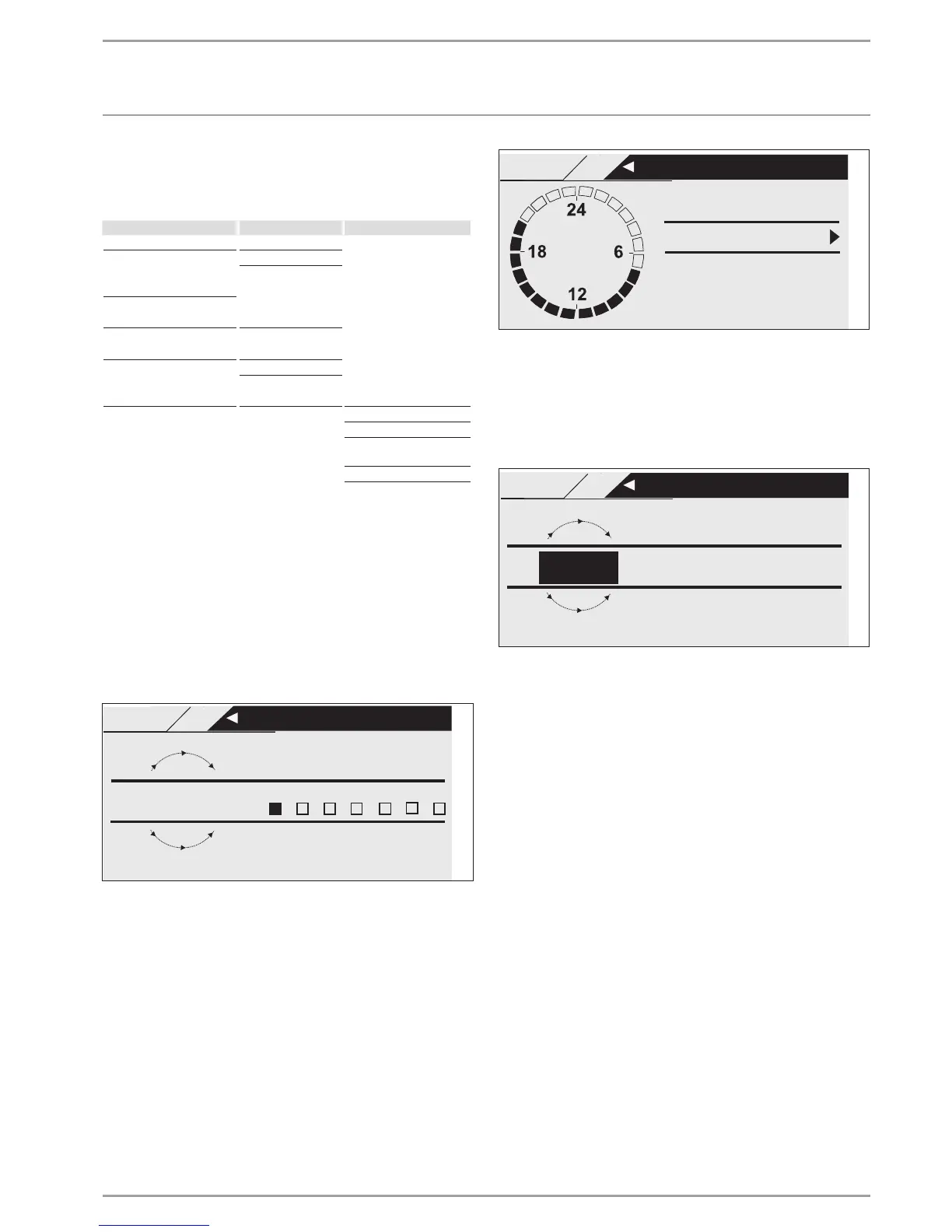

5.3 PROGRAMS menu
Here you can set all times for heating, DHW, holiday and party
modes and you can also start the heat-up program.
Level 2 Level 3 Level 4
HEATING PROGRAM HEAT CIRCUIT 1
HEAT CIRCUIT 2
DHW PROGRAM
PARTY PROGRAM HOURS
HOLIDAY PROGRAM HOLS BEGINNING
HOLIDAYS ENDING
HEAT-UP PROGRAM ON / OFF LOW END TEMPERATURE
TEMP. RISE PERIOD
MAXIMUM TEMPERATURE
MAX TEMPERATURE DU-
RATION
RISE PER DAY
5.3.1 Heating program
In the menu item HEATING PROGRAM you can determine when
and how often the appliance heats to the set comfort values for
heating circuit1 and heating circuit2. At all other times, the appli-
ance heats to the set ECO value. You can select the set values under
menu item SETTINGS/HEATING/HEATING CIRCUIT1 or SETTINGS/
HEATING/HEATING CIRCUIT2. There follows an explanation of how
to define a time program.
First, select the days on which you want to enable the HEATING
function:
+
-
26�04�01�0301
Monday
Mon
MAIN
PRO
HEAT
HEAT CIRCUIT 1
You can adjust your heating system as follows:
- For each individual day of the week (Monday - Sunday)
- Monday to Friday (Mo - Fr)
- Saturday and Sunday (Sa - Su)
- The whole week (Mo - Su)
Monday is initially offered.
 Turn the scroll wheel to select another day or group of days.
 Confirm your selection with OK.
You can now set three switching time pairs. The three switching
time pairs are shown on the display, to the right of the clock. A
switching times pair comprises the start time and end point at
which the appliance returns to its previous state.
07:00 - 20:00
- -:- - - - -:- -
- -:- - - - -:- -
26�04�01�0299
MONDAY
MAIN
PRO
HEAT
HEAT CIRCUIT 1
In this example, only one switching times pair has so far been
programmed. For switching times pairs 2 and 3, you can see short
dashes instead of times. These switching time pairs are still empty.
If you select one of the free switching time pairs with OK, you reach
the area where you can set the associated start and end times.
Press OK and the display shown below appears. Set the required
time with the scroll wheel.
END
- -:- -
- -:- -
H H
Start
26�04�01�0302
MAIN
PRO
HEAT
HEAT CIRCUIT 1
Times can be entered in intervals of 15 minutes. You can set 16:30
or 16:45, but not 16:37. Confirm your entry with OK.
Periods around midnight
Every Wednesday evening, heating mode should be enabled from
22:00 h for four hours. Thus the period does not expire until the
next day, Thursday, at 02:00 h. However, since the day ends at
00:00, two switching times are necessary for the required pro-
gram. First, program the period 22:00 to 00:00 h for Wednesday,
then 00:00 to 02:00 h for Thursday.
5.3.2 DHW program
In the menu item DHW PROGRAM you can determine the times
during which DHW heating with the set comfort value should take
place. At all other times, DHW is heated to the set ECO value. You
can select the set values under menu item SETTINGS/DHW/DHW
TEMPERATURES.
You can adjust your DHW heating as follows:
- For each individual day of the week (Monday - Sunday)
- Monday to Friday (Mo - Fr)
- Saturday and Sunday (Sa - Su)
- The whole week (Mo - Su)
You can set three switching time pairs for each of these options.
Exception: If you want to heat DHW from 22:00 h until 06:00 h the
following day you will need two switching time pairs.
