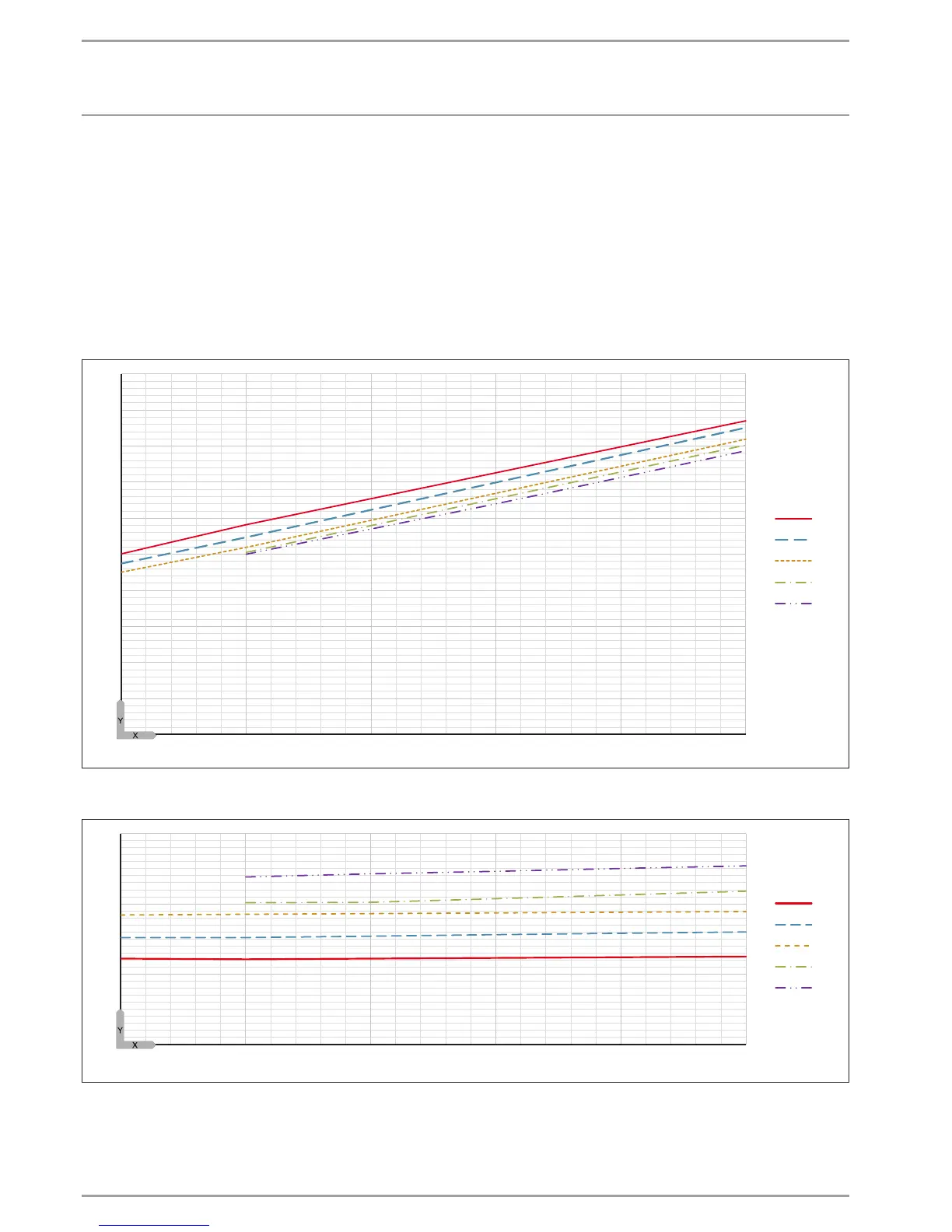

18.6 Output diagrams WPF 05 | WPF 05 cool
Key to output diagrams
Y Heating output [kW] / power consumption [kW] / coefficient of performance e [-]
X Inlet temperature of the WQA medium [°C]
1 Flow temperature 35 °C
2 Flow temperature 45 °C
3 Flow temperature 55 °C
4 Flow temperature 60 °C
5 Flow temperature 65 °C
Heating output
0
1
2
3
4
5
6
7
8
9
10
-5 0 5 10 15 20
1
2
3
4
5
D0000033166
Power consumption
0
1
2
3
-5 0 5 10 15 20
1
2
3
4
5
D0000033166
