WWW.STIEBEL-ELTRON.COM WPF 20/27/40/52/66 | 13

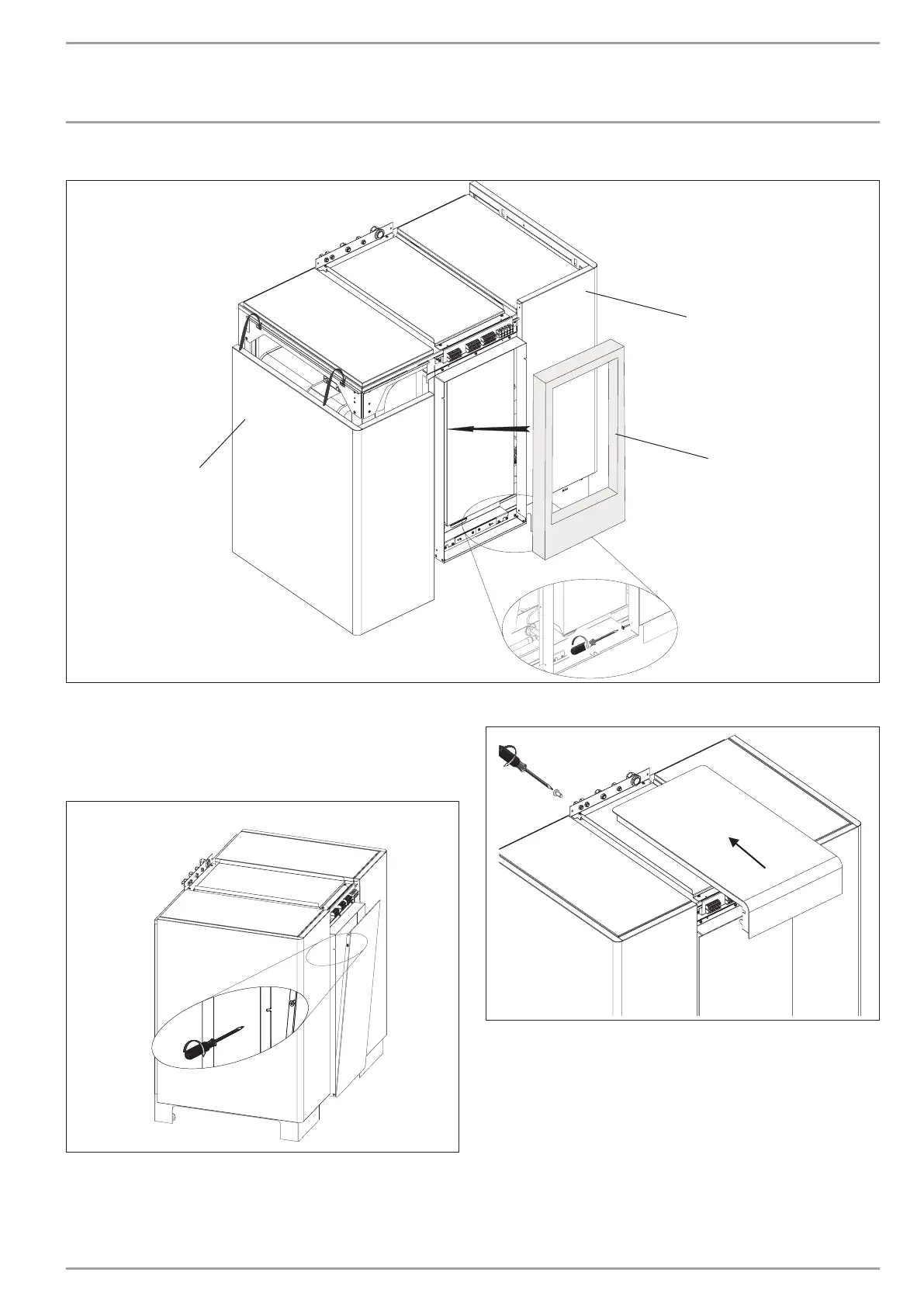

Fitting the side panels
1
1
C26�03�01�0793
2
f Hook the side panels 1 from the top into the slots and hooks
provided and secure with one screw each at the bottom of
the control panel frame.
f Install sound insulation 2 in the control panel frame
Fit front panel
C26�03�01�0795
f Hook the bottom of the front panel into the control panel
frame. pivot it towards the frame and secure with one screw
on each side.
Fit centre cover
C26�03�01�0794
f Position the cover at the front of the device and push it back;
then secure it with two screws.
f Make the power supply before the centre cover and front
panel are fitted.
10.6 Removing the casing parts
The casing parts are removed in reverse order.
INSTALLATION
INSTALLATION
