SPECIFICATION

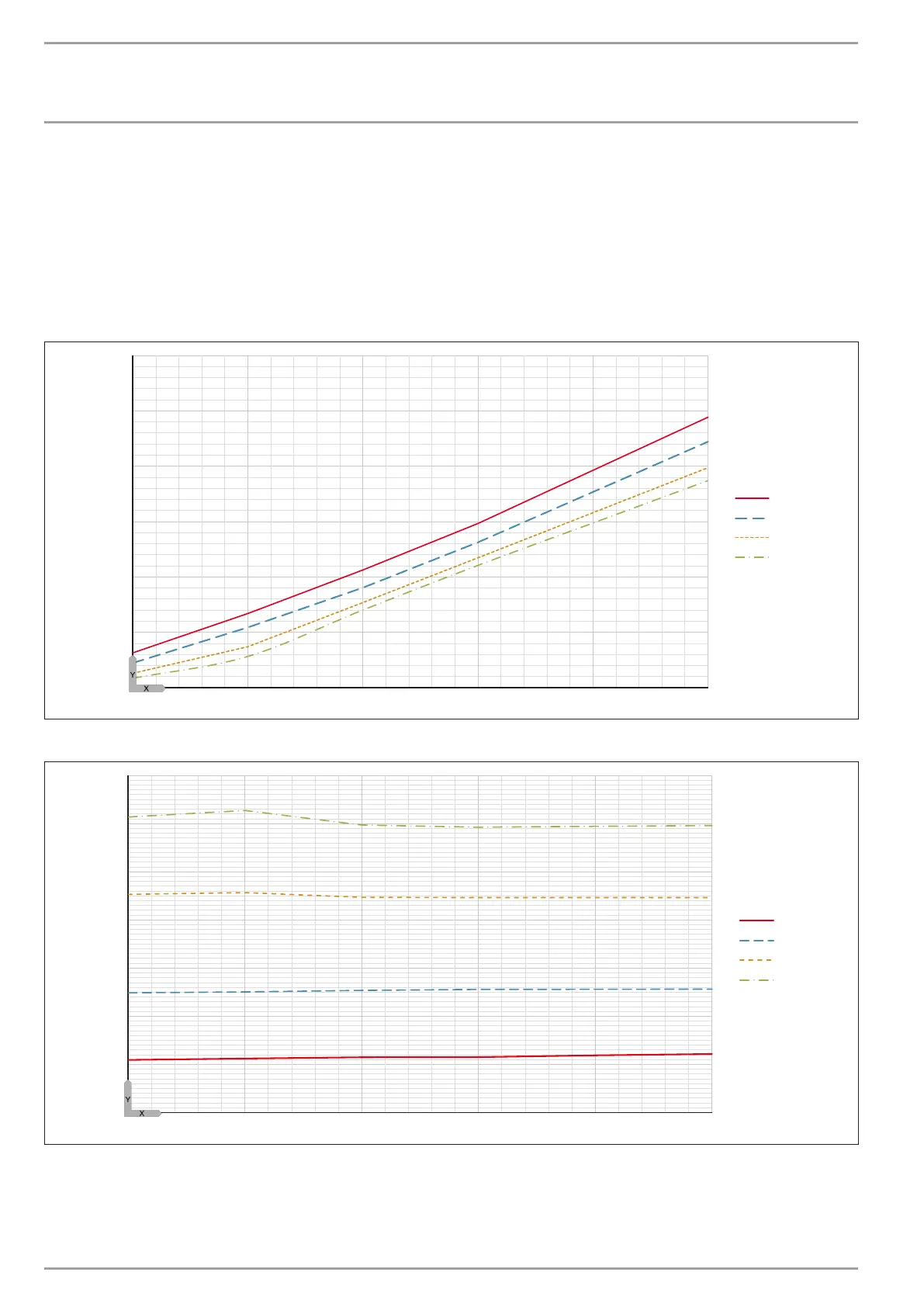

14.7 Output diagrams WPF 27
Key to output diagrams
Y Heating output [kW] / power consumption [kW] / coefficient of performance e [-]
X Inlet temperature of the WQA medium [°C]
1 Flow temperature 35 °C
2 Flow temperature 45 °C
3 Flow temperature 55 °C
4 Flow temperature 60 °C
Heating output
23
28
33
38
43
48
53
-5 0 5 10 15 20
1
2
3
4
D0000021913
Power consumption
5
6
7
8
9
10
11
12
-5 0 5 10 15 20
1
2
3
4
D0000021913
