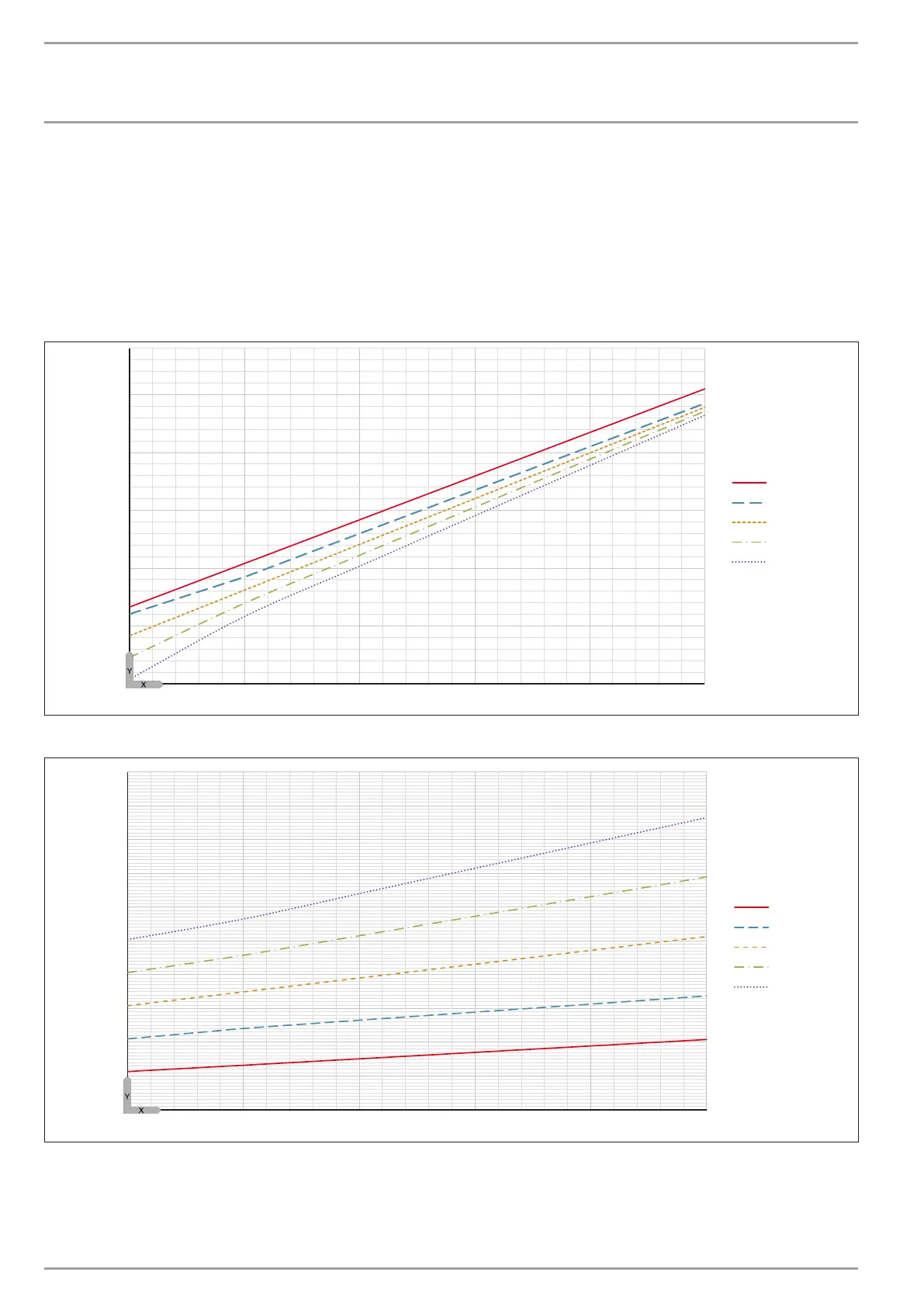

14.8 Output diagrams WPF 27 HT
Key to output diagrams
Y Heating output [kW] / power consumption [kW] / coefficient of performance e [-]
X Inlet temperature of the WQA medium [°C]
1 Flow temperature 35 °C
2 Flow temperature 45 °C
3 Flow temperature 55 °C
4 Flow temperature 60 °C
Heating output
17
22
27
32
37
42
-5 0 5 10 15 20
35
45
55
65
75
D0000021913
Power consumption
5
6
7
8
9
10
11
12
13
14
15
-5 0 5 10 15 20
35
45
55
65
75
D0000021913
