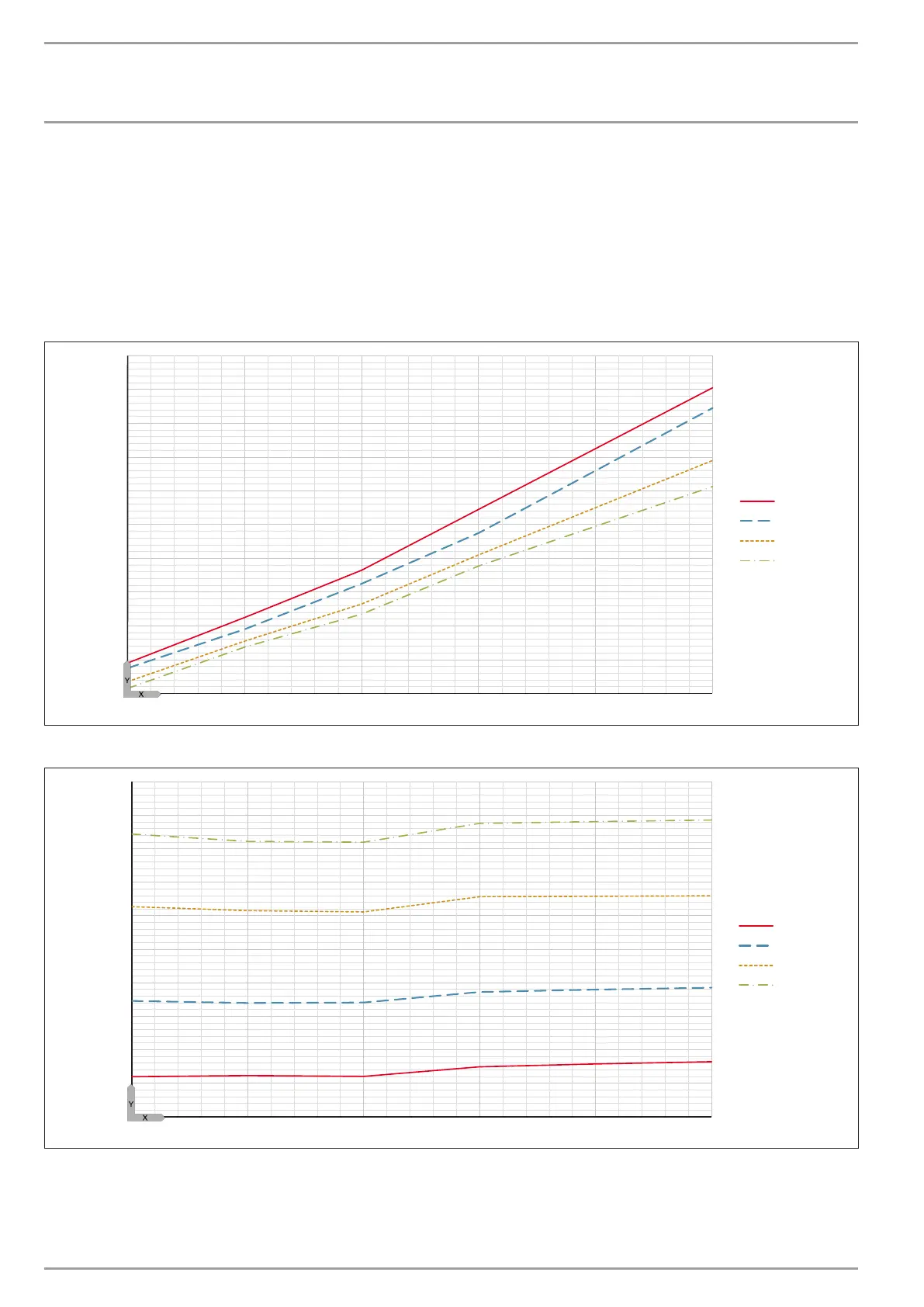

14.6 Output diagrams WPF 20
Key to output diagrams
Y Heating output [kW] / power consumption [kW] / coefficient of performance e [-]
X Inlet temperature of the WQA medium [°C]
1 Flow temperature 35 °C
2 Flow temperature 45 °C
3 Flow temperature 55 °C
4 Flow temperature 60 °C
Heating output
17
19
21
23
25
27
29
31
33
35
37
-5 0 5 10 15 20
1
2
3
4
D0000021913
Power consumption
4,0
4,5
5,0
5,5
6,0
6,5
7,0
7,5
8,0
8,5
9,0
-5 0 5 10 15 20
1
2
3
4
D0000021913
