8 | WPF 20/27/40/52/66 WWW.STIEBEL-ELTRON.COM
9. Standard delivery
Heat pumps are delivered in two shipping units.
Designation Part no.
Standard heat pump device
Casing parts 223384
9.1 Accessories
Designation Part no.
Heat pump manager with wall mounting enclosure. WPMW II 185450
Heat pump manager as control panel mounted version. WPMS II 185451
Mixer module with wall mounting enclosure. MSMW 074012
Mixer module as control panel mounted version. MSMS 074011
Cylinder SBP 700 E 185459
Cylinder SBP 700 E SOL 185460
Kit WPVB 227760
Heating system remote control FE 7 185579
Contact sensor AVF 6 165341
Immersion sensor TF 6 165342
Heat transfer medium (concentrate) (10 litre can) 231109
Heat transfer medium (concentrate) (30 litre can) 161696
10. Installation
10.1 Transport
To protect the equipment against damage. transport it vertically
inside its packaging. Storage and transport at temperatures below
– 20 °C and in excess of + 50 °C are not permissible.
In the top of the frame are four holes for fitting lifting eyes M 12
where the equipment can be lifted.
The casing parts are delivered in a separate package. and these
are fitted to the device at the place of installation.
10.2 Positioning
10.2.1 General
Level the device horizontally by adjusting the equipment feet.
To prevent the heat pump from being damaged by frost in case
of external installation. fit and electrically connect the contact
sensor AVF 6 into the heating return as frost protection. Electrical
connection and sensor installation. see chapter "Power supply".

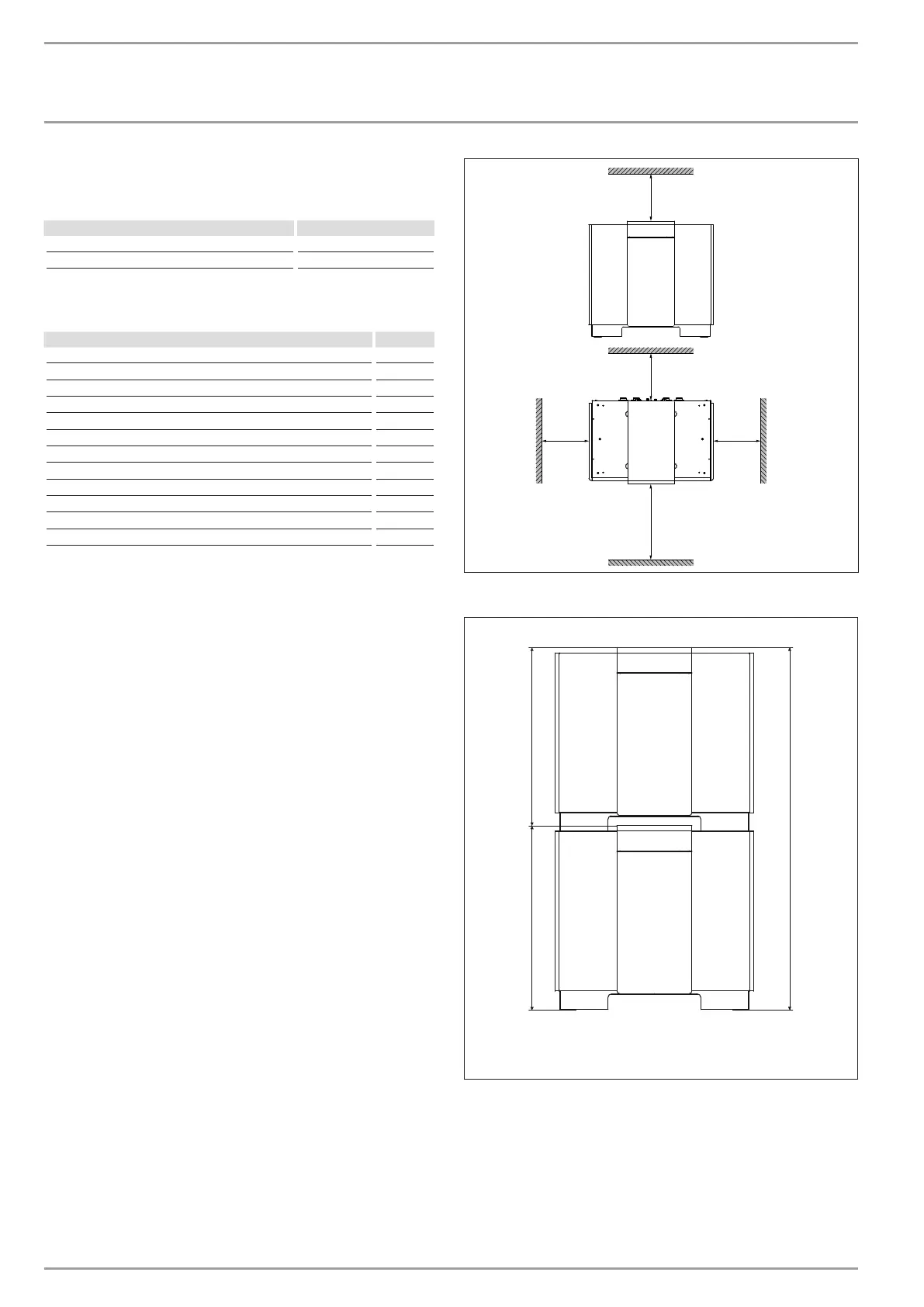

f Observe the minimum clearances.
≥500
≥500
≥500
≥500
≥1000
D0000019260
2 heat pumps may also be stacked.
f For this, use the WPVB joining set.
1154 1115
2269
D0000020355
