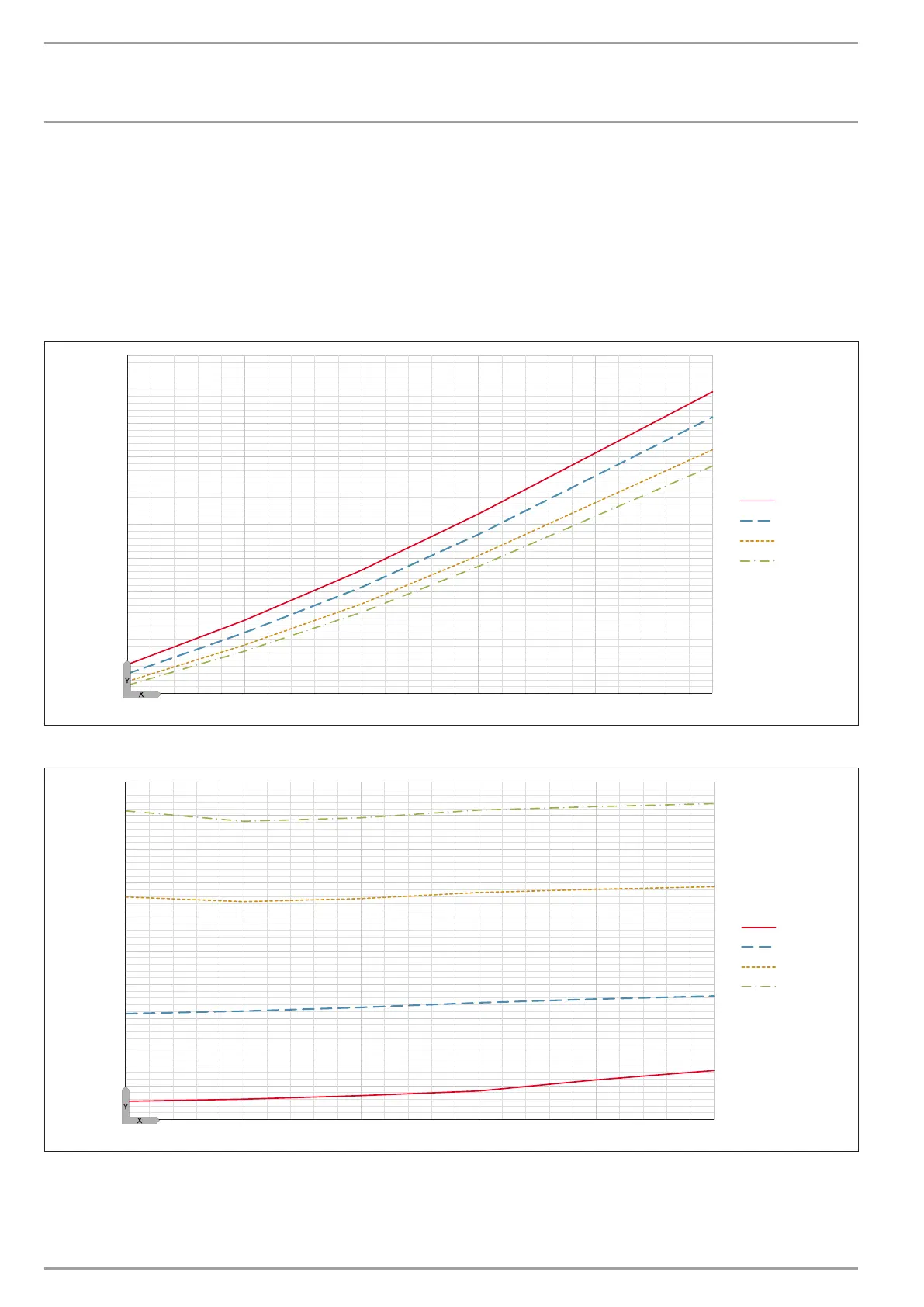

14.11 Output diagrams WPF 52
Key to output diagrams
Y Heating output [kW] / power consumption [kW] / coefficient of performance e [-]
X Inlet temperature of the WQA medium [°C]
1 Flow temperature 35 °C
2 Flow temperature 45 °C
3 Flow temperature 55 °C
4 Flow temperature 60 °C
Power consumption
45
50
55
60
65
70
75
80
85
90
95
-5 0 5 10 15 20
1
2
3
4
D0000021913
Leistungsaufnahme
11
12
13
14
15
16
17
18
19
20
21
-5 0 5 10 15 20
1
2
3
4
D0000021913
