Stihl FC 83 User Manual

15FC 83
english / USA

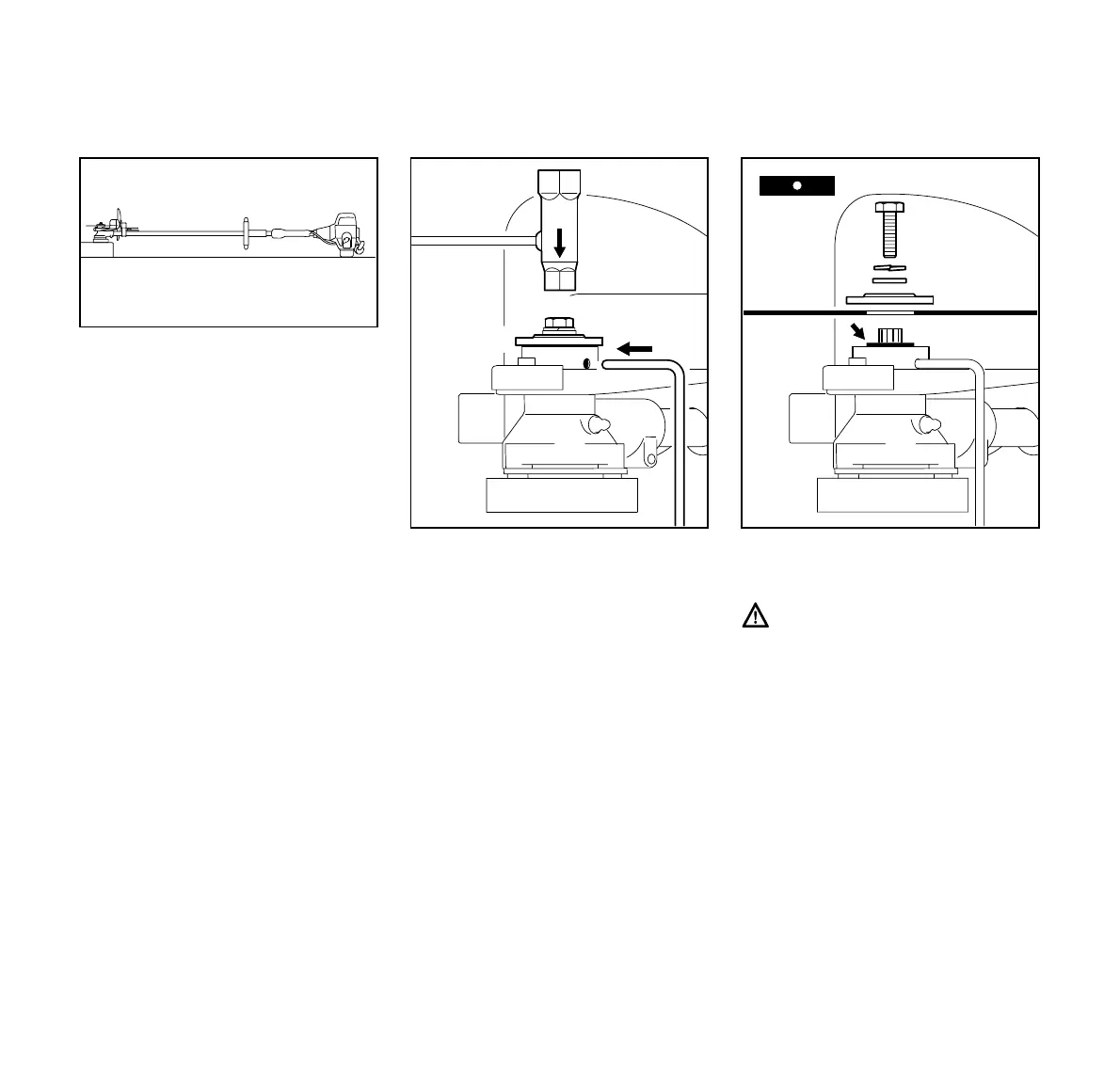

: Place the power edger on a
suitable support so that the blade
mounting (1) faces upwards.
: Insert the Allen wrench (2) as far as
possible in the bore (3) – push
lightly and rotate it back and forth
together with the thrust washer (4)
until the drive shaft is blocked.
: Apply combination wrench (5) to
screw (6).
: Loosen screw clockwise (left-hand
thread) and take it out.
: Remove retaining ring, plain washer
and thrust washer.
: Position blade (7) on the thrust
plate (8).
Collar (see arrow) must engage
hole in blade!
: Fit thrust washer (4) on the drive
shaft (9).
: Block the drive shaft.
: Insert screw (12) with plain washer
(10) and retaining ring (11) in shaft
counterclockwise and tighten down
firmly.
Fitting the Cutting Blade
1
245BA010 KN
6
3
245BA011 KN
2
4
5
8
4
7
245BA012 KN
9
10
11
12
7
