Stihl FC 83 User Manual

27FC 83
english / USA

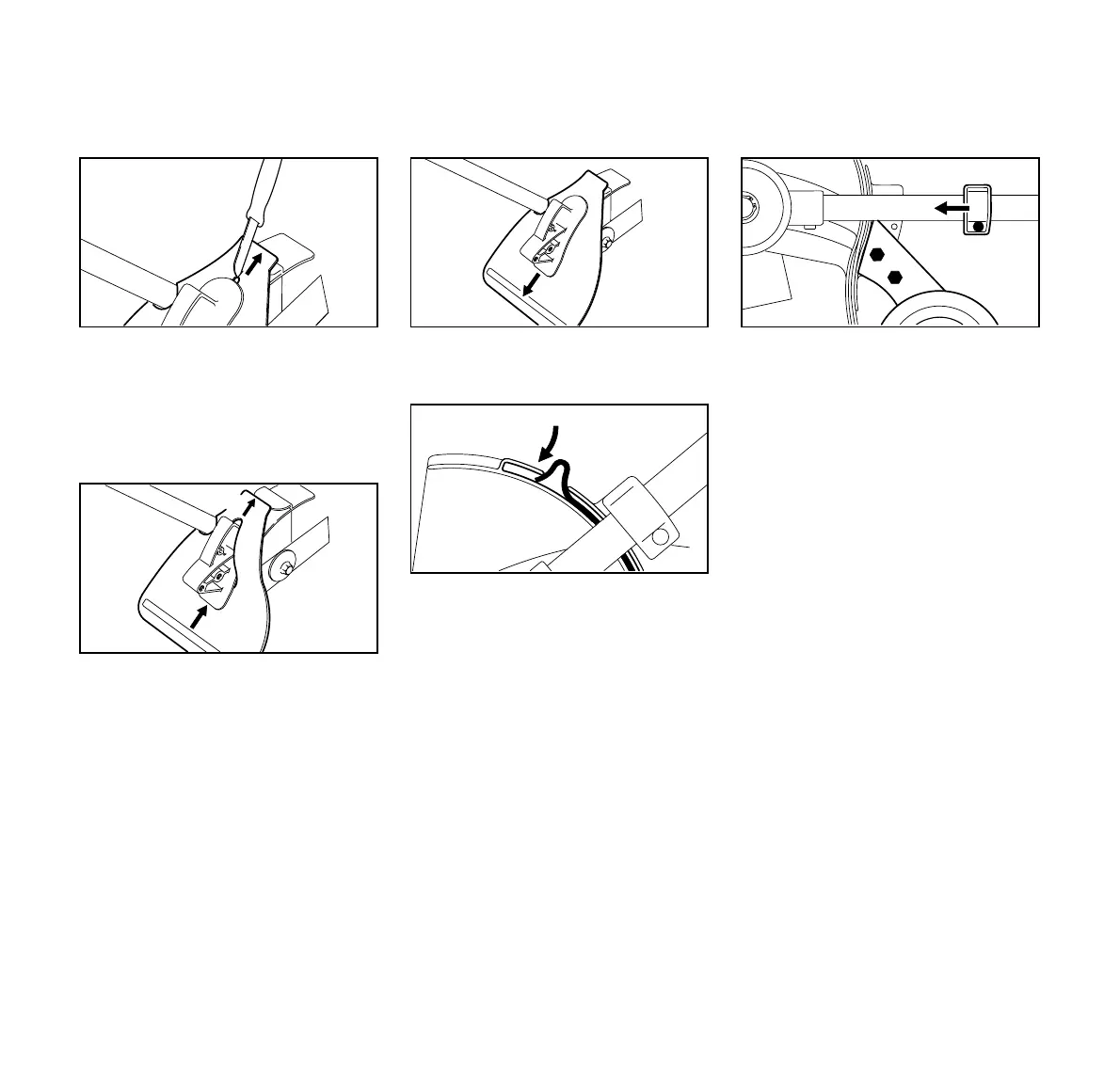

: Use a knife to cut through the skirt,
starting at the slot, and then remove
the skirt.
Fitting the skirt
: Starting from the bottom (a), fit the
skirt in the holder, push it up all the
way and pull it (b) over the edge of
the holder until it slips into position.
: Grip the skirt and pull it down firmly.
: Push the end (5) of the skirt under
the lip on the deflector.
: Secure arm (4) with screws (3),
tighten down firmly.
: Slide clamp (2) down drive tube in
direction of gearbox and tighten the
screw (1) firmly.
245BA022 KN
b
245BA023 KN
a
245BA024 KN
245BA025 KN
5
2
3
4
245BA026 KN
3
1
